Discrimination of Transgenic Rice Based on Near Infrared Reflectance Spectroscopy and Partial Least Squares Regression Discriminant Analysis

doi:10.1016/S1672-6308(14)60291-2

Abstract

Abstract:

Near infrared reflectance spectroscopy (NIRS), a non-destructive measurement technique, was combined with partial least squares regression discrimiant analysis (PLS-DA) to discriminate the transgenic (TCTP and mi166) and wild type (Zhonghua 11) rice. Furthermore, rice lines transformed with protein gene (OsTCTP) and regulation gene (Osmi166) were also discriminated by the NIRS method. The performances of PLS-DA in spectral ranges of 4 000-8 000 cm^-1 and 4 000-10 000 cm^-1 were compared to obtain the optimal spectral range. As a result, the transgenic and wild type rice were distinguished from each other in the range of 4 000-10 000 cm^-1, and the correct classification rate was 100.0% in the validation test. The transgenic rice TCTP and mi166 were also distinguished from each other in the range of 4 000-10 000 cm^-1, and the correct classification rate was also 100.0%. In conclusion, NIRS combined with PLS-DA can be used for the discrimination of transgenic rice.

Key words: near infrared reflectance spectroscopy, genetically-modified food, regulation gene, protein gene, partial least squares regression discrimiant analysis

Long Zhang, Shan-shan Wang, Yan-fei Ding, Jia-rong Pan, Cheng Zhu. Discrimination of Transgenic Rice Based on Near Infrared Reflectance Spectroscopy and Partial Least Squares Regression Discriminant Analysis[J]. Rice Science, 2015, 22(5): 245-249.

Figures/Tables 7

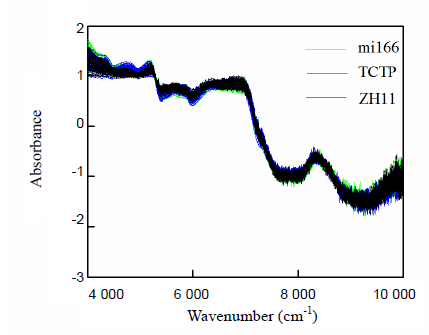

Fig. 1. Standard normal variance pretreated spectra of rice grains.（ZH11, Zhonghua 11.）

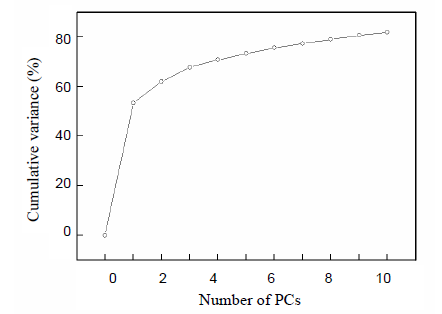

Fig. 2. Variation explained by principal component (PC) in principal component analysis.

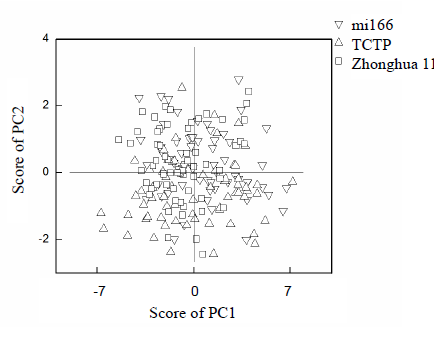

Fig. 3. Plots of the first and second principal components (PCs).

Table 1 Effects of different wavenumber range on classification results of partial least squares regression discrimiant analysis models between transgenic and wild type rice.

Wavenumber	Calibration					Validation
(cm^-1)	No. of PCs	RMSEC	r²_c	CR_c(%)		No. of PCs	RMSEV	r²_v	CR_v (%)
4 000-8 000	5	0.3555	0.8578	100	5		0.3543	0.8344	100
4 000-10 000	6	0.2695	0.9183	100	6		0.2878	0.8979	100

Table 2 Effects of different wavenumber range on classification results of partial least squares regression discrimiant analysis models between tctp and mi166.

Wavenumber	Calibration					Validation
(cm^-1)	No. of PCs	RMSEC	r²_c	CR_c(%)		No. of PCs	RMSEV	r²_v	CR_v (%)
4 000-8 000	5	0.3659	0.8661	97.5	5		0.3799	0.8123	98.3
4 000-10 000	5	0.2945	0.9133	97.5	5		0.3873	0.7537	100

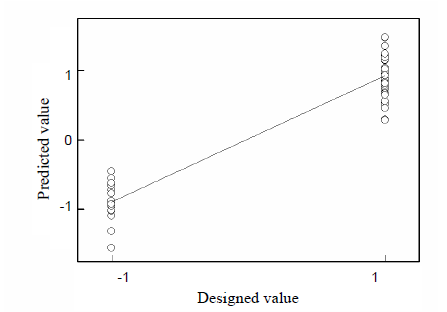

Fig. 4. Regression plot of designed and prediction category variables of transgenic (TCTP and mi166) and wild type (Zhonghua 11) rice.

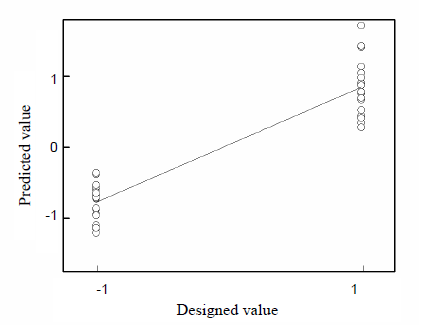

Fig. 5. Regression plot of reference and prediction category variables of TCTP and mi166.

References 32

[1]	Ahmed F E.2000. Molecular markers for early cancer detection.J Environ Sci Health Part C, 18(2): 75-125.
[2]	Akiyama H, Sasaki N, Sakata K, Ohmori K, Toyota A, Kikuchi Y, Watanabe T, Furui S, Kitta K, Maitani T.2007. Indicated detection of two unapproved transgenic rice lines contaminating vermicelli products. J Agric Food Chem, 55(15): 5942-5947.
[3]	Alishahi A, Farahmand H, Prieto N, Cozzolino D.2010. Identification of transgenic foods using NIR spectroscopy: A review.Spectrochimica Acta Part A, 75: 1-7.
[4]	Anklam E, Gadani F, Heinze P, Pijnenburg H, van den Eede G.2002. Analytical methods for detection and determination of genetically modified organisms in agricultural crops and plant-derived food products.Eur Food Res Technol, 214: 3-26.
[5]	Broomhead D S, Lowe D.1988. Multi-variable functional interpolation and adaptive networks.Comp Syst, 2(3): 269-303.
[6]	Campbell M R, Sykes J, Glover D V.2000. Classification of single and double-mutant corn endosperm genotypes by near-infrared transmittance spectroscopy. Cereal Chem, 77: 774-778.
[7]	Ding Y F, Chen Z, Zhu C.2011. Microarray-based analysis of cadmium-responsive microRNAs in rice (Oryza sativa).J Exp Bot, 62(10): 3563-3573.
[8]	Fagan J, Schoel B, Haegert A, Moore J, Beeby J.2001. Performance assessment under field conditions of a rapid immunological test for transgenic soybeans. Int J Food Sci Technol, 36: 1-11.
[9]	Grohmann L, Mäde D.2009. Detection of genetically modified rice: Collaborative validation study of a construct-specific real-time PCR method for detection of transgenic Bt rice.Eur Food Res Technol, 228(3): 497-500.
[10]	Heid C A, Stevens J, Livak K J, Williams P M.1996. Real-time quantitative PCR.Genome Res, 6: 986-994.
[11]	Hurburgh C R, Rippke G R, Heithoff C, Roussel S A, Hardy C L.2000. Detection of genetically modified grains by near-infrared spectroscopy. In: Proceedings PITTCON 2000: Science for the 21st Century. 12-17 March, New Orleans, USA: 1431.
[12]	Jiao Z, Si X X, Li G K, Zhang Z M, Xu X P.2010. Unintended compositional changes in transgenic rice seeds (Oryza sativa L.) studied by spectral and chromatographic analysis coupled with chemometrics methods.J Agric Food Chem, 58(3): 1746-1754.
[13]	Kleinbaum D, Kupper L, Muller K1988. Applied Regression Analysis and Other Multivariate Methods. 2nd edn. PWS-Kent, Boston: 657-662.
[14]	Lipp M, Brodmann P, Pietsch K, Pauwels J, Anklam E, Börchers T, Braunschweiger G, Busch U, Eklund E, Eriksen F D.1999. IUPAC collaborative trial study of a method to detect genetically modified soybeans and maize in dried powder.J AOAC Int, 82: 923-928.
[15]	Lipton C R, Dautlick J X, Grothaus G D, Hunst P L, Magin K M, Mihaliak C A, Rubio F M, Stave J W.2000. Guidelines for the validation and use of immunoassays for determining of introduced proteins in biotechnology enhanced crops and derived food ingredients.Food Agric Immunol, 12: 153-164.
[16]	Mäde D, Degner C, Grohmann L.2006. Detection of genetically modified rice: A construct-specific real-time PCR method based on DNA sequences from transgenic Bt rice.Eur Food Res Technol, 224(2): 271-278.
[17]	Marengo E, Robotti E, Bobba M, Milli A, Campostrini N, Righetti S C, Cecconi D, Righetti P G.2008. Application of partial least squares discriminant analysis and variable selection procedures: A 2D-PAGE proteomic study.Anal Bioanal Chem, 390: 1327-1342.
[18]	Margarit E, Reggiardo M I, Vallejos R H, Permingeat H R.2006. Detection of BT transgenic maize in foodstuffs.Food Res Int, 39: 250-255.
[19]	Miraglia M, Berdal K G, Brera C, Corbisier P, Holst-Jensen A, Kok E J, Marvin H J, Schimmel H, Rentsch J, van Rie J P, Zagon J.2004. Detection and traceability of genetically modified organisms in the food production chain. Food Chem Toxicol, 42: 1157-1180.
[20]	Munck L, Pram Nielsen J, Møller B, Jacobsen S, Søndergaard I, Engelsen S B, Nørgaard L, Bro R.2001. Exploring the phenotypic expression of a regulatory proteome-altering gene by spectroscopy and chemometrics.Anal Chim Acta, 446: 171-186.
[21]	Munck L, Møller B, Jacobsen S, Søndergaard S.2004. Near infrared spectra indicate specific mutant endosperm genes and reveal a new mechanism for substituting starch with (1/3, 1/4)-γ-glucan in barley. J Cereal Sci, 40: 213-222.
[22]	Ross R, Ross X L, Rueger B, Laengin T, Reske-Kunz A B.1999. Nonradioactive detection of differentially expressed genes using complex RNA or DNA hybridization probes.Biotechnology, 26: 150-155.
[23]	Rossel S A, Hardy C L, Hurburgh C R, Rippke G R.2001. Application of near-infrared diffuse reflectance spectroscopy to the detection and identification of transgenic corn.Appl Spectr, 55: 1425-1432.
[24]	Sambrook J, Russel D.2000. Molecular Cloning: A Laboratory Manual. 3rd edn. New York: Cold Spring Harbor Laboratory Press.
[25]	Singh C K, Ojha A, Kachru D N.2007. Detection and characterization of cry1Ac transgene construct in Bt cotton: Multiple polymerase chain reaction approach. J AOAC Int, 90(6): 1517-1725.
[26]	Stull D.2001. A feat of fluorescence.Scientist, 15: 20-21.
[27]	van Duijn G J, van Biert R, Bleeker-Marcelis H, van Boeijen I, Adan A J, Jhakrie S, Hessing M.2002. Detection of genetically modified organisms in foods by protein- and DNA-based techniques: Bridging the methods.J AOAC Int, 85(3): 787-791.
[28]	van Hoef A M A, Kok E J, Bouw E, Kuiper H A, Keijer J.1998. Development and application of a selective detection method for genetically modified soy and soy-derived products.Food Addit Contam, 15(7): 767-774.
[29]	Wang F J.2010. Comparative Proteomic Study and Functional Analysis of Tolerance-Related Genes from Rice Roots During Hg2+ Stress. Hangzhou: Zhejiang University. (in Chinese with English abstract)
[30]	Xie L J, Ying Y B, Ying T J.2007a. Combination and comparison of chemometrics methods for identification of transgenic tomatoes using visible and near-infrared diffuse transmittance technique. J Food Engin, 82: 395-401.
[31]	Xie L J, Ying Y B, Ying T J, Yu H Y, Fu X P.2007b. Distrimination of transgenic tomatoes based on visible/near-infrared spectra.Anal Chim Acta, 584(2): 379-384.
[32]	Yates K.1999. Detection Methods for Novel Foods Derived from Genetically Modified Organisms. ILSI, Europe: 339-349.
