Fusarium solani Upregulated Sesquiterpene Synthase Expression, Sesquiterpene Production and Allelopathic Activity in Piper betle

doi:10.1016/j.rsci.2019.08.003

Abstract

Abstract:

Activators of sesquiterpene synthase (STS) gene expression and sesquiterpene production in Piper betle L. were examined using quantitative real time PCR and gas chromatography mass spectrometry methods, and the allelopathic activity of untreated and Fusarium solani-treated betel extracts was tested on seed germination and on the shoot and root growth of Thai rice variety PSL2 (Oryza sativa cv. Phitsanulok 2) and three dominant paddy weeds (Eclipta prostrata, Echinochloa crus-galli and Chloris barbata). The results demonstrated that F. solani dramatically upregulated STS expression and productions of β-cubebene, β-caryophyllene and germacrene D sesquiterpene when compared with the untreated control, and that betel extracts had a greater inhibitory effect on weeds than on rice. The effects were more clearly detected on seed germination and root growth than on shoot growth, and they were found to be dose-dependent. It is also noted that F. solani-treated extract had stronger effects than the untreated extract. The species most sensitive to the allelopathic effects was C. barbata, germination of which was completely inhibited even at a dose of 0.1 mg/mL untreated extract. With regards to rice, although betel extract at 1.0 mg/mL showed no inhibition on germination, it affected the elongation of rice roots, in addition to those of the tested weeds. The obtained data suggested that F. solani has potential as an activator of sesquiterpene allelochemical production via STS expression, the latter leading to the treated betel extract having a stronger phytotoxic effect. These results were beneficial in the promotion of natural herbicide production using biotechnology.

Key words: Piper betle L., paddy weed, Fusarium solani, sesquiterpene synthase, allelopathic activity

Woranoot Kamrai, Buaruang Rattikarn, Aranyakanon Kodchakorn, Ratanasut Kumrop, Kongbangkerd Anupan, Jannoey Panatda, Nangngam Pranee, Choopayak Chonnanit. Fusarium solani Upregulated Sesquiterpene Synthase Expression, Sesquiterpene Production and Allelopathic Activity in Piper betle[J]. Rice Science, 2019, 26(5): 290-299.

Figures/Tables 6

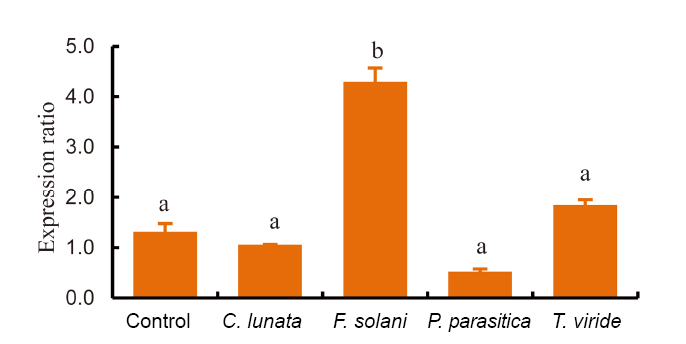

Fig. 1. Expression analysis by quantitative real-time PCR of STS in P. betle tissue culture following Fungi infection. Bars are SE (n = 3), and the lowercase letters indicate significant difference at the 0.05 level.

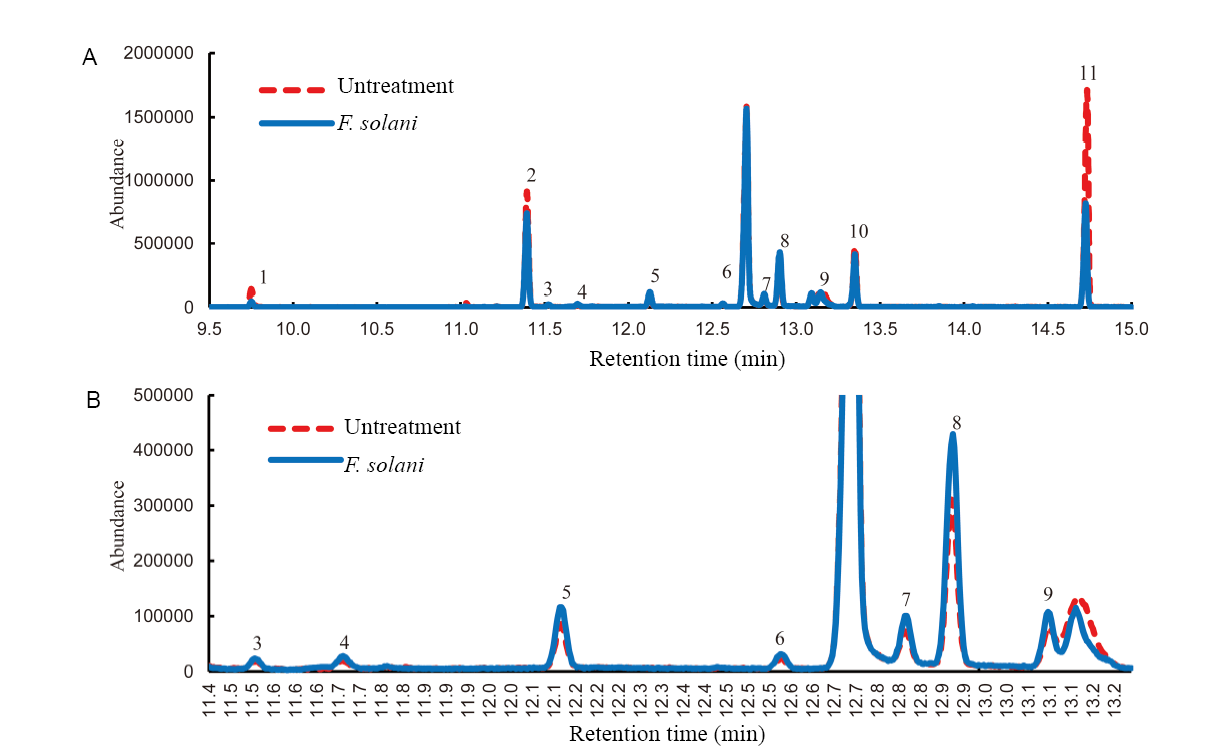

Fig. 2. Volatile organic compounds (VOCs) obtained from P. betle tissue culture after 3 d of F. solani treatment by gas chromatography-mass spectrometry. A shows VOCs, including phenylpropanoids and sesquiterpenes, while B shows only sesquiterpene peaks for retention time of 11.4 to13.2 min.

Table 1 Volatile organic compounds in untreated and F. solani-treated leaf tissue culture extracts.

Peak	Retention time (min)	Compound	Property	Relative area (%)		Fold change ^a
Peak	Retention time (min)	Compound	Property	Untreatment	Treatment	Fold change ^a
1	9.75	Chavicol	Phenylpropanoid	1.39	0.93	1.5
2	11.39	Isoeugenol	Phenylpropanoid	8.6	15.25	1.8
3	11.53	α-copaene	Sesquiterpene	0.18	0.51	2.8
4	11.7	β-cubebene	Sesquiterpene	0.21	0.79	3.8
5	12.13	β-caryophyllene	Sesquiterpene	0.78	2.41	3.1
6	12.56	α-humulene	Sesquiterpene	0.21	0.58	2.8
7	12.81	α-amorphene	Sesquiterpene	0.89	2.5	2.8
8	12.9	Germacrene D	Sesquiterpene	3.31	9.46	2.9
9	13.09	Bicyclogermacrene	Sesquiterpene	0.9	2.41	2.7
10	13.35	Eugenol acetate	Phenylpropanoid	4.5	7.94	1.8
11	14.73	Allylpyrocatechol-3,4-diacetate	Phenylpropanoid	17.43	14.73	1.2

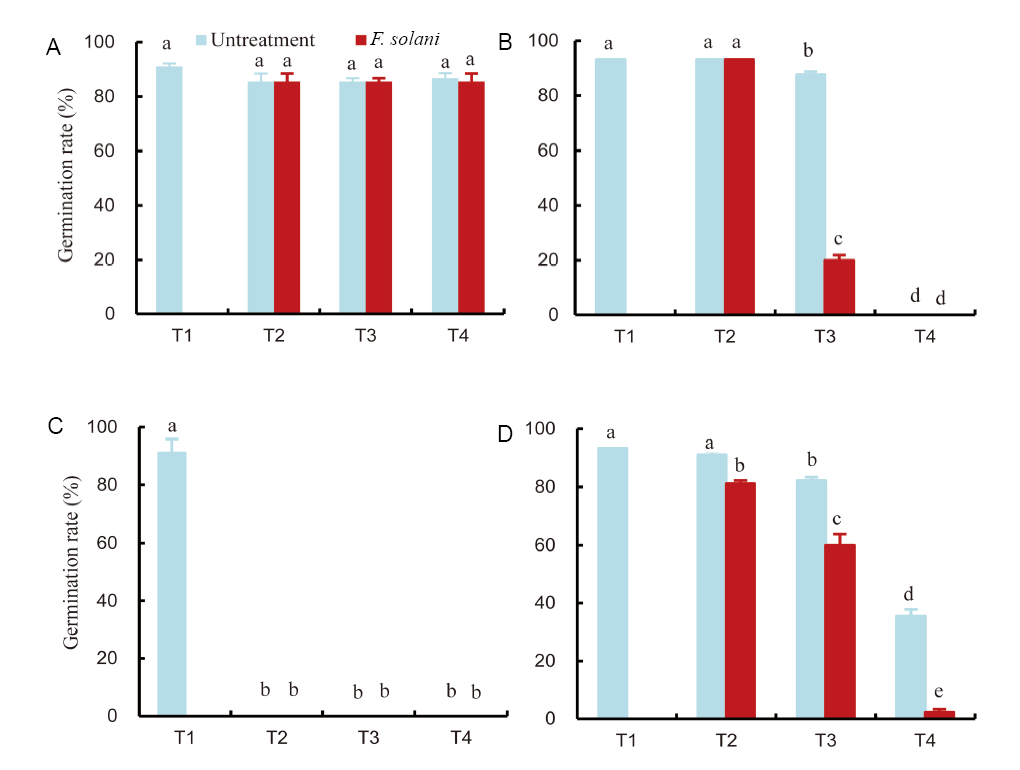

Fig. 3. Effects of F. solani-treated extracts of P. betle on the germination of O. sativa (A), E. prostrata (B), C. barbata (C) and E. crus-galli (D). T1, 0.5% Tween 80 (control); T2, 0.1 mg/mL ethyl acetate extracts; T3, 0.5 mg/mL ethyl acetate extracts; T4, 1.0 mg/mL ethyl acetate extracts.

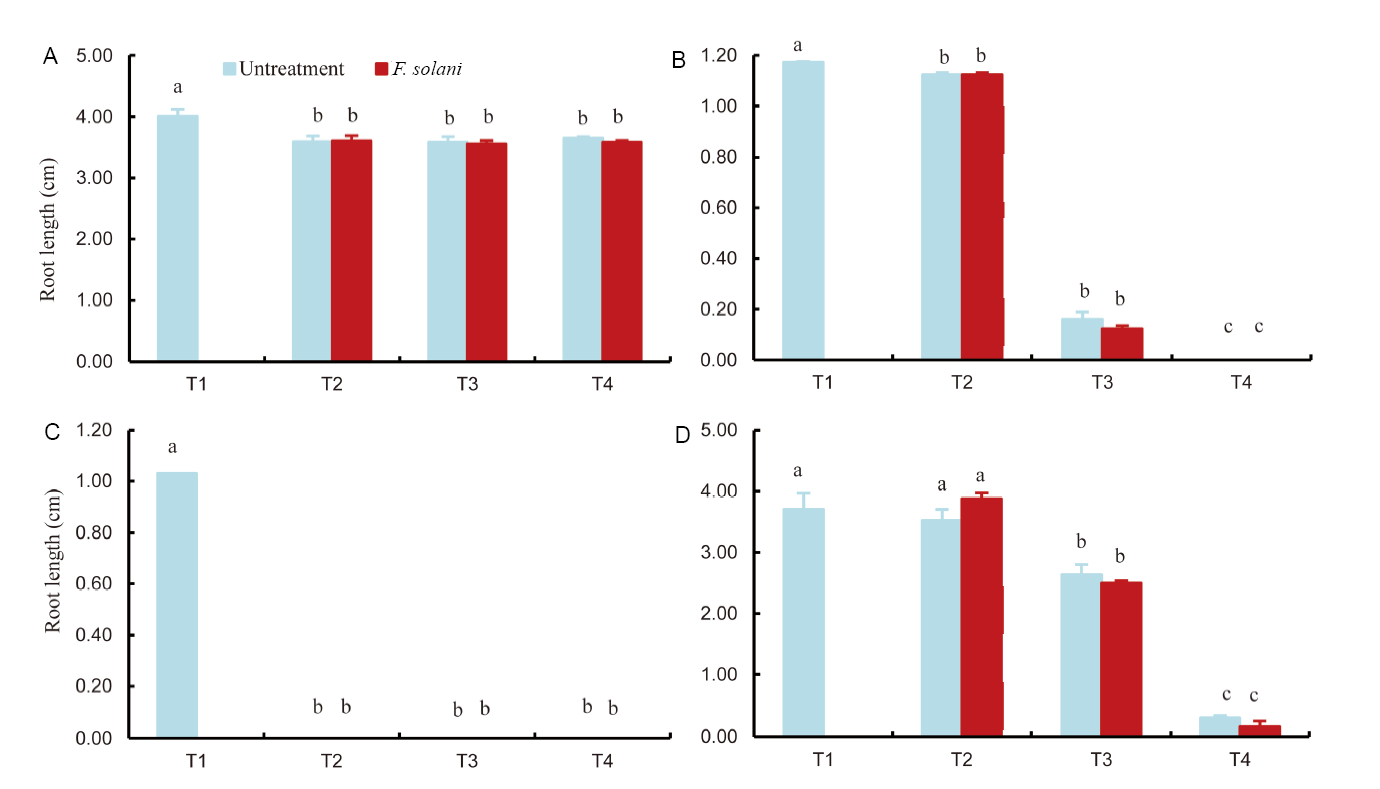

Fig. 4. Effects of untreated and F. solani-treated extracts of P. betle on the root length of O. sativa (A), E. prostrata (B), C. barbata (C) and E. crus-galli (D). T1, 0.5% Tween 80 (control); T2, 0.1 mg/mL ethyl acetate extracts; T3, 0.5 mg/mL ethyl acetate extracts; T4, 1.0 mg/mL ethyl acetate extracts.

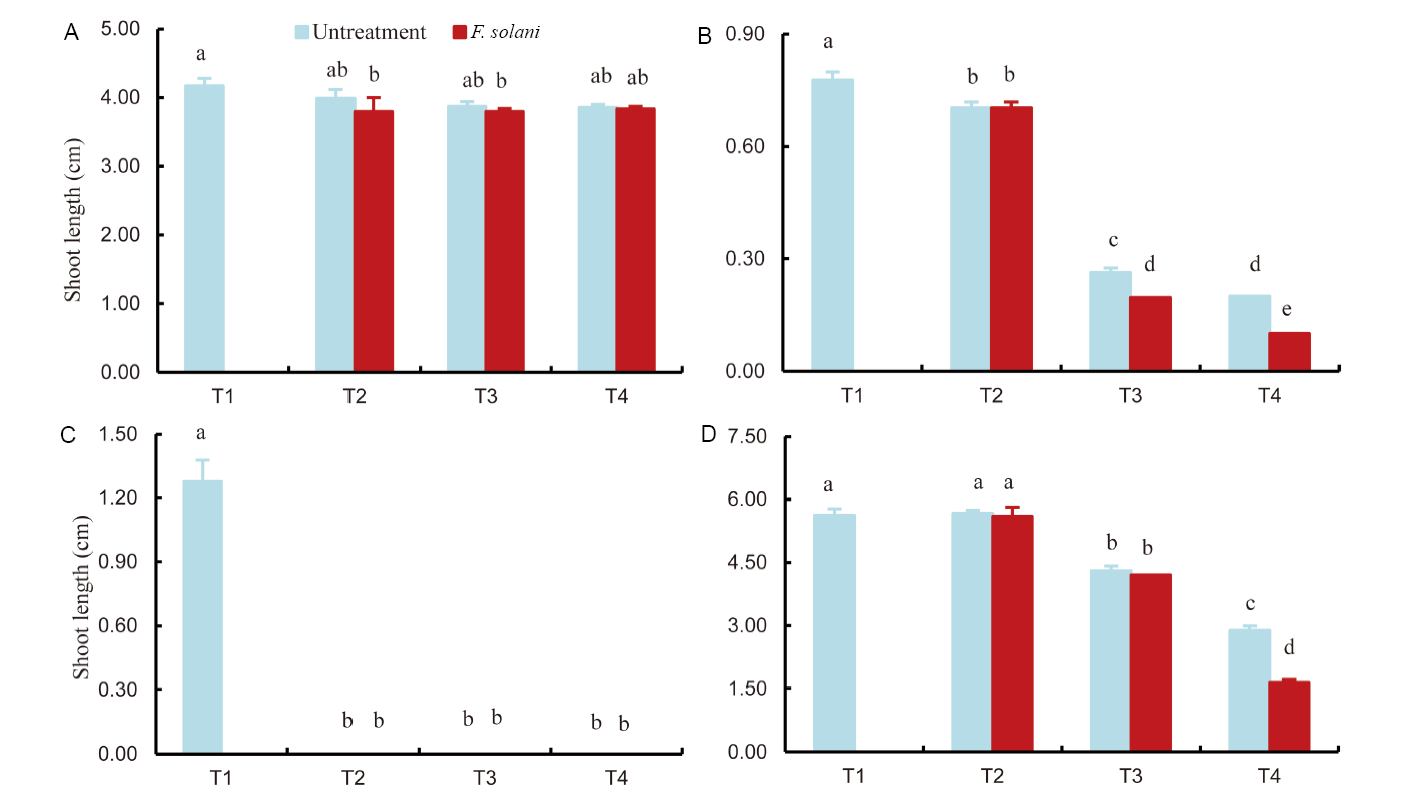

Fig. 5. Effects of untreated and F. solani-treated extracts of P. betle on the shoot length of O. sativa (A), E. prostrata (B), C. barbata (C) and E. crus-galli (D). T1, 0.5% Tween 80 (control); T2, 0.1 mg/mL ethyl acetate extracts; T3, 0.5 mg/mL ethyl acetate extracts; T4, 1.0 mg/mL ethyl acetate extracts.Bars are SE (n = 3) and the lowercase letters indicate significant difference at the 0.05 level.

References 44

[1]	Abd El-Gawad A M, El-Amier Y A, Bonanomib G.2018. Allelopathic activity and chemical composition of Rhynchosia minima(L.) DC. essential oil from Egypt. Chem Biodivers, 15(1): e1700438.
[2]	Abrahim D, Braguini W L, Kelmer-Bracht A M, Ishii-Iwamoto E L.2000. Effects of four monoterpenes on germination, primary root growth, and mitochondrial respiration of maize.J Chem Ecol, 26(3): 611-624.
[3]	Akram W, Anjum T, Ahmad A, Moeen R.2014. First report of Curvularia lunata causing leaf spots on sorghum bicolor from Pakistan. Plant Dis, 98(7): 1007-1008.
[4]	Alam S, Islam M R, Sarkar M A, Chowdhury A N, Alam M S, Lee M W.2004. In vitro effect of fungicides, plant extracts and smoke on conidial germination of Fusarium oxysporum root rot pathogen of Piper betle. Mycobiology, 32(1): 42-46.
[5]	Amri I, Hamrouni L, Hanana M, Jamoussi B.2013. Reviews on phytotoxic effects of essential oils and their individual components: News approach for weeds management.Int J Appl Biol Pharm, 4(1): 96-114.
[6]	Amri I, Hanana M, Jamoussi B, Hamrouni L.2017. Essential oils of Pinus nigra J.F. Arnold subsp. laricio Maire: Chemical composition and study of their herbicidal potential Arabian. Arab J Chem, 10(2): 3877-3882.
[7]	Araniti F, Sánchez-Moreiras A M, Graña E, Reigosa M J, Abenavoli M R.2017. Terpenoid trans-caryophyllene inhibits weed germination and induces plant water status alteration and oxidative damage in adultArabidopsis. Plant Biol, 19(1): 79-89.
[8]	Ayeb-Zakhama A E, Sakka-Rouis L, Bergaoui A, Flamini G, Jannet H B, Harzallah-Skhiri F.2016. Chemical composition and allelopathic potential of essential oils from Tipuana tipu(Benth.) Kuntze cultivated in Tunisia. Chem Biodivers, 13(3): 309-318.
[9]	Borella J, Martinazzo E G, Aumonde T Z, do Amarante L, de Moraes D M, Villela F A.2012. Responses in germination and early growth of radish under the influence of an aqueous extract of Piper mikanianum(Kunth) Steudel. Acta Bot Brasil, 26(2): 415-420. (in Portuguese with an English abstract)
[10]	de Brito Rodrigues L, de Oliveira R, Abe F R, Brito L B, Moura D S, Valadares M C, Grisolia C K, de Oliveira D P, de Oliveira G A R. 2017. Ecotoxicological assessment of glyphosate-based herbicides: Effects on different organisms.Environ Toxicol Chem, 36(7): 1755-1763.
[11]	Costa S S, Matos K S, Tessmann D J, Seixas C D S, Pfenning L H.2016. Fusarium paranaense sp. nov., a member of the Fusarium solani species complex causes root rot on soybean in Brazil. Fungal Biol, 120(1): 51-60.
[12]	da Luz S F M, Yamaguchi L F, Kato M J, de Lemos O F, Xavier L P, Maia J G S, de R Ramos A, Setzer W N, da Silva J K D.2017. Secondary metabolic profiles of two cultivars of Piper nigrum(Black Pepper) resulting from infection by Fusarium solani f. sp. piperis. Int J Mol Sci, 18(12): 2434.
[13]	de Miranda C A S F, Cardoso M D G, de Carvalho M L M, Figueiredo A C S, Nelson D L, de Oliveira C M, Gomes M S, de Andrade J, de Souza J A, de Albuquerque L R M.2014. Chemical composition and allelopathic activity of Parthenium hysterophorus and Ambrosia polystachya weeds essential oils. Am J Plant Sci, 5: 1248-1257.
[14]	Gajera H P, Savaliya D D, Patel S V, Goalkiya B A.2015. Trichodermaviride induces pathogenesis related defense response against rot pathogen infection in groundnut(Arachis hypogaea L.). Infect Genet Evol, 34: 314-325.
[15]	Gatti A B, Ferreira A G, Arduin M, Perez S C G D A.2010. Allelopathic effects of aqueous extracts of Artistolochia esperanzae O.Kuntze on development of Sesamum indicum L. seedlings. Acta Bot Brasil, 24(2): 454-461.
[16]	Gupta V, Shamas N, Razdan V K, Mahajan S, Fatima K, Sharm S, Rai P K.2018. Management of brown spot of rice (Oryza sativa L.) caused by Bipolaris oryzae by bio-control agents. Int J Curr Microbiol App Sci, 7(4): 3472-3477.
[17]	Hattan J I, Shindo K, Sasaki T, Ohno F, Tokuda H, Ishikawa K, Misawa N.2018. Identification of novel sesquiterpene synthase genes that mediate the biosynthesis of valerianol, which was an unknown ingredient of tea.Sci Rep, 8(1): 12474.
[18]	Huang J, Cardoza Y J, Schmelz E A, Raina R, Engelberth J, Tumlinson J H.2003. Differential volatile emissions and salicylic acid levels from tobacco plants in response to different strains ofPseudomonas syringae. Planta, 217(5): 767-775.
[19]	Isman M B.2000. Plant essential oils for pest diseases management.Crop Prot, 19: 603-608.
[20]	Jin J J, Kim M J, Dhandapan S, Tjhang J G, Yin J L, Wong L, Sarojam R, Chua N H, Jang I C.2015. The floral transcriptome of ylang ylang (Cananga odorata var. fruticosa) uncovers biosynthetic pathways for volatile organic compounds and a multifunctional and novel sesquiterpene synthase. J Exp Bot, 66(13): 3959-3975.
[21]	Lu S, Xu R, Jia J W, Pang J, Matsuda S P T, Chen X Y.2002. Cloning and functional characterization of a β-pinine synthase from Artemisia annua that shows a circadian pattern of expression. Plant Physiol, 130(1): 477-486.
[22]	Majeed R A, Shahid A A, Ashfaq M, Saleem M Z, Haider M S.2016. First report of Curvularia lunata causing brown leaf spots of rice in Punjab, Pakistan. Plant Dis, 100(1): 219.
[23]	Mithöfer A, Boland W.2016. Do you speak chemistry? Small chemical compounds represent the evolutionary oldest form of communication between organisms.EMBO Rep, 17(5): 626-629.
[24]	Murashige T, Skoog F.1962. A revised medium for rapid growth and bio assays with tobacco tissue cultures.Physiol Plant, 15(3): 473-497.
[25]	Myers J P, Antoniou M N, Blumberg B, Carroll L, Colborn T, Everett L G, Hansen M, Landrigan P J, Lanphear B P, Mesnage R, Vandenberg L N, vom Saal F S, Welshons W V, Benbrook C M.2016. Concerns over use of glyphosate-based herbicides and risks associated with exposures: A consensus statement.Environ Health, 15(1): 19.
[26]	Namkeleja H S, Tarimo M T C, Ndakidemi P A.2014. Allelopathic effects of Argemone mexicana to growth of native plant species.Am J Plant Sci, 5(9): 1336-1344.
[27]	Nishida N, Tamotsu S, Nagata N, Saito C, Sakai A.2005. Allelopathic effects of volatile monoterpenoids produced by Salvia leucophylla: Inhibition of cell proliferation and DNA synthesis in the root apical meristem of Brassica campestris seedlings. J Chem Ecol, 31(5): 1187-1203.
[28]	Park S, Park A R, Im S, Han Y J, Lee S, Back K, Kim J I, Kim Y S.2014. Developmentally regulated sesquiterpene production confers resistance to Colletotrichum gloeosporioides in ripe pepper fruits. PLoS One, 9(10): e109453.
[29]	Piel J, Atzorn R, Gäbler R, Kühnemann F, Boland W.1997. Cellulysin from the plant parasitic fungus Trichoderma viride elicits volatile biosynthesis in higher plants via the octadecanoid signaling cascade. FEBS Lett, 416(2): 143-148.
[30]	Piesik D, Pańka D, Delaneyc K J, Skoczekd A, Lamparskia R, Weaver D K.2011. Cereal crop volatile organic compound induction after mechanical injury, beetle herbivory (Oulema spp.), or fungal infection(Fusarium spp.). J Plant Physiol, 168(9): 878-886.
[31]	Poulson-Ellestad K L, Jones C M, Roy J, Viant M R, Fernández F M, Kubanek J, Nunn B L.2014. Metabolomics and proteomics reveal impacts of chemically mediated competition on marine plankton.Proc Natl Acad Sci USA, 111: 9009-9014.
[32]	Pukclai P, Kati-Noguchi H.2011. Allelopathic activity of Piper sarmentosum Roxb. Asian J Plant Sci, 10(2): 147-152.
[33]	Reigosa M, Gomes A S, Ferreira A G, Borghetti F.2013. Allelopathic research in Brazil.Acta Bot Brasil, 27(4): 629-646.
[34]	Romagni J G, Allen S N, Dayan F E.2000. Allelopathic effects of volatile cineoles on two weedy plant species.J Chem Ecol, 26(1): 303-313.
[35]	Sánchez-Muñoz B A, Aguilar M I, King-Díaz B, Rivero J F, Lotina-Hennsen B.2012. The sesquiterpene β-caryophyllene and caryophyllene oxide isolated from Senecio salignus act as phytogrowth and phtosynthesis inhibitors. Molecules, 17(2): 1437-1447.
[36]	Silvar C, Merino F, Díaz J.2008. Differential activation of defense-related genes in susceptible and resistant pepper cultivars infected withPhytophthora capsici. J Plant Physiol, 165(10): 1120-1124.
[37]	Taniguchi S, Miyoshi S, Tamaoki D, Yamada S, Tanaka K, Uji Y, Tanaka S, Akimitsu K, Gomi K.2014. Isolation of jasmonate- induced sesquiterpenes synthase of rice: Product of which has an antifungal activity against Magnaporthe oryzae. J Plant Physiol, 171(8): 625-632.
[38]	Tellez M R, Dayan F E, Schrader K K, Wedge D E, Duke S O.2000. Composition and some biological activities of the essential oil of Callicarpa americana(L.). J Agric Food Chem, 48(7): 3008-3012.
[39]	Vaid S, Batish D R, Singh H P, Kohli R K.2010. Phytotoxic effect of eugenol towards two weedy species.Bioscan, 5(3): 339-341.
[40]	Vaid S, Batish D R, Singh H P, Kohli R K.2011. Phytotoxicity of limonene against Amaranthus viridis L. Bioscan, 6(1): 163-165.
[41]	Woranoot K, Buaruaeng R, Kongbangkerd A, Ratanasut K, Choopayak C.2015a. Methyl jasmonate and wounding induced sesquiterpene synthase expression in P. betle tissue culture. Thai J Genet, 8(3): 182-190.
[42]	Woranoot K, Naree P, Kongbangkerd A, Wongkrajang K, Buaruaeng R, Choopayak C.2015b. Phytotoxic effects of Piper betle L. extracts on germination of Eclipta prostrata L. and Chloris barbata Sw. weeds. NU Int J Sci, 12(1): 11-24.
[43]	Xu G F, Shen S C, Zhang F D, Zhang Y, Hisashi K N, David R C.2018. Relationship between allelopathic effects and functional traits of different allelopathic potential rice accessions at different growth stages.Rice Sci, 25(1): 32-41.
[44]	Yan G J, Zhu C H, Luo Y P, Yang Y, Wei J J.2006. Potential allelopathic effects of Piper nigrum, Mangifera indica and Clausena lansium. J Appl Ecol, 17(9): 1633-1636. (in Chinese with English abstract)
