RGB1 Regulates Rice Panicle Architecture and Grain Filling Through Monitoring Cytokinin Level in Inflorescence Meristem and Grain Abscisic Acid Level During Filling Stage

doi:10.1016/j.rsci.2021.05.002

Abstract

Dongping Zhang, Minyan Zhang, Yuzhu Wang, Jiansheng Liang. RGB1 Regulates Rice Panicle Architecture and Grain Filling Through Monitoring Cytokinin Level in Inflorescence Meristem and Grain Abscisic Acid Level During Filling Stage[J]. Rice Science, 2021, 28(4): 317-321.

Figures/Tables 5

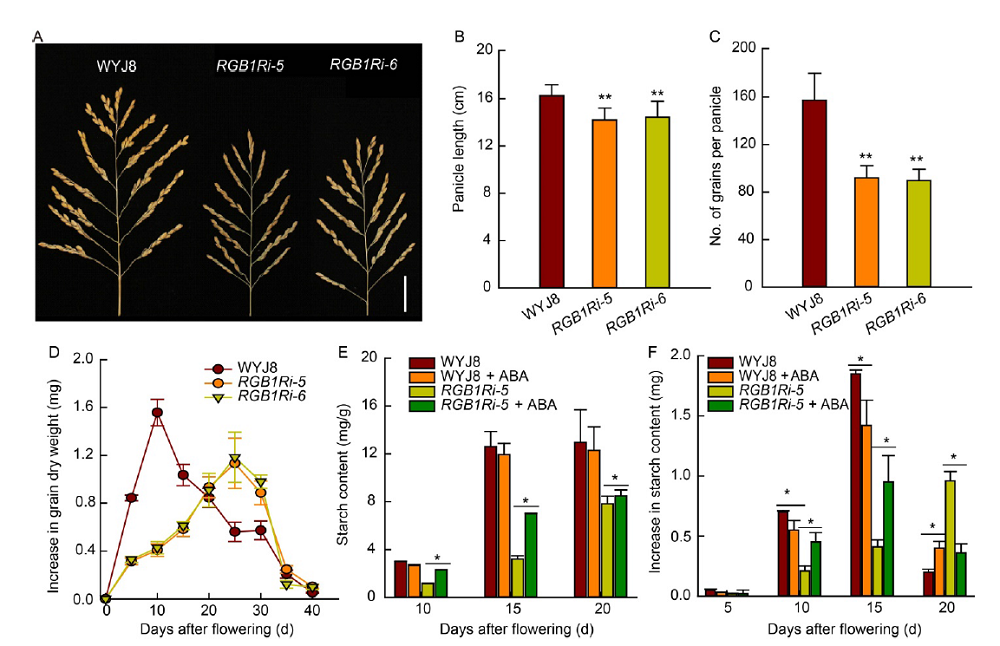

Fig. 1. Comparisons of panicle phenotype, grain filling characteristics and effects of abscisic acid (ABA) application between Wuyujing 8 (WYJ8) and RGB1Ri transgenic lines.A, Panicle phenotype. Scale bar, 1.5 cm. B, Panicle length (n = 10). C, Number of grains per panicle (n = 10). D, Increase in grain dry weight after flowering (n = 10). E and F, Grain starch content and starch accumulation rate at the different days after flowering and the effects of ABA application. Values are Mean ± SD (n = 3). * and ** indicate significant differences at the 0.05 and 0.01 levels, respectively.

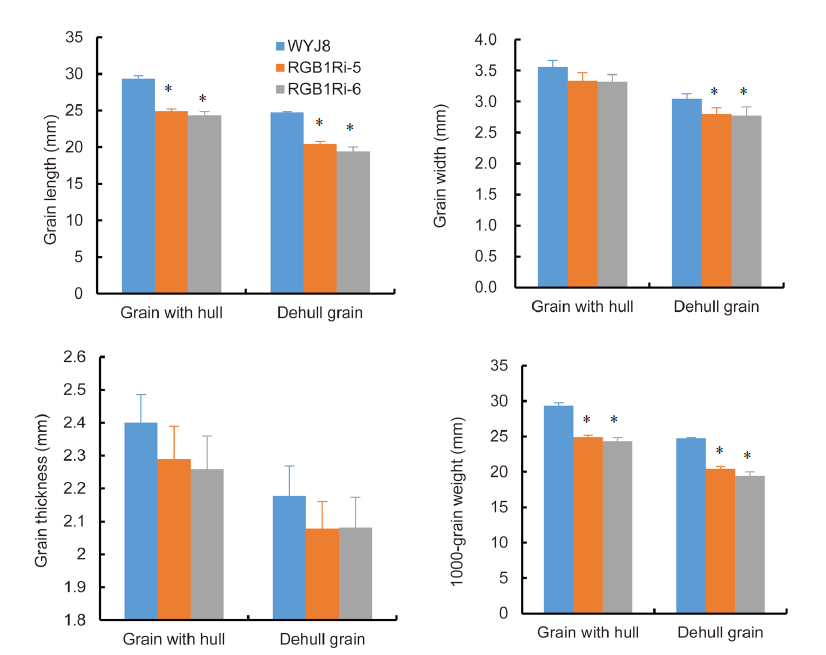

Fig. S1. Comparison of grain size and 1000-grain weight between different genotypes. Data are Mean ± SD (n = 3). * indicate significant differences at the 0.05 level.

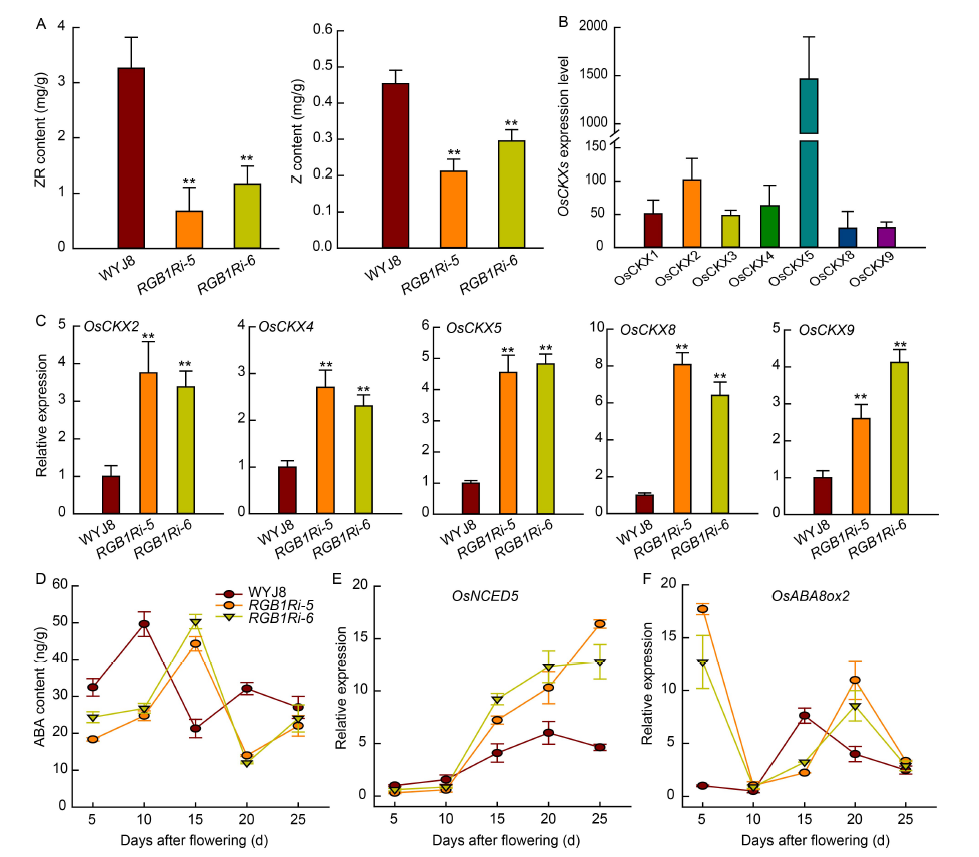

Fig. 2. Contents of cytokinins and abscisic acid (ABA) and expression levels of their related genes. A, Contents of zeatin-riboside (ZR) and zeatin (Z) in the inflorescence meristem quantitatively analyzed by high-performance liquid chromatography- tandem mass spectrometry (HPLC-MS/MS). B and C, Expression of cytokinin oxidase/dehydrogenase (CKXs) genes in the inflorescence meristem. D, Grain ABA content during grain filling stage quantitatively analyzed by HPLC-MS/MS. E and F, Changes in the expression profiles of ABA synthesis gene OsNCED5 and catabolism gene OsABA8ox2 in the grains during grain filling stage. Values are Mean ± SD (n = 3). ** indicate significant differences at the 0.01 level.

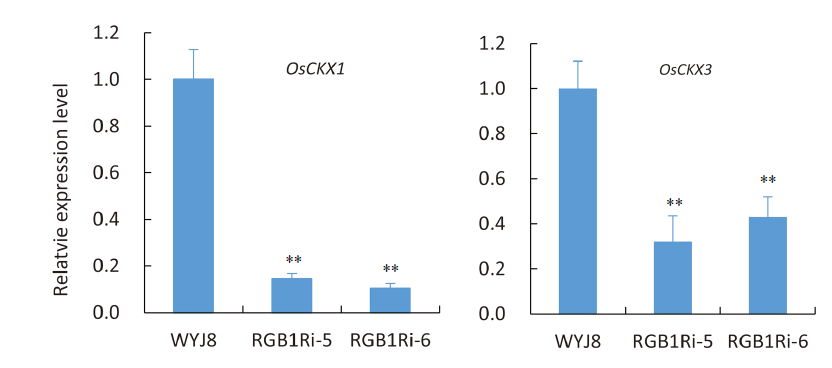

Fig. S2. Expression level of OsCKX1 and OsCKX3 in Wuyujing 8 and RGB1Ri transgenic lines. Data are Mean ± SD (n = 3). ** indicate significant differences at the 0.01 level.

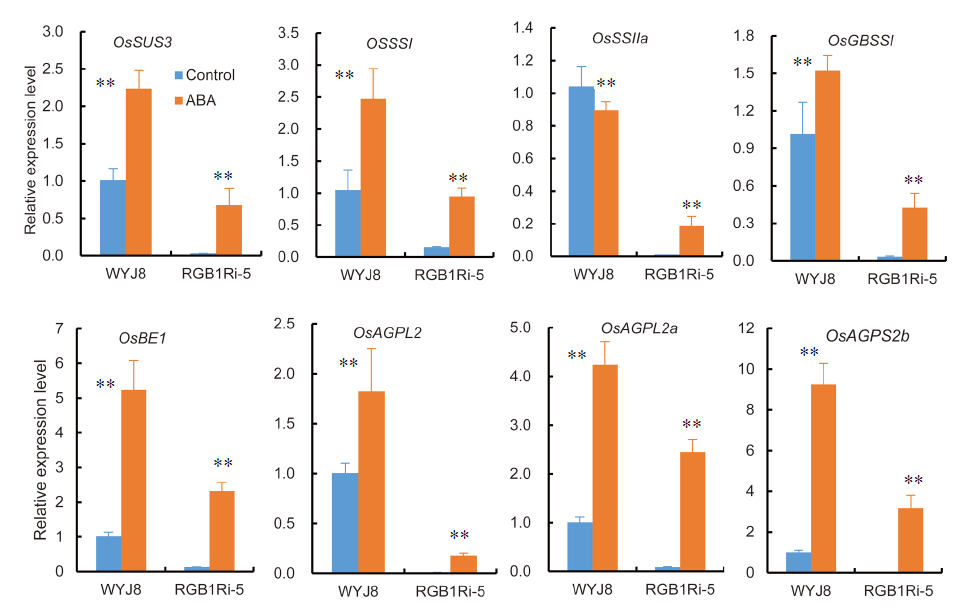

Fig. S3. Effects of abscisic acid (ABA) application on expression of genes catalyzing sucrose catabolism and starch biosynthesis. Data are Mean ± SD (n = 3). ** indicate significant differences at the 0.01 level.

References 26

[1]	Ashikari M, Sakakibara H, Lin S Y, Yamamoto T, Takashi T, Nishimura A, Angeles E R, Qian Q, Kitano H, Matsuoka M. 2005. Cytokinin oxidase regulates rice grain production. Science, 309: 741-745.
[2]	Huang X Z, Qian Q, Liu Z B, Sun H Y, He S Y, Luo D, Xia G M, Chu C C, Li J Y, Fu X D. 2009. Natural variation at the DEP1 locus enhances grain yield in rice. Nat Genet, 41: 494-497.
[3]	Jain M, Nijhawan A, Arora R, Agarwal P, Ray S, Sharma P, Kapoor S, Tyagi A K, Khurana J P. 2007. F-box proteins in rice: Genome-wide analysis, classification, temporal and spatial gene expression during panicle and seed development, and regulation by light and abiotic stress. Plant Physiol, 143(4): 1467-1483.
[4]	Jiang C M, Cheng Z Q, Zhang C, Yu T Q, Zhong Q F, Shen J Q, Huang X Q. 2014. Proteomic analysis of seed storage proteins in wild rice species of the Oryza genus. Proteom Sci, 12(1): 51.
[5]	Laza M R C, Peng S B, Akita S, Saka H. 2004. Effect of panicle size on grain yield of IRRI-released indica rice cultivars in the wet season. Plant Prod Sci, 7: 271-276.
[6]	Li M R, Li X X, Zhou Z J, Wu P Z, Fang M C, Pan X P, Lin Q P, Luo W B, Wu G J, Li H Q. 2016. Reassessment of the four yield-related genes Gn1a, DEP1, GS3, and IPA1 in rice using a CRISPR/Cas9 system. Front Plant Sci, 7: 377.
[7]	Li P P, Zhu YJ, Guo L, Zhuang JY, Fan YY.Fine mapping of qGL1.1, a minor QTL for grain length, using near isogenic lines derived from residual heterozygotes in rice. Chin J Rice Sci, 2020, 34(2): 125-134. (in Chinese with English abstract)
[8]	Li S Y, Zhao B R, Yuan D Y, Duan M J, Qian Q, Tang L, Wang B, Liu X Q, Zhang J, Wang J, Sun J Q, Liu Z, Feng Y Q, Yuan L P, Li C Y. 2013. Rice zinc finger protein DST enhances grain production through controlling Gn1a/OsCKX2 expression. Proc Natl Acad Sci USA, 110(8): 3167-3172.
[9]	Liang J S, Zhang J H, Cao X Z. 2001. Grain sink strength may be related to the poor grain filling of indica-japonica rice(Oryza sativa) hybrids. Physiol Plant, 112(4): 470-477.
[10]	Liu C, Teo W Z N, Bi Y, Song S Y, Xi W Y, Yang X B, Yin Z C, Yu H. 2013. A conserved genetic pathway determines inflorescence architecture in Arabidopsis and rice. Dev Cell, 24(6): 612-622.
[11]	Peng T, Lv Q, Zhang J, Li J Z, Du Y X, Zhao Q Z. 2011. Differential expression of the microRNAs in superior and inferior spikelets in rice (Oryza sativa). J Exp Bot, 62(14): 4943-4954.
[12]	Sun S Y, Wang L, Mao H L, Shao L, Li X H, Xiao J H, Ouyang Y D, Zhang Q F. 2018. A G-protein pathway determines grain size in rice. Nat Commun, 9: 851.
[13]	Tang T, Xie H, Wang Y X, Lü B, Liang J S. 2009. The effect of sucrose and abscisic acid interaction on sucrose synthase and its relationship to grain filling of rice (Oryza sativa L.). J Exp Bot, 60(9): 2641-2652.
[14]	Utsunomiya Y, Samejima C, Takayanagi Y, Izawa Y, Yoshida T, Sawada Y, Fujisawa Y, Kato H, Iwasaki Y. 2011. Suppression of the rice heterotrimeric G protein β-subunit gene, RGB1, causes dwarfism and browning of internodes and lamina joint regions. Plant J, 67(5): 907-916.
[15]	Wang G Q, Li H X, Feng L, Chen M X, Meng S, Ye N H, Zhang J H. 2019. Transcriptomic analysis of grain filling in rice inferior grains under moderate soil drying. J Exp Bot, 70(5): 1597-1611.
[16]	Wang J Y, Nakazaki T, Chen S Q, Chen W F, Saito H, Tsukiyama T, Okumoto Y, Xu Z J, Tanisaka T. 2009. Identification and characterization of the erect-pose panicle gene EP conferring high grain yield in rice(Oryza sativa L.). Theor Appl Genet, 119: 85-91.
[17]	Wang Z Q, Xu Y J, Chen T T, Zhang H, Yang J C, Zhang J H. 2015. Abscisic acid and the key enzymes and genes in sucrose- to-starch conversion in rice spikelets in response to soil drying during grain filling. Planta, 241: 1091-1107.
[18]	Yang J C, Zhang J H. 2010. Grain-filling problem in ‘super’ rice. J Exp Bot, 61(1): 1-5.
[19]	You C C, Zhu H L, Xu B B, Huang W X, Wang S H, Ding Y F, Liu Z H, Li G H, Chen L, Ding C Q, Tang S. 2016. Effect of removing superior spikelets on grain filling of inferior spikelets in rice. Front Plant Sci, 7: 1161.
[20]	You C C, Chen L, He H B, Wu L Q, Wang S H, Ding Y F, Ma C X. 2017. iTRAQ-based proteome profile analysis of superior and inferior spikelets at early grain filling stage in japonica rice. BMC Plant Biol, 17: 100.
[21]	Zhang D P, Zhang M Y, Zhou Y, Wang Y Z, Shen J Y, Chen H Y, Zhang L, Lü B, Liang G H, Liang J S. 2019. The rice G protein γ subunit DEP1/qPE9-1 positively regulates grain-filling process by increasing auxin and cytokinin content in rice grains. Rice, 12(1): 91.
[22]	Zhang H, Li H W, Yuan L M, Wang Z Q, Yang J C, Zhang J H. 2012. Post-anthesis alternate wetting and moderate soil drying enhances activities of key enzymes in sucrose-to-starch conversion in inferior spikelets of rice. J Exp Bot, 63(1): 215-227.
[23]	Zhang X F, Tong J H, Bai A N, Li C M, Xiao L T, Xue H W. 2020. Phytohormone dynamics in developing endosperm influence rice grain shape and quality. J Integr Plant Biol, 62(10): 1625-1637.
[24]	Zhao M Z, Sun J, Xiao Z Q, Cheng F, Xu H, Tang L, Chen W F, Xu Z J, Xu Q. 2016. Variations in DENSE AND ERECT PANICLE 1 (DEP1) contribute to the diversity of the panicle trait in high-yielding japonica rice varieties in northern China. Breeding Sci, 66(4): 599-605.
[25]	Zhou Y, Zhu J Y, Li Z Y, Yi C D, Liu J, Zhang H G, Tang S Z, Gu M H, Liang G H. 2009. Deletion in a quantitative trait gene qPE9-1 associated with panicle erectness improves plant architecture during rice domestication. Genetics, 183(1): 315-324.
[26]	Zhu G H, Ye N H, Yang J C, Peng X X, Zhang J H. 2011. Regulation of expression of starch synthesis genes by ethylene and ABA in relation to the development of rice inferior and superior spikelets. J Exp Bot, 62(11): 3907-3916.
