Genetic Dissection of Quantitative Trait Loci for Panicle Traits and Heat Tolerance by High-Density Bin Map in Rice

doi:10.1016/j.rsci.2022.07.008

Abstract

Liu Hongyan, Ma Xiaosong, Li Enxi, Zeng Xianjun, Luo Lijun. Genetic Dissection of Quantitative Trait Loci for Panicle Traits and Heat Tolerance by High-Density Bin Map in Rice[J]. Rice Science, 2022, 29(6): 507-511.

Figures/Tables 1

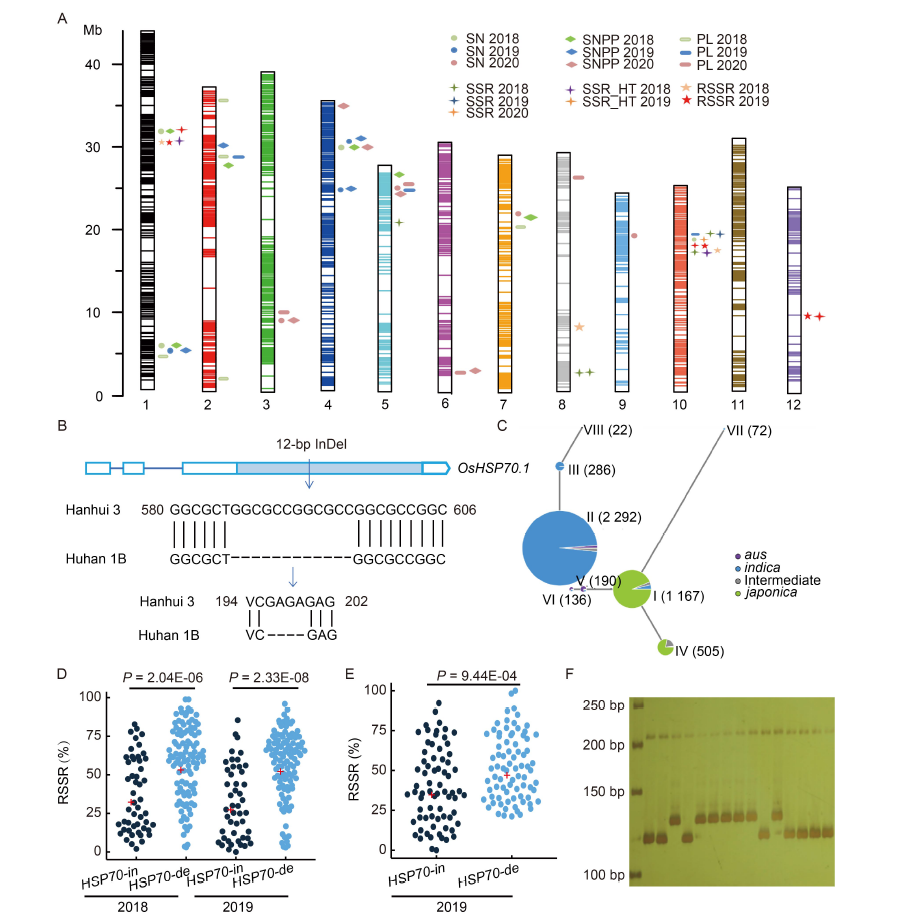

Fig. 1. QTLs detected for panicle traits and heat tolerance, and haplotype analysis and marker validation for candidate gene OsHSP70.1. A, QTLs detected for panicle traits and heat tolerance. B, Insertion/deletion (InDel) and amino acid variations of OsHSP70.1 between Huhan 1B and Hanhui 3. The blue box indicates coding region, the white boxes indicate non-coding regions and the lines indicate introns. C, Haplotypes of OsHSP70.1 in rice. Numbers in parentheses indicate the number of rice accessions. D, RSSR of HH13 recombinant inbred lines in 2018 and 2019. E, RSSR of core collection population of Chinese rice germplasm in 2019. ‘+’ represents mean values in D and E. F, Schematic representation of polyacrylamide electrophoresis of InDel marker HSP70-12. The marker ladder was in the leftmost lane. HSP70-in, Allele of OsHSP70.1 in Hanhui 3 with 12 bp insertion; HSP70-de, Allele of OsHSP70.1 in Huhan 1B with 12 bp deletion. SN, Seed number per panicle; SNPP, Spikelet number per panicle; PL, Panicle length; SSR, Seed-setting rate under normal conditions; SSR_HT, Seed-setting rate under heat stress conditions; RSSR, Relative seed-setting rate.

References 31

[1]	Cao L Y, Zhao J G, Zhan X D, Li D L, He L B, Cheng S H. 2003. Mapping QTLs for heat tolerance and correlation between heat tolerance and photosynthetic rate in rice. Chin J Rice Sci, 17: 223-227. (in Chinese with English abstract)
[2]	Cao Z B, Li Y, Tang H W, Zeng B H, Tang X Y, Long Q Z, Wu X F, Cai Y H, Yuan L F, Wan J L. 2020. Fine mapping of the qHTB1-1QTL, which confers heat tolerance at the booting stage, using an Oryza rufipogon Griff. introgression line. Theor Appl Genet, 133(4): 1161-1175.
[3]	Chepyshko H, Lai C P, Huang L M, Liu J H, Shaw J F. 2012. Multifunctionality and diversity of GDSL esterase/lipase gene family in rice (Oryza sativa L. japonica) genome: New insights from bioinformatics analysis. BMC Genomics, 13: 309. PMID
[4]	Chou T S, Chao Y Y, Kao C H. 2012. Involvement of hydrogen peroxide in heat shock- and cadmium-induced expression of ascorbate peroxidase and glutathione reductase in leaves of rice seedlings. J Plant Physiol, 169(5): 478-486.
[5]	Fujita D, Trijatmiko K R, Tagle A G, Sapasap M V, Koide Y, Sasaki K, Tsakirpaloglou N, Gannaban R B, Nishimura T, Yanagihara S, Fukuta Y, Koshiba T, Slamet-Loedin I H, Ishimaru T, Kobayashi N. 2013. NAL1 allele from a rice landrace greatly increases yield in modern indica cultivars. Proc Natl Acad Sci USA, 110(51): 20431-20436.
[6]	Hackbusch J, Richter K, Müller J, Salamini F, Uhrig J F. 2005. A central role of Arabidopsis thaliana ovate family proteins in networking and subcellular localization of 3-aa loop extension homeodomain proteins. Proc Natl Acad Sci USA, 102(13): 4908-4912.
[7]	Hartl F U, Bracher A, Hayer-Hartl M. 2011. Molecular chaperones in protein folding and proteostasis. Nature, 475: 324-332.
[8]	Ku S J, Yoon H, Suh H S, Chung Y Y. 2003. Male-sterility of thermo- sensitive genic male-sterile rice is associated with premature programmed cell death of the tapetum. Planta, 217(4): 559-565.
[9]	Lafarge T, Bueno C, Frouin J, Jacquin L, Courtois B, Ahmadi N. 2017. Genome-wide association analysis for heat tolerance at flowering detected a large set of genes involved in adaptation to thermal and other stresses. PLoS One, 12(2): e0171254.
[10]	Leipe D D, Koonin E V, Aravind L. 2004. STAND, a class of P-loop NTPases including animal and plant regulators of programmed cell death: Multiple, complex domain architectures, unusual phyletic patterns, and evolution by horizontal gene transfer. J Mol Biol, 343(1): 1-28. PMID
[11]	Li L H, Lv M M, Li X, Ye T Z, He X, Rong S H, Dong Y L, Guan Y, Gao X L, Zhu J Q, Xu Z J. 2018. The rice OsDUF810 family: OsDUF810.7 may be involved in the tolerance to salt and drought. Mol Biol, 52(4): 489-496.
[12]	Li X M, Chao D Y, Wu Y, Huang X H, Chen K, Cui L G, Su L, Ye W W, Chen H, Chen H C, Dong N Q, Guo T, Shi M, Feng Q, Zhang P, Han B, Shan J X, Gao J P, Lin H X. 2015. Natural alleles of a proteasome α2 subunit gene contribute to thermo- tolerance and adaptation of African rice. Nat Genet, 47(7): 827-833.
[13]	Liu Q, Yang T F, Yu T, Zhang S H, Mao X X, Zhao J L, Wang X F, Dong J F, Liu B. 2017. Integrating small RNA sequencing with QTL mapping for identification of miRNAs and their target genes associated with heat tolerance at the flowering stage in rice. Front Plant Sci, 8: 43. PMID
[14]	Lüders J, Demand J, Höhfeld J. 2000. The ubiquitin-related BAG-1 provides a link between the molecular chaperones Hsc70/Hsp70 and the proteasome. J Biol Chem, 275(7): 4613-4617. PMID
[15]	Matsui T, Omasa K, Horie T. 2000. High temperature at flowering inhibits swelling of pollen grains, a driving force for thecae dehiscence in rice (Oryza sativa L.). Plant Prod Sci, 3(4): 430-434.
[16]	Matsui T, Omasa K, Horie T. 2001. The difference in sterility due to high temperatures during the flowering period among japonica- rice varieties. Plant Prod Sci, 4(2): 90-93.
[17]	Montero-Barrientos M, Hermosa R, Cardoza R E, Gutiérrez S, Nicolás C, Monte E. 2010. Transgenic expression of the Trichoderma harzianum hsp70 gene increases Arabidopsis resistance to heat and other abiotic stresses. J Plant Physiol, 167(8): 659-665.
[18]	Prasad P V V, Boote K J, Jr Allen L H, Sheehy J E, Thomas J M G. 2006. Species, ecotype and cultivar differences in spikelet fertility and harvest index of rice in response to high temperature stress. Field Crops Res, 95(2/3): 398-411.
[19]	Shanmugavadivel P S, Amitha Mithra S V, Chandra P, Ramkumar M K, Ratan T, Trilochan M, Nagendra K S. 2017. High resolution mapping of QTLs for heat tolerance in rice using a 5K SNP array. Rice, 10: 28. PMID
[20]	Shen G D, Sun W L, Chen Z C, Shi L, Hong J, Shi J X. 2022. Plant GDSL esterases/lipases: Evolutionary, physiological and molecular functions in plant development. Plants, 11(4): 468.
[21]	Shin Y, Klucken J, Patterson C, Hyman B T, McLean P J. 2005. The co-chaperone carboxyl terminus of Hsp70-interacting protein (CHIP) mediates alpha-synuclein degradation decisions between proteasomal and lysosomal pathways. J Biol Chem, 280(25): 23727-23734. PMID
[22]	Wang S C, Chang Y, Guo J J, Zeng Q N, Ellis B E, Chen J G. 2011. Arabidopsis ovate family proteins, a novel transcriptional repressor family, control multiple aspects of plant growth and development. PLoS One, 6(8): e23896.
[23]	Wang W X, Vinocur B, Shoseyov O, Altman A. 2004. Role of plant heat-shock proteins and molecular chaperones in the abiotic stress response. Trends Plant Sci, 9(5): 244-252. PMID
[24]	Xing Y Z, Zhang Q F. 2010. Genetic and molecular bases of rice yield. Annu Rev Plant Biol, 61: 421-442. PMID
[25]	Xu Y F, Zhang L, Ou S J, Wang R C, Wang Y M, Chu C C, Yao S G. 2020. Natural variations of SLG1 confer high-temperature tolerance in indica rice. Nat Commun, 11(1): 5441.
[26]	Ye C R, Argayoso M A, Redoña E D, Sierra S N, Laza M A, Dilla C J, Mo Y, Thomson M J, Chin J, Delaviña C B, Diaz G Q, Hernandez J E. 2012. Mapping QTL for heat tolerance at flowering stage in rice using SNP markers. Plant Breed, 131(1): 33-41.
[27]	Ye C R, Tenorio F A, Redoña E D, Morales-Cortezano P S, Cabrega G A, Jagadish K S V, Gregorio G B. 2015. Fine-mapping and validating qHTSF4.1 to increase spikelet fertility under heat stress at flowering in rice. Theor Appl Genet, 128(8): 1507-1517.
[28]	Yu H, Jiang W Z, Liu Q, Zhang H, Piao M X, Chen Z D, Bian M D. 2015. Expression pattern and subcellular localization of the ovate protein family in rice. PLoS One, 10(3): e0118966.
[29]	Zhang G H, Li S Y, Wang L, Ye W J, Zeng D L, Rao Y C, Peng Y L, Hu J, Yang Y L, Xu J, Ren D Y, Gao Z Y, Zhu L, Dong G J, Hu X M, Yan M X, Guo L B, Li C Y, Qian Q. 2014. LSCHL4 from japonica cultivar, which is allelic to NAL1, increases yield of indica super rice 93-11. Mol Plant, 7(8): 1350-1364.
[30]	Zhu J, Lou Y, Shi Q S, Zhang S, Zhou W T, Yang J, Zhang C, Yao X Z, Xu T, Liu J L, Zhou L, Hou J Q, Wang J Q, Wang S, Huang X H, Yang Z N. 2020. Slowing development restores the fertility of thermo-sensitive male-sterile plant lines. Nat Plants, 6(4): 360-367. PMID
[31]	Zuppini A, Bugno V, Baldan B. 2006. Monitoring programmed cell death triggered by mild heat shock in soybean-cultured cells. Funct Plant Biol, 33(7): 617-627. PMID
