Oriented Generation of Novel Thermo-Sensitive Genic Male Sterile Lines with Improved Grain Shape and Outcrossing Rate in Early-Season Rice

doi:10.1016/j.rsci.2023.11.006

Abstract

Zhang Huali, Chen Junyu, Li Ruiqing, Wang Huimei, Dai Dongqing, Liang Minmin, Wu Mingyue, Ma Liangyong. Oriented Generation of Novel Thermo-Sensitive Genic Male Sterile Lines with Improved Grain Shape and Outcrossing Rate in Early-Season Rice[J]. Rice Science, 2024, 31(2): 129-133.

Figures/Tables 1

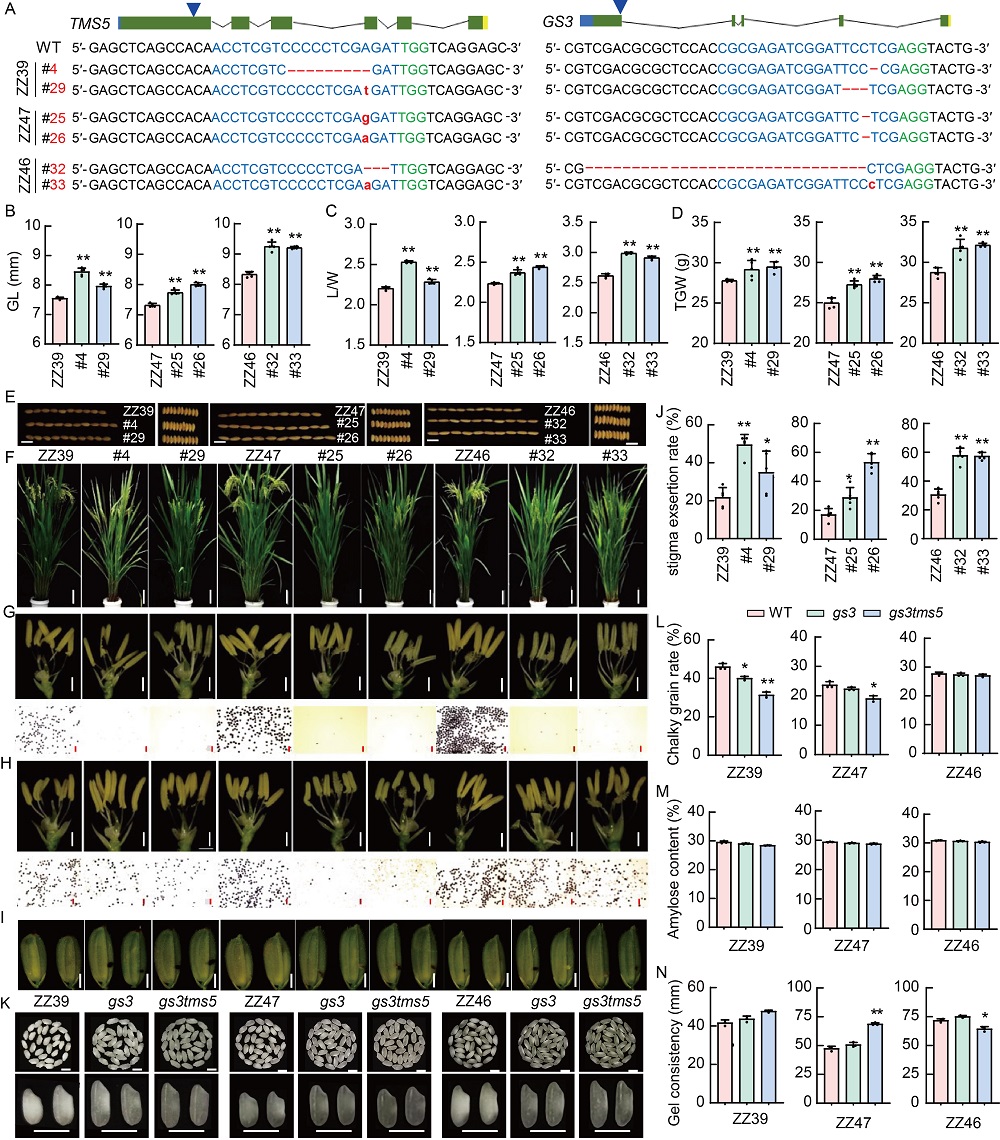

Fig. 1. Orientation mutagenesis of TMS5 and GS3 genes develops thermo-sensitive genic male sterile lines with improved grain quality and outcrossing rate in early-season india rice. A, Schematic diagram of the targeted sites of TMS5 and GS3 genes and two gs3tms5 mutation types in each variety. In wild type (WT), the targeted sites are highlighted in blue and the protospacer adjacent motif (PAM) sequences are highlighted in green. Untranslated regions, exons, and introns are indicated by blue rectangles, green rectangles, and lines, respectively. In mutants, the targeting sequences are highlighted in blue and the PAM sequences in green. Mutations with insertions are in red lowercase letters. The deleted sequences are shown by red dashed lines. B-E, Comparison of grain length (GL, B), ratio of grain length to grain width (L/W, C), 1000-grain weight (TGW, D), and grain shape (E) between WT and mutant lines. Scale bars in (E) are 1 cm. F, Plant stature of the WT and gs3tms5 mutant lines at the grain-filling stage during the normal rice growing season. Scale bars are 10 cm. G and H, Anther pollen grains stained with I2-KI under high temperature (G, 30 ºC in the normal field) and low temperature (H, 22 ºC at a cold water pool) at the heading stage. Scale bars in the above and below are 1 mm and 100 μm, respectively. I, Spikelet of each genotype at the flowering stage. Scale bars are 2 mm. J, Comparison of stigma exsertion rate. K, Comparison of appearance of polished rice grains. Scale bars are 1 cm. L-N, Comparison of chalky grain rate (L), amylose content (M), and gel consistency (N). In B-D, J, and L-N, data are Mean ± SD (n = 5). * and ** represent significant differences at the 0.05 and 0.01 levels, respectively, by the t-test.

References 25

[1]	Chen J Y, Zhang H L, Deng S H, Du H L, Chen Z, Zhao Y H, Dai D Q, Liang C Z, Li X M, Liang C Z, Zhang R, Ma L Y. 2021. A backbone parent contributes core genomic architecture to pedigree breeding of early-season indica rice. J Genet Genomics, 48(11): 1040-1043.
[2]	Chen Y Y, Zhu A K, Xue P, Wen X X, Cao Y R, Wang B F, Zhang Y, Liaqat S, Cheng S H, Cao L Y, Zhang Y X. 2020. Effects of GS3 and GL3.1 for grain size editing by CRISPR/Cas 9 in rice. Rice Sci, 27(5): 405-413.
[3]	Fan C C, Xing Y Z, Mao H L, Lu T T, Han B, Xu C G, Li X H, Zhang Q F. 2006. GS3, a major QTL for grain length and weight and minor QTL for grain width and thickness in rice, encodes a putative transmembrane protein. Theor Appl Genet, 112(6): 1164-1171.
[4]	Huang H X, Qian Q. 2017. Progress in genetic research of rice grain shape and breeding achievements of long-grain shape and good quality japonica rice. Chin J Rice Sci, 31(6): 665-672. (in Chinese with English abstract)
[5]	Liu Q M, Qin J C, Li T W, Liu E B, Fan D J, Edzesi W M, Liu J H, Jiang J H, Liu X L, Xiao L J, Liu L L, Hong D L. 2015. Fine mapping and candidate gene analysis of qSTL3, a stigma length conditioning locus in rice (Oryza sativa L.). PLoS One, 10(6): e0127938.
[6]	Liu T T, Zou J P, Yang X, Wang K J, Rao Y C, Wang C. 2023. Development and application of prime editing in plants. Rice Sci, 30(6): 509-522.
[7]	Mao T, Zhu M D, Sheng Z H, Shao G N, Jiao G A, Mawia A M, Ahmad S, Xie L H, Tang S Q, Wei X J, Hu S K, Hu P S. 2021. Effects of grain shape genes editing on appearance quality of erect-panicle Geng/Japonica rice. Rice, 14(1): 74.
[8]	Rahman M H, Zhang Y X, Zhang K Q, Rahman M S, Barman H N, Riaz A, Chen Y Y, Wu W X, Zhan X D, Cao L Y, Cheng S H. 2017. Genetic dissection of the major quantitative trait locus (qSE11), and its validation as the major influence on the rate of stigma exsertion in rice (Oryza sativa L.). Front Plant Sci, 8: 1818.
[9]	Shen L, Dong G J, Zhang Y, Hu G C, Zhang Q, Hu G L, Xu B, Ren D Y, Hu J, Zhu L, Gao Z Y, Zhang G H, Guo L B, Zeng D L, Qian Q. 2019. Rapid creation of new photoperiod-/thermo-sensitive genic male-sterile rice materials by CRISPR/Cas9 system. Rice Sci, 26(2): 129-132.
[10]	Shen R X, Wang L, Liu X P, Wu J, Jin W W, Zhao X C, Xie X R, Zhu Q L, Tang H W, Li Q, Chen L T, Liu Y G. 2017. Genomic structural variation-mediated allelic suppression causes hybrid male sterility in rice. Nat Commun, 8(1): 1310.
[11]	Tan Q Y, Zhu H T, Liu H, Ni Y R, Wu S Z, Luan X, Liu J W, Yang W F, Yang Z F, Zeng R Z, Liu G F, Wang S K, Zhang G Q. 2022. Fine mapping of QTLs for stigma exsertion rate from Oryza glaberrima by chromosome segment substitution. Rice Sci, 29(1): 55-66.
[12]	Tan Q Y, Chen S L, Gan Z P, Lu Q M, Yan Z G, Chen G D, Lin S J, Yang W F, Zhao J, Ba Y Y, Zhu H T, Bu S H, Liu G F, Liu Z P, Wang S K, Zhang G Q. 2023. Grain shape is a factor affecting the stigma exsertion rate in rice. Front Plant Sci, 14: 1087285.
[13]	Tian D C, Huang S K, Duan Y G, Wang Y H. 2004. The relationship between flowering and pollination time and outcrossing rate of male sterile lines in hybrid rice seed production. Hybrid Rice, 19(3): 50-54. (in Chinese with English abstract)
[14]	Wang C, Shen L, Fu Y P, Yan C J, Wang K J. 2015. A simple CRISPR/Cas9 system for multiplex genome editing in rice. J Genet Genomics, 42(12): 703-706.
[15]	Wang C, Wang K J. 2019. Rapid screening of CRISPR/Cas9- induced mutants using the ACT-PCR method. Methods Mol Biol, 1917: 27-32.
[16]	Xu J J, Wang B H, Wu Y H, Du P N, Wang J, Wang M, Yi C D, Gu M H, Liang G H. 2011. Fine mapping and candidate gene analysis of ptgms2-1, the photoperiod-thermo-sensitive genic male sterile gene in rice (Oryza sativa L.). Theor Appl Genet, 122(2): 365-372.
[17]	Xu S L, Zheng Y C, Liu Y, Guo X H, Tan Y Y, Qian Q P, Shu Q Y, Huang J Z. 2019. Identification of a major quantitative trait locus and its candidate underlying genetic variation for rice stigma exsertion rate. Crop J, 7(3): 350-359.
[18]	Yuan L P. 2014. Development of hybrid rice to ensure food security. Rice Sci, 21(1): 1-2.
[19]	Yuan L P. 2018. The strategy for hybrid rice development. Hybrid Rice, 33(5): 1-2. (in Chinese with English abstract)
[20]	Zhang H L, Huang J Z, Liu Q L, Nawaz Z, Lu H P, Gong J Y, Zhu Y J, Yan W G, Shu Q Y. 2014. Characterization of an RNase Z nonsense mutation identified exclusively in environment-conditioned genic male sterile rice. Mol Breed, 34: 481-489.
[21]	Zhang H L, Chen X Y, Huang J Z, E Z G, Gong J Y, Shu Q Y. 2015. Identification and transition analysis of photo-/thermo-sensitive genic male sterile genes in two-line hybrid rice in China. Sci Agric Sin, 48(1): 1-9. (in Chinese with English abstract)
[22]	Zhang X Q, Hu Y W, Wu Y J, Wei X, Zhang Y Y. 2018. Research progress of stigma exsertion traits in crops. Plant Physiol J, 54(7): 1172-1178. (in Chinese with English abstract)
[23]	Zhou H, He M, Li J, Chen L, Huang Z F, Zheng S Y, Zhu L Y, Ni E D, Jiang D G, Zhao B R, Zhuang C X. 2016. Development of commercial thermo-sensitive genic male sterile rice accelerates hybrid rice breeding using the CRISPR/Cas9-mediated TMS5 editing system. Sci Rep, 6: 37395.
[24]	Zhou H, Li P B, Xie W B, Hussain S, Li Y B, Xia D, Zhao H, Sun S Y, Chen J X, Ye H, Hou J, Zhao D, Gao G J, Zhang Q L, Wang G W, Lian X M, Xiao J H, Yu S B, Li X H, He Y Q. 2017. Genome-wide association analyses reveal the genetic basis of stigma exsertion in rice. Mol Plant, 10(4): 634-644.
[25]	Zhu X Y, Gou Y J, Heng Y Q, Ding W Y, Li Y J, Zhou D G, Li X Q, Liang C R, Wu C Y, Wang H Y, Shen R X. 2023. Targeted manipulation of grain shape genes effectively improves outcrossing rate and hybrid seed production in rice. Plant Biotechnol J, 21(2): 381-390.
