Novel Deletion in Exon 7 of Betaine Aldehyde Dehydrogenase 2 (BADH2)

doi:10.1016/j.rsci.2023.01.003

Abstract

Abstract:

The fragrance of rice is one of the premium characteristics that breeders want to include in rice varieties due to the higher market value. Nucleotide deletions in exons 2 (7 bp) and 7 (8 bp) of Betaine Aldehyde Dehydrogenase 2 (BADH2) are associated with fragrance in rice. In this study, a new 13 bp deletion in exon 7 of the BADH2 gene was discovered in the Nang Thom Cho Dao (NTCD) variety, and the mutation has been closely related to the genetic background of indica subspecies through the Bayesian phylogenetic approach and haplotype network analysis of the 3 000 Rice Genomes Project. In addition, a set of functional markers (EX07-13F, EX07-13RN, and EX07-13RM) identified the 13 bp deletion only within NTCD (no amplified band) compared with both non-aromatic and other aromatic rice varieties (110 bp band). The deletion of 13 bases instead of 8 bases in exon 7 of BADH2 caused a premature stop codon, which down-regulated the expression of the BADH2 transcript while associated with up-regulation of OsP5CS and the high amount of 2-acetyl-1-pyrroline. It is potential to use the deletion in exon 7 of the BADH2 gene as a novel marker for adulteration and breeding of fragrant rice varieties, particularly for NTCD.

Key words: novel deletion, BADH2, fragrant rice, functional marker

Van Quoc Giang, Huynh Ky, Nguyen Chau Thanh Tung, Nguyen Loc Hien, Nguyen van Manh, Nguyen Nhut Thanh, Vo Cong Thanh, Swee Keong Yeap. Novel Deletion in Exon 7 of Betaine Aldehyde Dehydrogenase 2 (BADH2)[J]. Rice Science, 2023, 30(2): 104-112.

Figures/Tables 8

Fig. 1. Grains of aromatic rice (NTCD) and normal rice (TN).

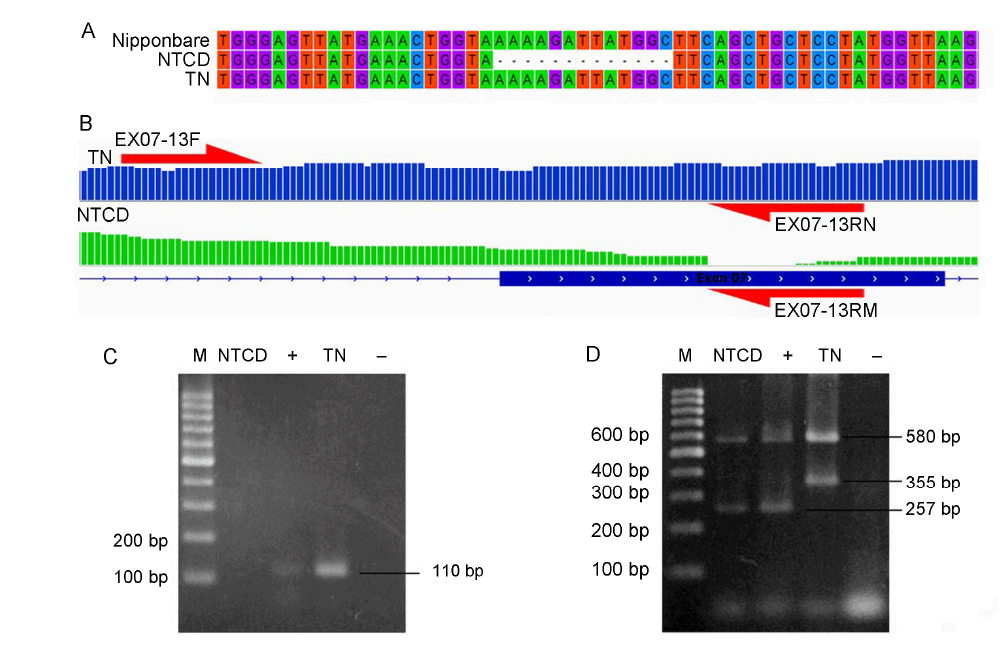

Fig. 2. Sequencing data validation in exon 7 in BADH2 gene. A, Validation of BADH2 gene by Sanger method. B, Primer design for allele specific amplification in exon 7 of BADH2 gene. C, Testing of EX07-13F with EX07- 13RN (normal) and EX07-13RM (mutant) primers for NTCD’s allele specific amplification. D, Fragrance analysis for NTCD and TN using four primers from Bradbury et al (2005). M, Thermo ladder 100 bp; NTCD, Nang Thom Cho Dao; TN, Tai Nguyen; ‘+’, Positive control MTL676; ‘-’, Negative control.

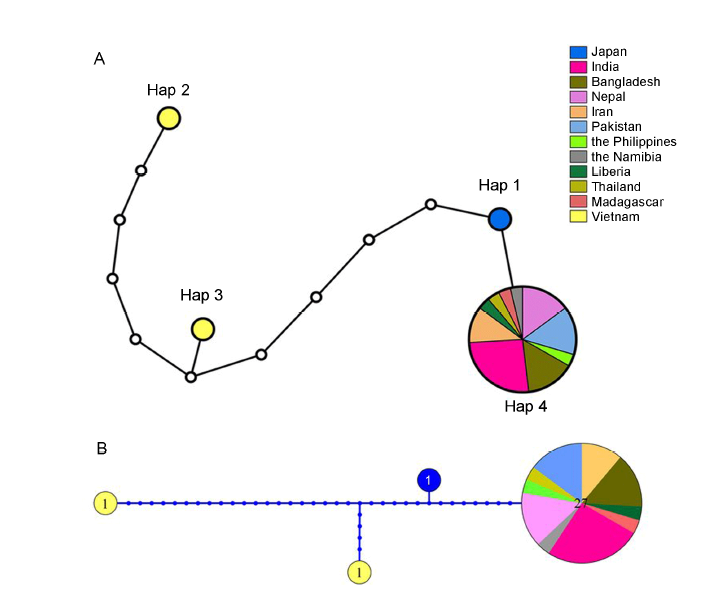

Fig. 3. Haplotype networks inferred from 30 sequences from 12 countries representing relationship of nucleotide deletion in exon 7 of BADH2 gene. A, TCS (Templeton, Crandall, and Sing) haplotype network generated from 30 sequences using maximum parsimony. Nang Thom Cho Dao and Tai Nguyen from Vietnam, 1 reference genome and 27 aromatic rice varieties from 3 000 Rice Genomes Project were used. B, Haplotype network inferred from Bayesian analysis.

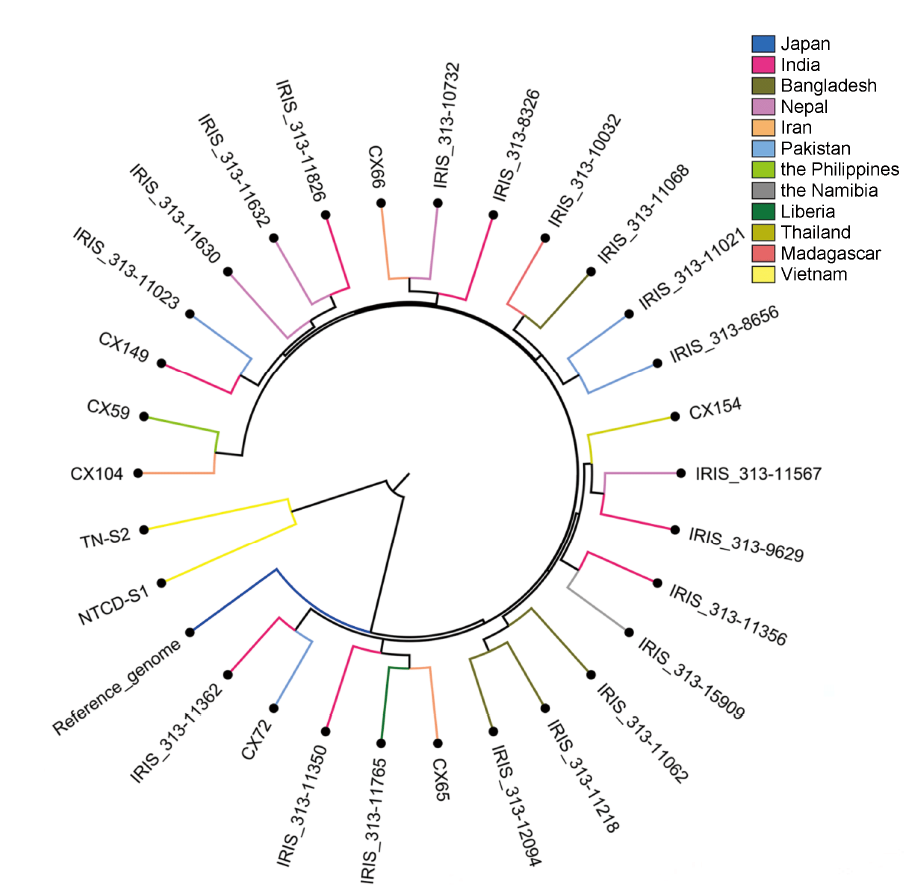

Fig. 4. Bayesian phylogenetic tree based on 30 alignments from the surrounding target region of exon 7 of BADH2.

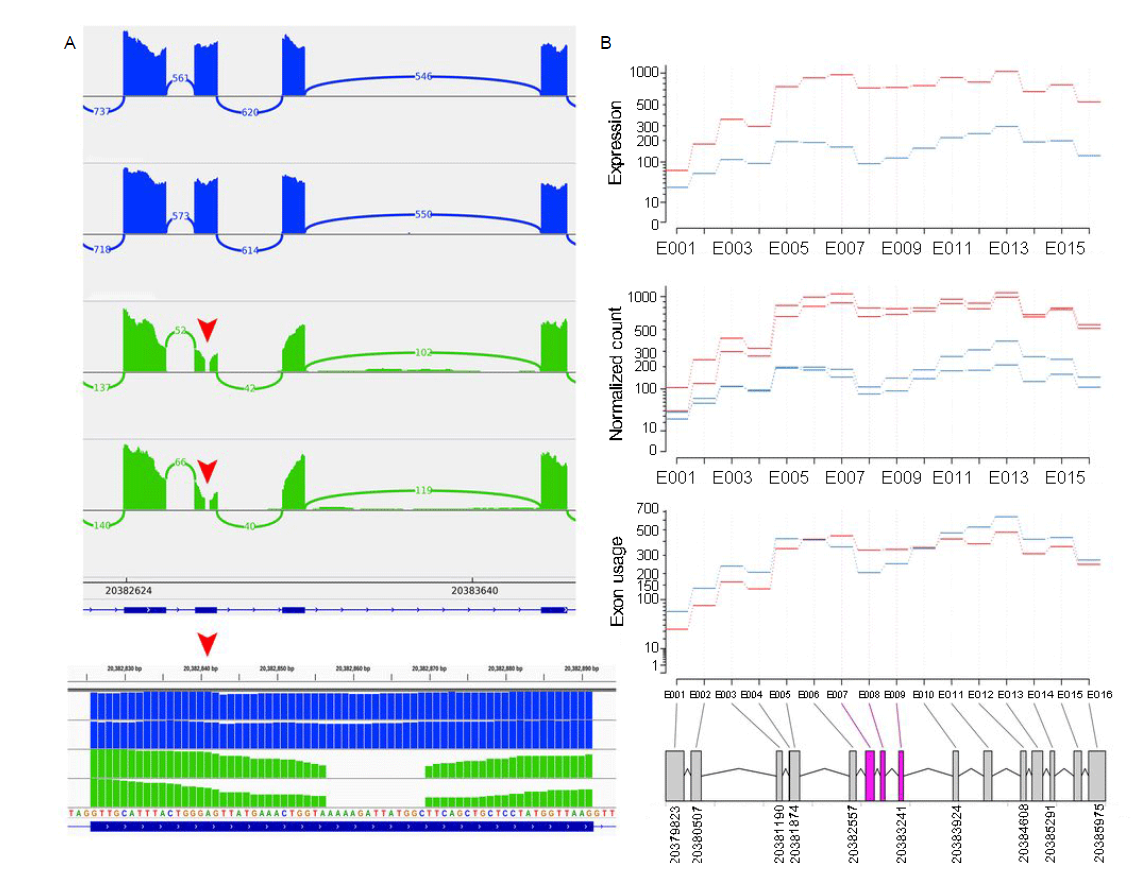

Fig. 5. RNA-Seq analysis of TN (Tai Nguyen, non-aromatic rice) and NTCD (Nang Thom Cho Dao, aromatic rice) derived from Vietnam. A, Visualization of RNA-Seq data generated by Integrative Genomics Viewer (IGV) program. Red arrows show the location of novel deletion. Alleles shown in blue are from TN, and alleles shown in green are from NTCD. B, Differential exon usage of RNA-Seq data between TN and NTCD in BADH2 gene. Boxes shown in pink are the exon that showed significant differential exon usage (false discovery rate < 0.05).

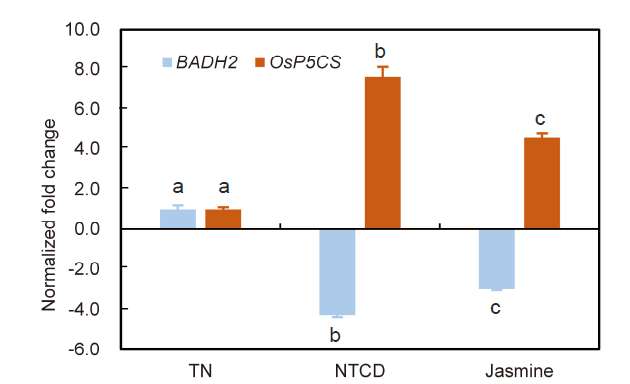

Fig. 6. Transcription levels of BADH2 and OsP5CS in leaves of Nang Thom Cho Dao (NTCD), Tai Nguyen (TN) and Jasmine. Different lowercase letters indicate significant differences between the samples (P < 0.05).

Table 1. Quantification of 2-acetyl-1-pyrroline (2AP) using gas chromatography-mass spectrometry.

Sample	2AP (µg/kg)
Tai Nguyen	Not detected
Jasmine	13.250 ± 0.116
Nang Thom Cho Dao	16.263 ± 0.213

Table 2. New functional markers for BADH2 were developed to discriminate Nang Thom Cho Dao (NTCD) from other fragrant rice varieties.

Marker	Sequence (5'-3')	Product type	Product (bp)	Reference
EAP	AGTGCTTTACAAAGTCCCGC	EA-ES	577 or 585	Bradbury et al, 2005
ESP	TTGTTTGGAGCTTGCTGATG	EA-ES	577 or 585
INSP	TGGTAAAAAGATTATGGCTTCA	IN-EA	355
IFAP	CATAGGAGCAGCTGAAATATATACC	ES-IF	257 (aromatic)
EX07-13F	TACCCCATCAATGGAAATGA	8 bp deletion with or without single nucleotide polymorphism (110 bp), while NTCD with 13 bp deletion without amplification		Developed in this study
EX07-13RN (normal)	GCAGCTGAAGCCATAATCTTTT
EX07-13RM (mutant)	GCAGCTGAAGCCATAATCTATA
