Editing of Rice Isoamylase Gene ISA1 Provides Insights into Its Function in Starch Formation

doi:10.1016/j.rsci.2018.07.001

Abstract

Abstract:

Isoamylase 1 (ISA1) is an isoamylase-type debranching enzyme which plays a predominant role in amylopectin synthesis. In this study, the clustered regularly interspaced short palindromic repeats (CRISPR)/CRISPR-associated endonuclease 9 (CRISPR/Cas9) system was used to edit ISA1 gene in rice via Agrobacterium-mediated transformation. We identified 36 genetic edited lines from 55 T₀ transgenic events, and classified the mutation forms into 7 types. Of those, two homozygous mutants, cr-isa1-1 (type 1, with an adenine insertion) and cr-isa1-2 (type 3, with a cytosine deletion) were selected for further analysis. Seed sizes of both cr-isa1-1 and cr-isa1-2 were affected, and the two mutants also displayed a shrunken endosperm with significantly lower grain weight. Electron microscopy analysis showed that abnormal starch granules and amyloplasts were found in cr-isa1-1 and cr-isa1-2 endosperm cells. The contents of total starch, amylose and amylopectin in the endosperm of the cr-isa1 mutants were significantly reduced, whereas sugar content and starch gel consistency were observably increased compared to the wild-type. The gelatinization temperature and starch chain length distributions of the cr-isa1 mutants were also altered. Moreover, transcript levels of most starch synthesis-related genes were significantly lower in cr-isa1 mutants. In conclusion, the results indicated that gene edition of ISA1 affected starch synthesis and endosperm development, and brought potential implications for rice quality breeding.

Key words: ISA1, rice, starch biosynthesis, starch granule, physicochemical property, CRISPR, Cas9

Shufen Chao, Yicong Cai, Baobing Feng, Guiai Jiao, Zhonghua Sheng, Ju Luo, Shaoqing Tang, Jianlong Wang, Peisong Hu, Xiangjin Wei. Editing of Rice Isoamylase Gene ISA1 Provides Insights into Its Function in Starch Formation[J]. Rice Science, 2019, 26(2): 77-87.

Figures/Tables 12

Supplemental Table 1 Primers used in this study

Primer name	Primer sequence
Target1-F	CAGTGGACGGCGTGAGCACGATC
Target1-R	AACGATCGTGCTCACGCCGTCCA
Sq-primer	CTCCTTCCTTCCGTCCACTTCATC
Hyg-F	GCTGTTATGCGGCCATTGTC
Hyg-R	GACGTCTGTCGAGAAGTTTC
Cas9-F	GAGACAAGCCGTTTCGTGG
Cas9-R	ATCAATCCGTTCTTGCCAG
Sq-primer	CTCCTTCCTTCCGTCCACTTCATC
Actin-F	TGCTATGTACGTCGCCATCCA
Actin-R	AATGAGTAACCACGCTCCGTC

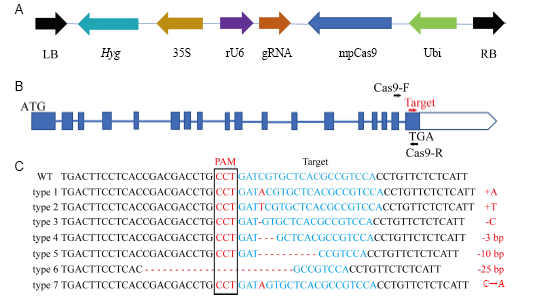

Fig. 1. CRISPR/Cas9 mediated editing of ISA1.A, The structure of the T-DNA region of the Cas9/guide RNV (gRNA) vector. Marker gene Hygromycin (Hyg) was driven by the CaMV35S (35S) promoter whereas the gRNA was driven by the rice U6 promoter and the mpCas9 was driven by the Ubiquitin (Ubi) promoter. LB, Left border; RB, Right border. B, The structure of ISA1 gene. The primer pairs (Cas9-F and Cas9-R) were used to amplify the region that was sequenced in the genotypes. C, Identification of generated mutation forms in ISA1 by sequencing of the target site (protospacer adjacent motif region) in T0 transgenic events. PAM, Protospacer adjacent motif. The mutation forms in all 36 T0 transgenic events can be divided into 7 categories. Homozygous mutations included type 1 to type 6, while a heterozygous mutation was classified as type 7. Type 1 and type 3 mutations were selected for further analysis.

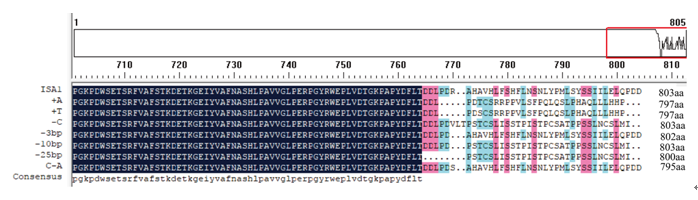

Supplemental Fig. 1. Amino acid sequence alignment of all mutation forms.Different background colors indicate different identities of multiple sequence alignments by DNAMAN. Residues in white with blue background means 100% identity; and those in black color with red background indicates 80% identity and those in black color with emerald blue background indicate 60% identity.

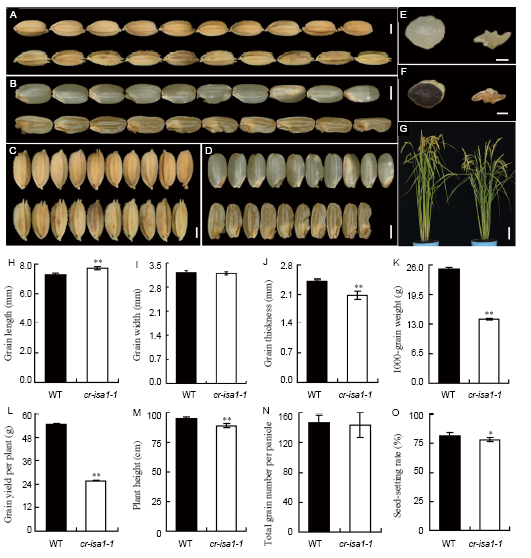

Fig. 2. Phenotypes of the wild-type (WT) and cr-isa1-1 mutant (T1 generation).A, Appearance of mature seeds for WT (above) and cr-isa1-1 (below). B, Appearance of brown rice for WT (above) and cr-isa1-1 (below). C, Grain widths of WT (above) and cr-isa1-1 (below). D, Brown rice widths of WT (above) and the cr-isa1-1 transgenic line (below). E, Cross sections of WT (left) and cr-isa1-1 transgenic line (right) brown rice. F, Iodine staining of brown rice in WT (left) and cr-isa1-1 transgenic line (right). G, Representative plants of WT (left) and cr-isa1-1 (right) after heading. H, Comparison of grain length. I, Comparison of grain width. J, Comparison of grain thickness. K, Comparison of 1000-grain weight. L, Comparison of grain yield per plant. M, Comparison of plant height. N, Comparison of total grain number per panicle. O, Comparison of seed-setting rate. Scale bars are 2 mm in A to D, 1 mm in E and F, and 10 cm in G. Values in H to O are Mean ± SD from three biological replicates, with no less than 50, 50, 50 and 200 seeds in each replication for H, I, J and K, and no less than 5 plants for L to O, respectively. Asterisks indicate statistical significance by the Student’s t-test (*, P < 0.05; **, P < 0.01).

Supplemental Fig. 2 The predicted three-dimensional protein structure of all mutation forms which was compared by using the tool Swiss-PdbViewer 4.1.0. The structure in yellow color represented the wild-type and structures in other colors all stand for the lines of cr-isa1. The red arrows indicated the differences of protein structure between wild-type and each cr-isa1 lines.

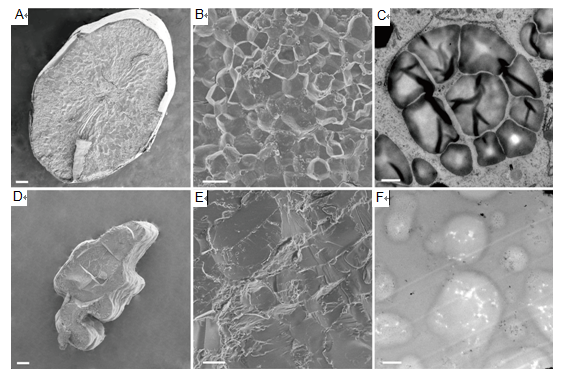

Fig. 3. Electron microscopy images of wild-type and cr-isa1-1 (T1 generation).A, Scanning electron microscopy (SEM) analysis of mature endosperm of wild-type. B, Central region of mature endosperm in the wild-type. C, Amyloplast in endosperm cells of wild-type at 10 d after flowering visualized by transmission electron microscopy analysis. D, SEM analysis of mature endosperm of the cr-isa1-1 transgenic plant. E, Central region of mature endosperm in cr-isa1-1. F, Amyloplast in endosperm cells of cr-isa1-1 at 10 d after flowering visualized by transmission electron microscopy analysis. Scale bars are 0.2 mm in A and D, 10 μm in B and E, and 1 μm in C and F.

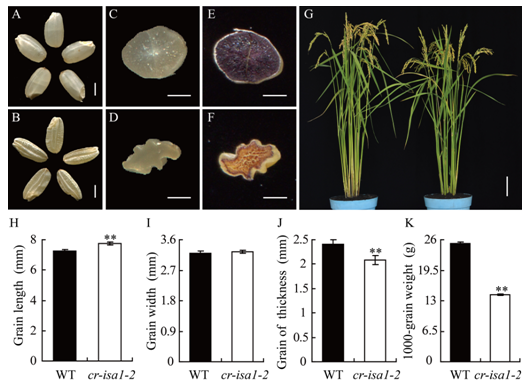

Supplemental Fig. 3 Phenotype of the cr-isa1-2 mutant (T1 generation).A, Appearance of the wild-type (WT). B, Appearance of cr-isa1-2. C, Cross section of WT brown rice. D, Cross section of cr-isa1-2 brown rice. E, Iodine stained phenotype of brown rice of WT. F, Iodine stained phenotype of brown rice of cr-isa1-2. G, Representative plants of WT and cr-isa1-2 after heading. H, Grain length, I, Grain width, J, Grain thickness. K, 1000-grain weight. Scale bar: 2 mm in A-B, 1 mm in C-F and 10 cm in G. Values are Mean ± SD with three biological replicates, at least 50, 10 and 200 seeds in each replication in H, I, J and K, respectively. Asterisks in H-K indicate statistical significance compared with the WT, as determined by Student’s t-test (*P < 0.05, **P < 0.01).

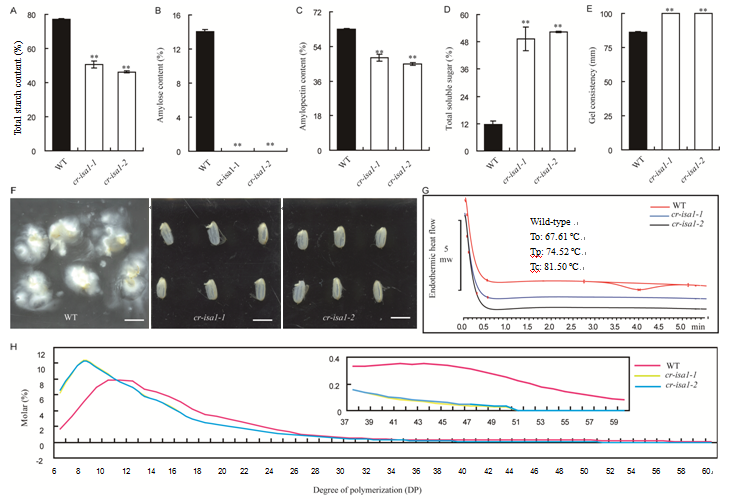

Fig. 4. Starch physicochemical characteristics analysis in T1 generation of cr-isa1 mutants.A, Total starch content. B, Amylose content. C, Amylopectin content. D, Total soluble sugar. E, Gel consistency. F, Starch solubility in KOH solution (Scale bar is 5 mm). G, Thermal characteristics presented by modulated differential scanning calorimetry (MDSC) curves. To, Onset temperature, Tp, Peak temperature; Tc, Conclusion temperature. H, Chain length distributions of amylopectin in wild-type (WT) and cr-isa1. The picture in the upper right corner shows the enlarged region with degree of polymerization ranging from 37 to 60. Data are shown as Mean ± SD (n = 3). Asterisks indicate the statistical significance by the Student’s t-test at the 0.01 level.

Supplemental Fig. 4 Electron microscopy images of cr-isa1-2 (T1) endosperm.A, SEM image of the central region of mature endosperm of the wild-type. B, TEM image of an amyloplast in 10 DAF endosperm cells of the wild-type. C, SEM image of the central region of mature endosperm of cr-isa1-2. D, TEM image of an amyloplast in 10 DAF endosperm cells of cr-isa1-2. Scale bar: 5?m. SEM, Scanning electron microscopy; DAF, days after fertilization; TEM, Transmission electron microscopy.

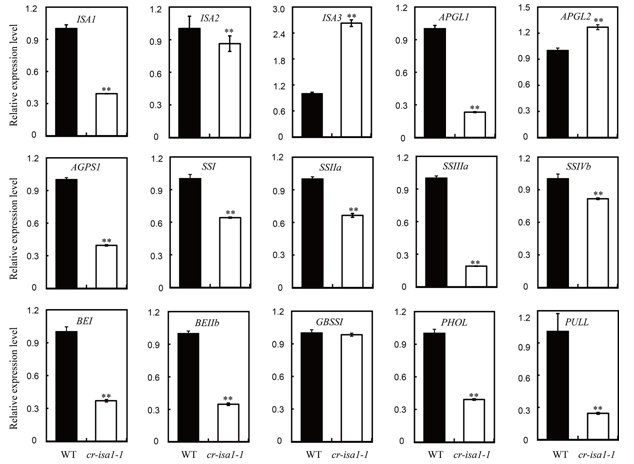

Fig. 5. Relative expression levels of starch metabolism related genes in seeds at 10 d after flowering in wild-type (WT) and cr-isa1-1 (T1).Total RNA extracted from developing seeds at 10 d after flowering was used for quantitative real-time PCR analysis. Expression level of each gene in the wild-type was set as reference value of 1. Data are Mean ± SD (n = 3). Asterisks indicate the statistical significance between wild-type and the cr-isa1-1 as determined by the Student’s t-test at the 0.01 level.

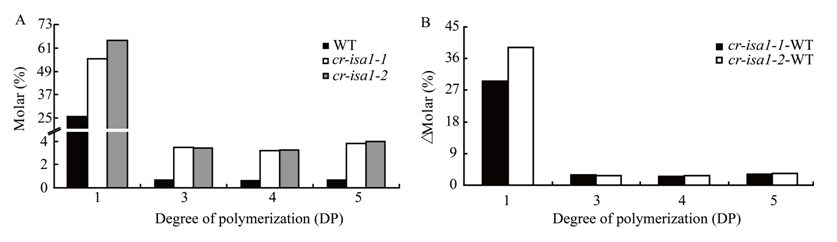

Supplemental Fig. 5 Short chain length distributions of amylopectin in cr-isa1.A, Chain length distributions in the range of DP 1-5 of amylopectin in WT and cr-isa1 mutants. B, Differences in the amylopectin chain length distributions in the range of DP 1-5 between cr-isa1 and the WT.

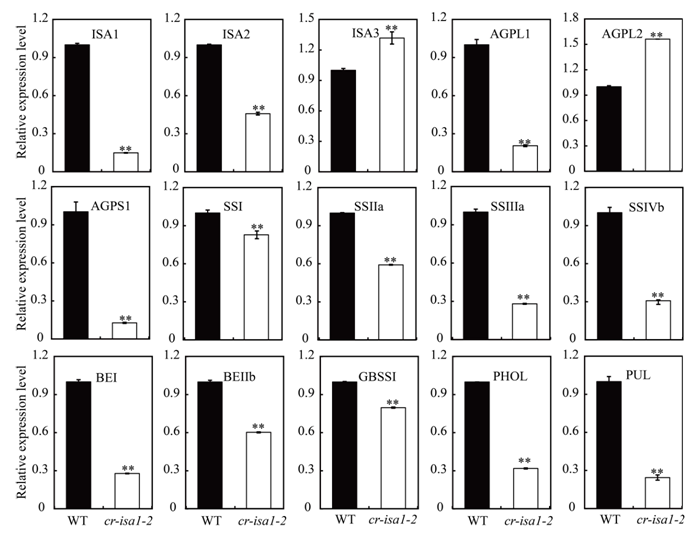

Supplemental Fig. 6 Expression level of starch metabolism related genes in wild-type and cr-isa1-2 (T1) 10 DAF seeds.Total RNA was extracted from 10 DAF developing seeds for qRT-PCR analysis. Expression level of each gene in the wild-type was set as reference value of 1. Data are displayed as means ± SD with three biological replicates. Asterisks indicate the statistical significance between wild-type and the cr-isa1-2 as determined by a Student’s t-test (*P < 0.05; **P < 0.01). DAF, Days after fertilization.
