Effects of Zinc Oxide Particles with Different Sizes on Root Development in Oryza sativa

doi:10.1016/j.rsci.2023.03.016

Abstract

Abstract:

Given the consistent release of zinc oxide (ZnO) nanoparticles into the environment, it is urgent to study their impact on plants in depth. In this study, grains of rice were treated with two different concentrations of ZnO nanoparticles (NP-ZnO, 10 and 100 mg/L), and their bulk counterpart (B-ZnO) were used to evaluate whether ZnO action could depend on particle size. To test this hypothesis, root growth and development assessment, oxidative stress parameters, indole-3-acetic acid (IAA) content and molecules/enzymes involved in IAA metabolism were analyzed. In situ localization of Zn in control and treated roots was also performed. Though Zn was visible inside root cells only following nanoparticle treatment, both materials (NP-ZnO and B-ZnO) were able to affect seedling growth and root morphology, with alteration in the concentration/pattern of localization of oxidative stress markers and with a different action depending on particle size. In addition, only ZnO supplied as bulk material induced a significant increase in both IAA concentration and lateral root density, supporting our hypothesis that bulk particles might enhance lateral root development through the rise of IAA concentration. Apparently, IAA concentration was influenced more by the activity of the catabolic peroxidases than by the protective action of phenols.

Key words: zinc oxide, indole-3-acetic acid, lateral root, rice, bulk particle, nanoparticle

Monica Ruffini Castiglione, Stefania Bottega, Carlo Sorce, Carmelina SpanÒ. Effects of Zinc Oxide Particles with Different Sizes on Root Development in Oryza sativa[J]. Rice Science, 2023, 30(5): 449-458.

Figures/Tables 6

Table 1. Lengths of root and coleoptile, and concentrations of hydrogen peroxide, thiobarbituric acid reactive substance (TBARS) and phenol in rice after 7 d of imbibition under different conditions.

Condition	Root length (RL, mm)	Coleoptile length (CL, mm)	Ratio of RL to CL	H₂O₂ concentration (µmol/g)	TBARS concentration (nmol/g)	Phenol concentration (mg/g)
Water	76.49 ± 3.03 a	23.71 ± 0.67 bc	3.22 ± 0.12 a	0.50 ± 0.02 b	12.06 ± 0.14 b	0.35 ± 0.00 b
NP10	85.58 ± 2.59 a	27.28 ± 0.75 a	3.14 ± 0.22 a	0.47 ± 0.07 b	12.84 ± 0.07 a	0.31 ± 0.00 d
NP100	62.80 ± 1.84 b	25.64 ± 0.76 b	2.45 ± 0.04 b	0.72 ± 0.07 a	10.41 ± 0.14 c	0.44 ± 0.01 a
B10	76.27 ± 2.62 a	21.25 ± 0.75 c	3.59 ± 0.24 a	0.49 ± 0.07 b	9.64 ± 0.07 d	0.26 ± 0.00 e
B100	54.25 ± 1.99 b	22.35 ± 0.68 c	2.43 ± 0.03 b	0.61 ± 0.02 ab	10.28 ± 0.14 c	0.33 ± 0.00 c

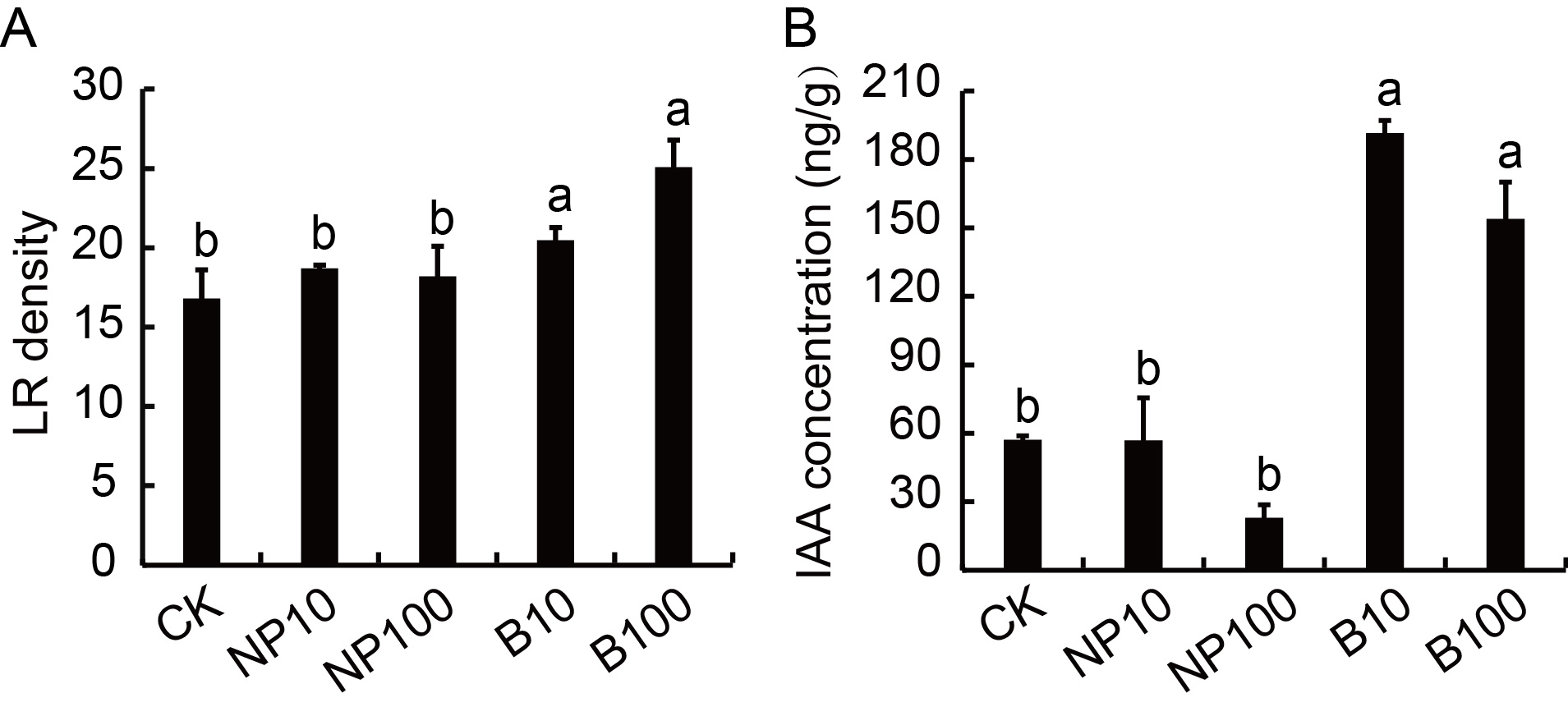

Fig. 1. Lateral root (LR) density (A, expressed as number of LRs/cm) and indole-3-acetic acid concentration (IAA, B) in roots of rice after 7 d of imbibition under different conditions. CK, Control (water); NP10, 10 mg/L zinc oxide nanoparticle (NP-ZnO); NP100, 100 mg/L NP-ZnO; B10, 10 mg/L bulk counterpart (B-ZnO); B100, 100 mg/L B-ZnO. Data are Mean ± SE (n = 4). Different lowercase letters above the bars indicate significant differences by the post hoc Tukey test (P ≤ 0.05).

Fig. 2. Histochemical detection of Zn in rice roots of comparable developmental stage after treatment with dithizone. A and B, Control (water); C and D, 10 mg/L zinc oxide nanoparticle (NP-ZnO); E and F, 100 mg/L NP-ZnO; G and H, 10 mg/L bulk counterpart (B-ZnO); I and J, 100 mg/L B-ZnO. The images on the right side show representative details at higher magnification of the roots on the left side.

Fig. 3. Histochemical detection of H2O2 by amplex ultra-red reagent (A) and lipid peroxidation by bodipy reagent (B). CK, Control (water); NP10, 10 mg/L zinc oxide nanoparticle (NP-ZnO); NP100, 100 mg/L NP-ZnO; B10, 10 mg/L bulk counterpart (B-ZnO); B100, 100 mg/L B-ZnO.

Fig. 4. Indole-3-acetic acid (IAA) oxidation activity (A), guaiacol peroxidase (POX) activity (B) and native polyacrylamide gel electrophoresis of guaiacol peroxidase (C) from rice roots after 7 d of imbibition. In A and B, enzymatic activities are expressed as U/mg protein. CK, Control (water); NP10, 10 mg/L zinc oxide nanoparticle (NP-ZnO); NP100, 100 mg/L NP-ZnO; B10, 10 mg/L bulk counterpart (B-ZnO); B100, 100 mg/L B-ZnO. Data are Mean ± SE (n = 4). In C, B1, B2, B3 and B4 represent different bands of enzymatic activity.

References 56

[1]	Alarcón M V, Salguero J, Lloret P G. 2019. Auxin modulated initiation of lateral roots is linked to pericycle cell length in maize. Front Plant Sci, 10: 11. PMID
[2]	Ali B, Saleem M H, Ali S, Shahid M, Sagir M, Tahir M B, Qureshi K A, Jaremko M, Selim S, Hussain A, Rizwan M, Ishaq W, Rehman M Z. 2022. Mitigation of salinity stress in barley genotypes with variable salt tolerance by application of zinc oxide nanoparticles. Front Plant Sci, 13: 973782.
[3]	Ali S, Rizwan M, Noureen S, Anwar S, Ali B, Naveed M, Abd_Allah E F, Alqarawi A A, Ahmad P. 2019. Combined use of biochar and zinc oxide nanoparticle foliar spray improved the plant growth and decreased the cadmium accumulation in rice (Oryza sativa L.) plant. Environ Sci Pollut Res, 26(11): 11288-11299.
[4]	Aloni R, Aloni E, Langhans M, Ullrich C I. 2006. Role of cytokinin and auxin in shaping root architecture: Regulating vascular differentiation, lateral root initiation, root apical dominance and root gravitropism. Ann Bot, 97(5): 883-893.
[5]	Arezki O, Boxus P, Kevers C, Gaspar T. 2001. Changes in peroxidase activity, and level of phenolic compounds during light-induced plantlet regeneration from Eucalyptus camaldulensis Dehn. nodes in vitro. Plant Growth Regul, 33(3): 215-219.
[6]	Beffa R, Martin H V, Pilet P E. 1990. In vitro oxidation of indoleacetic acid by soluble auxin-oxidases and peroxidases from maize roots. Plant Physiol, 94(2): 485-491. PMID
[7]	Bellini C, Pacurar D I, Perrone I. 2014. Adventitious roots and lateral roots: Similarities and differences. Annu Rev Plant Biol, 65: 639-666. PMID
[8]	Bradford M M. 1976. A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding. Anal Biochem, 72: 248-254. PMID
[9]	Du Y J, Scheres B. 2018. Lateral root formation and the multiple roles of auxin. J Exp Bot, 69(2): 155-167. PMID
[10]	Duarte R F, Prom-u-thai C, Amaral D C, Faquin V, Guilherme L R G, Reis A R, Alves E. 2016. Determination of zinc in rice grains using DTZ staining and ImageJ software. J Cereal Sci, 68: 53-58.
[11]	Dubrovsky J G, Sauer M, Napsucialy-Mendivil S, Ivanchenko M G, Friml J, Shishkova S, Celenza J, Benková E. 2008. Auxin acts as a local morphogenetic trigger to specify lateral root founder cells. Proc Natl Acad Sci USA, 105(25): 8790-8794. PMID
[12]	Doroteo V H, Díaz C, Terry C, Rojas R. 2013. Phenolic compounds and antioxidant activity in vitro of 6 Peruvian plants. J Peruvian Chem Soc, 79(1): 13-20. (in Spanish with English abstract)
[13]	Giorgetti L, Spanò C, Muccifora S, Bellani L, Tassi E, Bottega S, Di Gregorio S, Siracusa G, Sanità di Toppi L, Ruffini Castiglione M. 2019. An integrated approach to highlight biological responses of Pisum sativum root to nano-TiO₂ exposure in a biosolid-amended agricultural soil. Sci Total Environ, 650(2): 2705-2716.
[14]	Hambidge K M, Cousins R J, Costello R B. 2000. Zinc and health: Current status and future directions. J Nutr, 130: 1437-1446.
[15]	Hernandez-Viezcas J A, Castillo-Michel H, Servin A D, Peralta-Videa J R, Gardea-Torresdey J L. 2011. Spectroscopic verification of zinc absorption and distribution in the desert plant Prosopis juliflora-velutina (velvet mesquite) treated with ZnO nanoparticles. Chem Eng J, 170(1/3): 346-352.
[16]	Jana S, Choudhuri M A. 1982. Glycolate metabolism of three submersed aquatic angiosperms during ageing. Aquat Bot, 12: 345-354.
[17]	Jing H W, Strader L C. 2019. Interplay of auxin and cytokinin in lateral root development. Int J Mol Sci, 20(3): 486.
[18]	Krylov S N, Dunford H B. 1996. Detailed model of the peroxidase-catalyzed oxidation of indole-3-acetic acid at neutral pH. J Phys Chem, 100(2): 913-920.
[19]	Lavenus J, Goh T, Roberts I, Guyomarc’h S, Lucas M, De Smet I, Fukaki H, Beeckman T, Bennett M, Laplaze L. 2013. Lateral root development in Arabidopsis: Fifty shades of auxin. Trends Plant Sci, 18(8): 450-458. PMID
[20]	Li G J, Kronzucker H J, Shi W M. 2016. The response of the root apex in plant adaptation to iron heterogeneity in soil. Front Plant Sci, 7: 344. PMID
[21]	Lin D H, Xing B S. 2008. Root uptake and phytotoxicity of ZnO nanoparticles. Environ Sci Technol, 42(15): 5580-5585. PMID
[22]	Lv B S, Yan Z W, Tian H Y, Zhang X S, Ding Z J. 2019. Local auxin biosynthesis mediates plant growth and development. Trends Plant Sci, 24(1): 6-9. PMID
[23]	Ma H B, Williams P L, Diamond S A. 2013. Ecotoxicity of manufactured ZnO nanoparticles: A review. Environ Pollut, 172: 76-85.
[24]	Malamy J E, Benfey P N. 1997. Organization and cell differentiation in lateral roots of Arabidopsis thaliana Development, 124(1): 33-44. PMID
[25]	Medina-Velo I A, Barrios A C, Zuverza-Mena N, Hernandez-Viezcas J A, Chang C H, Ji Z X, Zink J I, Peralta-Videa J R, Gardea-Torresdey J L. 2017. Comparison of the effects of commercial coated and uncoated ZnO nanomaterials and Zn compounds in kidney bean (Phaseolus vulgaris) plants. J Hazard Mater, 332: 214-222. PMID
[26]	Meng F N, Xiang D, Zhu J S, Li Y, Mao C Z. 2019. Molecular mechanisms of root development in rice. Rice, 12(1): 1. PMID
[27]	Milone M T, Sgherri C, Clijsters H, Navari-Izzo F. 2003. Antioxidative responses of wheat treated with realistic concentration of cadmium. Environ Exp Bot, 50(3): 265-276.
[28]	Molnár Á, Rónavári A, Bélteky P, Szőllősi R, Valyon E, Oláh D, Rázga Z, Ördög A, Kónya Z, Kolbert Z. 2020. ZnO nanoparticles induce cell wall remodeling and modify ROS/RNS signalling in roots of Brassica seedlings. Ecotoxicol Environ Saf, 206: 111158.
[29]	Montanaro G, Treutter D, Xiloyannis C. 2007. Phenolic compounds in young developing kiwifruit in relation to light exposure: Implications for fruit calcium accumulation. J Plant Interact, 2(1): 63-69.
[30]	Mousavi Kouhi S M, Lahouti M, Ganjeali A, Entezari M H. 2015. Long-term exposure of rapeseed (Brassica napus L.) to ZnO nanoparticles: Anatomical and ultrastructural responses. Environ Sci Pollut Res Int, 22(14): 10733-10743.
[31]	Nemček L, Šebesta M, Urík M, Bujdoš M, Dobročka E, Vávra I. 2020. Impact of bulk ZnO, ZnO nanoparticles and dissolved Zn on early growth stages of barley: A pot experiment. Plants-Basel, 9(10): 1365.
[32]	Normanly J, Slovin J P, Cohen J D. 2010. Hormone biosynthesis, metabolism and its regulation:Auxin biosynthesis and metabolism. In: Davies P J. Plant Hormones:Biosynthesis. Signal Transduction, Action. Dordrecht, the Netherlands, Springer: 36-62.
[33]	Overvoorde P, Fukaki H, Beeckman T. 2010. Auxin control of root development. Cold Spring Harb Perspect Biol, 2(6): a001537.
[34]	Pandimurugan R, Thambidurai S. 2016. Novel seaweed capped ZnO nanoparticles for effective dye photodegradation and antibacterial activity. Adv Powder Technol, 27(4): 1062-1072.
[35]	Parida A K, Das A B. 2005. Salt tolerance and salinity effects on plants: A review. Ecotoxicol Environ Saf, 60(3): 324-349.
[36]	Péret B, de Rybel B, Casimiro I, Benková E, Swarup R, Laplaze L, Beeckman T, Bennett M J. 2009. Arabidopsis lateral root development: An emerging story. Trends Plant Sci, 14(7): 399-408.
[37]	Pilet P E, Lavanchy P. 1969. Purification of peroxidase extracts (roots of Lens) with ‘auxin-oxidase’ activity. Physiol Veg, 7: 19-29. (in French)
[38]	Potters G, Pasternak T P, Guisez Y, Palme K J, Jansen M A K. 2007. Stress-induced morphogenic responses: Growing out of trouble. Trends Plant Sci, 12(3): 98-105. PMID
[39]	Rajput V D, Minkina T, Fedorenko A, Chernikova N, Hassan T, Mandzhieva S, Sushkova S, Lysenko V, Soldatov M A, Burachevskaya M. 2021. Effects of zinc oxide nanoparticles on physiological and anatomical indices in spring barley tissues. Nanomaterials, 11(7): 1722.
[40]	Rice-Evans C, Miller N, Paganga G. 1997. Antioxidant properties of phenolic compounds. Trends Plant Sci, 2(4): 152-159.
[41]	Ruiz-Torres N, Flores-Naveda A, Barriga-Castro E D, Camposeco-Montejo N, Ramírez-Barrón S, Borrego-Escalante F, Niño-Medina G, Hernández-Juárez A, Garza-Alonso C, Rodríguez-Salinas P, García-López J I. 2021. Zinc oxide nanoparticles and zinc sulfate impact physiological parameters and boosts lipid peroxidation in soil grown coriander plants (Coriandrum sativum). Molecules, 26(7): 1998.
[42]	Sorce C, Montanaro G, Bottega S, Spanò C. 2017. Indole-3-acetic acid metabolism and growth in young kiwifruit berry. Plant Growth Regul, 82(3): 505-515.
[43]	Spanò C, Bottega S, Ruffini Castiglione M, Pedranzani H E. 2017. Antioxidant response to cold stress in two oil plants of the genus Jatropha. Plant Soil Environ, 63(6): 271-276.
[44]	Spanò C, Bottega S, Sorce C, Bartoli G, Ruffini Castiglione M. 2019. TiO₂ nanoparticles may alleviate cadmium toxicity in co-treatment experiments on the model hydrophyte Azolla filiculoides. Environ Sci Pollut Res, 26(29): 29872-29882.
[45]	Spanò C, Bottega S, Bellani L, Muccifora S, Sorce C, Ruffini Castiglione M. 2020. Effect of zinc priming on salt response of wheat seedlings: Relieving or worsening. Plants, 9(11): 1514.
[46]	Srivastav A, Ganjewala D, Singhal R K, Rajput V D, Minkina T, Voloshina M, Srivastava S, Shrivastava M. 2021. Effect of ZnO nanoparticles on growth and biochemical responses of wheat and maize. Plants-Basel, 10(12): 2556.
[47]	Su G X, Zhang W H, Liu Y L. 2006. Involvement of hydrogen peroxide generated by polyamine oxidative degradation in the development of lateral roots in soybean. J Integr Plant Biol, 48(4): 426-432.
[48]	Sun Z Q, Xiong T T, Zhang T, Wang N F, Chen D, Li S S. 2019. Influences of zinc oxide nanoparticles on Allium cepa root cells and the primary cause of phytotoxicity. Ecotoxicology, 28(2): 175-188.
[49]	Vimercati L, Cavone D, Caputi A, De Maria L, Tria M, Prato E, Ferri G M. 2020. Nanoparticles: An experimental study of zinc nanoparticles toxicity on marine crustaceans: General overview on the health implications in humans. Front Public Health, 8: 192. PMID
[50]	Wang J H, Moeen-ud-din M, Yang S H. 2021. Dose-dependent responses of Arabidopsis thaliana to zinc are mediated by auxin homeostasis and transport. Environ Exp Bot, 189: 104554.
[51]	Wang X P, Yang X Y, Chen S Y, Li Q Q, Wang W, Hou C J, Gao X, Wang L, Wang S C. 2016. Zinc oxide nanoparticles affect biomass accumulation and photosynthesis in Arabidopsis. Front Plant Sci, 6: 1243.
[52]	Wang Y S, Ding M D, Gu X G, Wang J L, Pang Y L, Gao L P, Xia T. 2013. Analysis of interfering substances in the measurement of malondialdehyde content in plant leaves. Am J Biochem Biotechnol, 9(3): 235-242.
[53]	Yamamoto Y, Kamiya N, Morinaka Y, Matsuoka M, Sazuka T. 2007. Auxin biosynthesis by the YUCCA genes in rice. Plant Physiol, 143(3): 1362-1371. PMID
[54]	Zhang J, Peer W A. 2017. Auxin homeostasis: The DAO of catabolism. J Exp Bot, 68(12): 3145-3154. PMID
[55]	Zhang R C, Zhang H B, Tu C, Hu X F, Li L Z, Luo Y M, Christie P. 2015. Phytotoxicity of ZnO nanoparticles and the released Zn(II) ion to corn (Zea mays L.) and cucumber (Cucumis sativus L.) during germination. Environ Sci Pollut Res Int, 22(14): 11109-11117.
[56]	Zoufan P, Baroonian M, Zargar B. 2020. ZnO nanoparticles-induced oxidative stress in Chenopodium murale L, Zn uptake, and accumulation under hydroponic culture. Environ Sci Pollut Res, 27(10): 11066-11078.
