Rice Science ›› 2019, Vol. 26 ›› Issue (3): 167-177.DOI: 10.1016/j.rsci.2019.04.003
• Research Papers • Previous Articles Next Articles
T. Bui Liem1(), S. Ella Evangelina2, L. Dionisio-Sese Maribel3, M. Ismail Abdelbagi2
Received:
2018-03-27
Accepted:
2018-07-03
Online:
2019-05-28
Published:
2019-01-25
T. Bui Liem, S. Ella Evangelina, L. Dionisio-Sese Maribel, M. Ismail Abdelbagi. Morpho-Physiological Changes in Roots of Rice Seedling upon Submergence[J]. Rice Science, 2019, 26(3): 167-177.
Add to citation manager EndNote|Ris|BibTeX

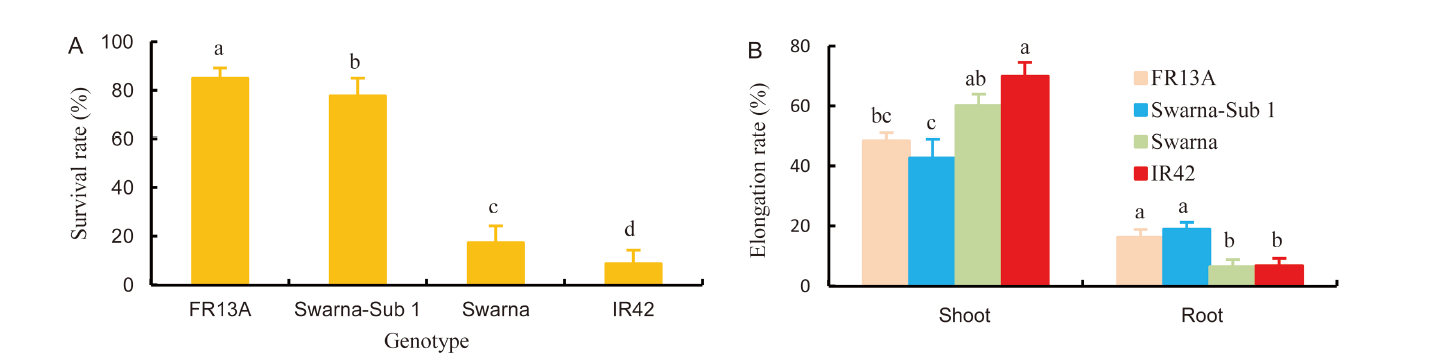

Fig. 1. Survival rate and elongation rate during submergence. A, Plant survival rate after recovery from 12 d of complete submergence. B, Shoot elongation and root elongation during submergence. Within groups, means followed by different letters are significantly different at the 0.05 level using the Duncan’s multiple range test. Bars are standard errors (n = 3).
Fig. 2. Photomicrographs of rice root tips stained with 2,7-dichlorofluorescein diacetate. Root tips with brighter light are more active than darker ones.
Fig. 3. Physiological parameters before and after submergence.A, Shoot dry weight before and after 12 d submergence. B, Root dry weight before and after 12 d submergence. C, Total chlorophyll concentration before and after 12 d submergence. D, Effect of submergence on malondialdehyde (MDA) concentration in roots before and after 12 d submergence. E, Effect of submergence on electrolyte leakage (EL) in roots before and after 12 d submergence. F, Effect of submergence on root peroxidase (POD) activity before submergence and after 7 d and 12 d of submergence. Within groups, means followed by the same lowercase letters are not significantly different at P < 0.05 using the Duncan’s multiple range test. Data are Mean ± SE (n = 3).
Genotype | Shoot | Root | |||||
---|---|---|---|---|---|---|---|
BS (%) | AS (%) | BS (%) | AS (%) | ||||
FR13A | 89.24 | 86.21 | 10.76 | 13.79 | |||
Swarna-Sub 1 | 89.09 | 81.04* | 10.91 | 18.96* | |||
Swarna | 88.86 | 83.39 | 11.14 | 16.6 | |||
IR42 | 89.98 | 79.99* | 10.02 | 20.01* |
Table 1 Percentage of shoot and root biomass of four rice genotypes before and after 12 d submergence.
Genotype | Shoot | Root | |||||
---|---|---|---|---|---|---|---|
BS (%) | AS (%) | BS (%) | AS (%) | ||||
FR13A | 89.24 | 86.21 | 10.76 | 13.79 | |||
Swarna-Sub 1 | 89.09 | 81.04* | 10.91 | 18.96* | |||
Swarna | 88.86 | 83.39 | 11.14 | 16.6 | |||
IR42 | 89.98 | 79.99* | 10.02 | 20.01* |
Genotype | Root | Shoot | Seedling | |||||
---|---|---|---|---|---|---|---|---|
BS | AS | BS | AS | BS | AS | |||
FR13A | 8.20 a | 9.83 a | 52.72 a | 20.83 a | 60.91 a | 30.66 a | ||
Swarna-Sub 1 | 5.83 b | 7.29 b | 24.24 b | 21.42 a | 30.06 b | 28.71 a | ||
Swarna | 5.67 b | 6.04 b | 24.68 b | 18.45 b | 30.36 b | 24.50 b | ||
IR42 | 6.52 b | 5.04 b | 26.19 b | 18.72 b | 32.71 b | 23.76 b |
Table 2 Non-structural carbohydrate (starch and soluble sugar) concentrations in rice roots, shoots and seedlings. mg/g
Genotype | Root | Shoot | Seedling | |||||
---|---|---|---|---|---|---|---|---|
BS | AS | BS | AS | BS | AS | |||
FR13A | 8.20 a | 9.83 a | 52.72 a | 20.83 a | 60.91 a | 30.66 a | ||
Swarna-Sub 1 | 5.83 b | 7.29 b | 24.24 b | 21.42 a | 30.06 b | 28.71 a | ||
Swarna | 5.67 b | 6.04 b | 24.68 b | 18.45 b | 30.36 b | 24.50 b | ||
IR42 | 6.52 b | 5.04 b | 26.19 b | 18.72 b | 32.71 b | 23.76 b |
Fig. 4. Correlation between seedling survival rate with elongation rate during submergence (A), root peroxidase activity at 7 d and 12 d of submergence (B), membrane damage measured as relative electrolyte leakage (C), and root MDA and root electrolyte leakage at 7 d of submergence (D). MDA, Malondialdehyde; EL, Electrolyte leakage.
[1] | Armstrong W.1979. Aeration in higher plants.Adv Bot Res, 7: 225-332. |
[2] | Arnon D I.1949. Copper enzymes in isolated chloroplasts: Polyphenoloxidase in Beta vulgaris. Plant Physiol, 24(1): 1-15. |
[3] | Bailey-Serres J, Voesenek L A C J.2008. Flooding stress acclimations and genetic diversity.Annu Rev Plant Biol, 59: 313-339. |
[4] | Bailey-Serres J, Fukao F, Ronald P, Ismail A, Heuer S, Mackill D, 2010. Submergence tolerant rice:SUB1’s journey from landrace to modern cultivar. Rice, 3: 138-147. |
[5] | Das A, Uchimiya H.2002. Oxygen stress and adaptation of a semi- aquatic plant: Rice (Oryza sativa). J Plant Res, 115(5): 315-320. |
[6] | Das K K, Sarkar R K, Ismail A M.2005. Elongation ability and non-structural carbohydrate levels in relation to submergence tolerance in rice.Plant Sci, 168(1): 131-136. |
[7] | Das K K, Panda D, Sarkar R K, Reddy J N, Ismail A M.2009. Submergence tolerance in relation to variable floodwater conditions in rice.Environ Exp Bot, 66(3): 425-434. |
[8] | Davies D D.1980. Anaerobic metabolism and the production of organic acids. In: Stumpf P K, Conn E E. The biochemistry of plants: A comprehensive treatise. Vol 2. New York, USA: Academic Press: 581-611. |
[9] | Dennis E S, Dolferus R, Ellis M, Rahman M, Wu Y, Hoeren F U, Grover A, Ismond K P, Good A G, Peacock W J.2000. Molecular strategies for improving waterlogging tolerance in plants.J Exp Bot, 51: 89-97. |
[10] | Dionisio-Sese M L, Tobita S.1998. Antioxidant responses of rice seedlings to salinity stress.Plant Sci, 135(1): 1-9. |
[11] | Drew M C.1997. Oxygen deficiency and root metabolism: Injury and acclimation under hypoxia and anoxia.Annu Rev Plant Biol, 48: 223-250. |
[12] | Ella E S, Kawano N, Ito O.2003a. Importance of active oxygen- scavenging system in the recovery of rice seedlings after submergence.Plant Sci, 165(1): 85-93. |
[13] | Ella E S, Kawano N, Yamauchi Y, Tanaka K, Ismail A M.2003b. Blocking ethylene perception enhances flooding tolerance in rice seedlings.Funct Plant Biol, 30: 813-819. |
[14] | Ella E S, Ismail A M.2006. Seedling nutrient status before submergence affect survival after submergence in rice.Crop Sci, 46(4): 1673-1681. |
[15] | Ella E S, Dionisio-Sese M L, Ismail A M.2010. Proper management improves seedling survival and growth during early flooding in contrasting rice genotypes.Crop Sci, 50(5): 1997-2008. |
[16] | Fales F W.1951. The assimilation and degradation of carbohydrates by yeast cells.J Biol Chem, 193(1): 113-124. |
[17] | Felle H H.2005. pH regulation in anoxic plants.Ann Bot, 96(4): 519-532. |
[18] | Fukao T, Xu K, Ronald P C, Bailey-Serres J.2006. A variable cluster of ethylene response factor-like genes regulates metabolic and developmental acclimation responses to submergence in rice.Plant Cell, 18(8): 2021-2034. |
[19] | Fukao T, Bailey-Serres J.2008a. Submergence tolerance conferred by Sub1A is mediated by SLR1 and SLRL1 restriction of gibberellin responses in rice. Proc Natl Acad Sci USA, 105: 16814-16819. |
[20] | Fukao T, Bailey-Serres J.2008b. Ethylene: A key regulator of submergence responses in rice.Plant Sci, 175: 43-51. |
[21] | Gautam P, Nayak A K, Lal B, Bhattacharyya P, Tripathi R, Shahid M, Mohanty S, Raja R, Panda B B.2014. Submergence tolerance in relation to application time of nitrogen and phosphorus in rice (Oryza sativa L.). Environ Exp Bot, 99: 159-166. |
[22] | Gautam P, Lal B, Tripathi R, Shahid M, Baig M J, Raja R, Maharana S, Nayak A K.2016. Role of silica and nitrogen interaction in submergence tolerance of rice.Environ Exp Bot, 125: 98-109. |
[23] | Gibbs J, Greenway H.2003. Mechanisms of anoxia tolerance in plants: I. Growth, survival and anaerobic catabolism.Funct Plant Biol, 30(1): 1-47. |
[24] | Ismail A M, Ella E S, Vergara G V, Mackill D J.2009. Mechanisms associated with tolerance to flooding during germination and early seedling growth in rice (Oryza sativa L.). Ann Bot, 103(2): 197-209. |
[25] | Jackson M B.1985. Ethylene and responses of plants to soil waterlogging and submergence.Ann Rev Plant Physiol, 36: 145-174. |
[26] | Jackson M B, Waters I, Setter T, Greenway H.1987. Injury to rice plants caused by complete submergence: A contribution by ethylene.J Exp Bot, 38: 1826-1838. |
[27] | Jackson M B, Ram P C.2003. Physiological and molecular basis of susceptibility and tolerance of rice plants to complete submergence.Ann Bot, 91(2): 227-241. |
[28] | Jackson M B.2008. Ethylene-promoted elongation: An adaptation to submergence stress.Ann Bot, 101(2): 229-248. |
[29] | Jackson M B, Ismail A M.2015. Introduction to the special issue: Electrons, water and rice fields: Plant response and adaptation to flooding and submergence stress.AoB Plants, 7: 1-10. |
[30] | Kawano N, Ito O, Sakagami J I.2009. Morphological and physiological responses of rice seedlings to complete submergence (flash flooding).Ann Bot, 103(2): 161-169. |
[31] | Krishnan P, Ravi I, Krishnayya G R.1999. Leaf senescence in submerged rice plants.Exp Agric, 35(3): 345-355. |
[32] | Kunst A, Draeger B, Ziegenhorn J.1988. Colorimetric methods with glucose oxidase and peroxidase. In: Bergneyer H U. Methods of Enzymatic Analysis: Vol VI. Metabolites I. Brasil: Carbohydrates: 178-185. |
[33] | Lascaris D, Deacon J W.1991. Comparison of methods to assess senescence of the cortex of wheat and tomato roots.Soil Biol Biochem, 23(10): 979-986. |
[34] | Lee T M, Lin Y H.1996. Peroxidase activity in relation to ethylene-induced rice (Oryza sativa L.) coleoptile elongation. Bot Bull Acad Sin, 37(4): 239-245. |
[35] | Mackinney G.1941. Absorption of light by chlorophyll solutions.J Biol Chem, 140: 315-322. |
[36] | Maksimovic J D, Maksimovic V, Zivanovic B, Sukalovic V H T, Vuletic M.2008. Peroxidase activity and phenolic compounds content in maize root and leaf apoplast, and their association with growth.Plant Sci, 175(5): 656-662. |
[37] | Matsunaka S.1960. Studies on the respiratory enzyme systems of plants: I. Enzymatic oxidation of α-naphthylamine in rice plant root.J Biochem, 47(6): 820-829. |
[38] | Mohanty H K, Chaudhary R C.1986. Breeding for submergence tolerance in rice in India. In: Maclean J, Banta S. Progress in Rainfed Lowland Rice . Manila,the Philippines: International Rice Research Institute: 191-200. |
[39] | Noland T L, Mohammed G H.1997. Fluorescein diacetate as a viability stain for tree roots and seeds.New Forests, 14(3): 221-232. |
[40] | Panda D, Sarkar R K.2012a. Leaf photosynthetic activity and antioxidant defense associated with Sub1 QTL in rice subjected to submergence and subsequent re-aeration. Rice Sci, 19(2): 108-116. |
[41] | Panda D, Sarkar R K.2012b. Role of non-structural carbohydrate and its catabolism associated with Sub1 QTL in rice subjected to complete submergence. Exp Agric, 48(4): 502-512. |
[42] | Perata P, Voesenek L A C J.2007. Submergence tolerance in rice requires Sub1A, an ethylene-response-factor-like gene. Trends Plant Sci, 12(2): 43-46. |
[43] | Ram P C, Singh B B, Singh A K, Ram P, Singh P N, Singh H P, Boamfa I, Harren F, Santosa E, Jackson M B, Setter T L, Reuss J, Wade L J, Singh V P, Singh R K.2002. Submergence tolerance in rainfed lowland rice: Physiological basis and prospects for cultivar improvement through marker-aided breeding.Field Crops Res, 76: 131-152. |
[44] | Rawyler A, Arpagaus S, Braendle R.2002. Impact of oxygen stress and energy availability on membrane stability of plant cells.Ann Bot, 90(4): 499-507. |
[45] | Rotman B, Papermaster B W.1966. Membrane properties of living mammalian cells as studied by hydrolysis of fluorogenic esters.Proc Natl Acad Sci USA, 55(1): 134-141. |
[46] | Sairam R K, Kumutha D, Ezhilmathi K, Deshmukh P S, Srivastava G C.2008. Physiology and biochemistry of waterlogging tolerance in plants.Biol Plant, 52: 401-412. |
[47] | Sarkar R K, Reddy J N, Sharma S G, Ismail A M.2006. Physiological basis of submergence tolerance in rice and implications for crop improvement.Curr Sci, 91(7): 899-906. |
[48] | Schmitz A J, Folsom J J, Jikamaru Y, Ronald P, Walia H.2013. SUB1A-mediated submergence tolerance response in rice involves differential regulation of the brassinosteroid pathway. New Phytol, 198(4): 1060-1070. |
[49] | Setter T L, Waters I, Wallace I, Bhekasut P, Greenway H.1989. Submergence of rice: I. Growth and photosynthetic response to CO2 enrichment of floodwater.Aust J Plant Physiol, 16(3): 251-263. |
[50] | Setter T L, Laureles E V.1996. The beneficial effect of reduced elongation growth on submergence tolerance of rice.J Exp Bot, 47: 1551-1559. |
[51] | Setter T L, Ellis M, Laureles E V, Ella E S, Senadhira D, Mishra S B, Sarkarung S, Datta S.1997. Physiology and genetics of submergence tolerance in rice.Ann Bot, 79: 67-77. |
[52] | Singh S, Mackill D J, Ismail A M.2009. Responses of SUB1 rice introgression lines to submergence in the field: Yield and grain quality. Field Crops Res, 113(1): 12-23. |
[53] | Singh S, Mackill D J, Ismail A M.2014. Physiological basis of tolerance to complete submergence in rice involves genetic factors in addition to the SUB1 gene. AoB Plants, 6: plu060. |
[54] | Septiningsih E M, Pamplona A M, Sanchez D L, Neeraja C N, Vergara G V, Heuer S, Ismail A M, Mackill D J.2009. Development of submergence-tolerant rice cultivars: The Sub1 locus and beyond. Ann Bot, 103(2): 151-160. |
[55] | Stewart R R C, Bewley J D.1980. Lipid peroxidation associated with accelerated aging of soybean axes.Plant Physiol, 65(2): 245-248. |
[56] | Vartapetian B B, Jackson M B.1997. Plant adaptations to anaerobic stress.Ann Bot, 79: 3-20. |
[57] | Winkel A, Pedersen O, Ella E, Ismail A M, Colmer T D.2014. Gas film retention and underwater photosynthesis during field submergence of four contrasting rice genotypes.J Exp Bot, 65: 3225-3233. |
[58] | Xu K, Mackill D J.1996. A major locus for submergence tolerance mapped on rice chromosome 9.Mol Breeding, 2(3): 219-224. |
[59] | Xu K N, Xu X, Fukao T, Canlas P, Maghirang-Rodriguez R, Heuer S, Ismail A M, Bailey-Serres J, Ronald P C, Mackill D J.2006. Sub1A is an ethylene-response-factor-like gene that confers submergence tolerance to rice. Nature, 442: 705-708. |
