Effects of Space Flight on Expression of Key Proteins in Rice Leaves

doi:10.1016/j.rsci.2019.12.011

Abstract

Abstract:

As a unique form of abiotic stress, the environmental conditions of outer space are expected to induce changes in plant genomes, proteomes and metabolic pathways. However, the effect of outer space conditions on the overall physiology of plants at the protein level has yet to be reported. To investigate the effects of outer space conditions on the growth- and development-related physiological processes and metabolic pathways of rice different stages, the seeds of rice variety DN423 were sent into orbit for 12.5 d aboard the SJ-10 Returning Satellite, and then the seedlings of both treated and control rice were compared at the three-leaf stage (TLS) and tillering stage (TS). In addition to comparing plant growth and reactive oxygen species (ROS) levels, seedling proteomes were also compared using isobaric tags for relative and absolute quantitation (iTRAQ). Space flight increased TLS plant height by 20%, reduced and increased ROS levels of the TLS and TS seedlings, respectively, and affected the expression of 36 and 323 proteins in TLS and TS leaves, respectively. Furthermore, the functions of the differentially abundant proteins were mainly associated with metabolism, energy, and protein synthesis and degradation. These results suggested that the exposure of seeds to outer space conditions affects the subsequent abundance of key signaling proteins, gene expression, and the processes of protein synthesis and degradation, thereby affecting metabolic processes and promoting adaptation to the abiotic stress of outer space. As such, the present study sheds light on the effects of space flight on plants and contributes to a more comprehensive understanding of extraterrestrial biology.

Key words: differentially abundant protein, rice, proteomics, space flight

Deyong Zeng, Jie Cui, Yishu Yin, Meng Zhang, Shan Shan, Xin Gao, Yingchun Zhang, Yeqing Sun, Weihong Lu. Effects of Space Flight on Expression of Key Proteins in Rice Leaves[J]. Rice Science, 2020, 27(5): 423-433.

Figures/Tables 17

Supplemental Table 1 Primers used in the qRT-PCR analysis.

Gene	Forward primer (5’-3’)	Reverse primer (5’-3’)
RMa 1	CACGGACGACTCGGACTCTCAG	AGGTGTCAGCCTGGCTCTCAAG
EPB1	GGCGACATGGTGATGATGGACAG	TCGGCGAGCTGGTAAGTGAGG
SII-3	ACCTGCCTCACGGAACGGATC	GCTGCGGCTTGTCTACGGATG
Mtases	TAGCCTTGGCGAGAGCTGAT	TGGCCAACAATGGATCGCAG

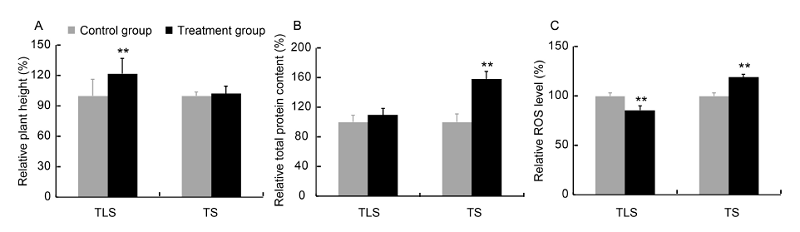

Fig. 1. Relative plant height(A), total protein content (B), and reactive oxygen species (ROS) level (C) in treatment and control rice plants.TLS, Three-leaf stage; TS, Tillering stage.Data are presented as Mean ± SD (n = 30 for A, n = 3 for B and C). ** indicates significant difference at the 0.01 level by the t-test.

Supplemental Fig 1. Growth of rice at the three-leaf stage.

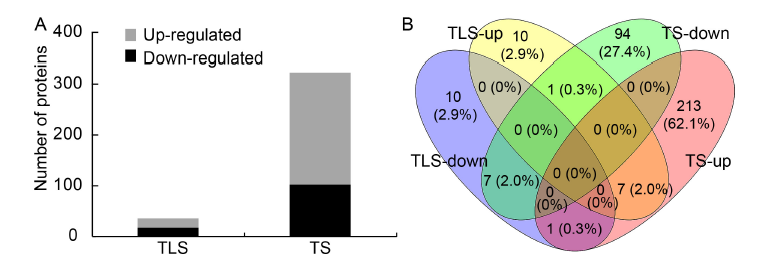

Fig. 2. Number of up-regulated and down- regulated differentially abundant proteins (DAPs) at the two different growth stages (A) and overlaps of the DAPs by Venn diagram (B).TLS-up, Up-regulated proteins at the three- leaf stage (TLS); TLS-down, Down-regulated proteins at the TLS; TS-up, Up-regulated proteins at the tillering stage (TS); TS-down, Down- regulated proteins at the TS.

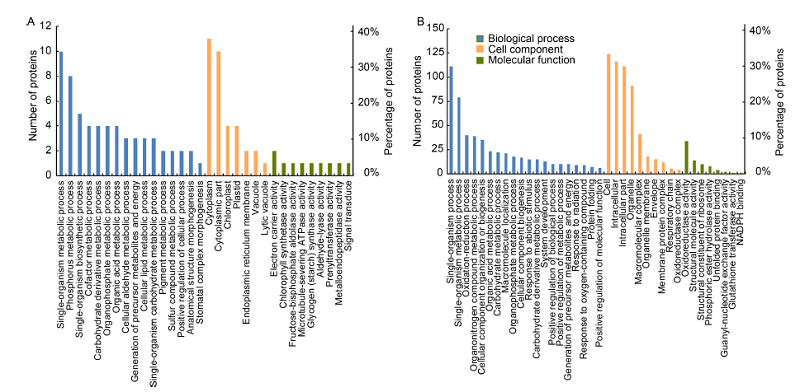

Fig. 3. Gene ontology enrichment analysis of proteins with differential abundance at the three-leaf (A) and tillering (B) stages.

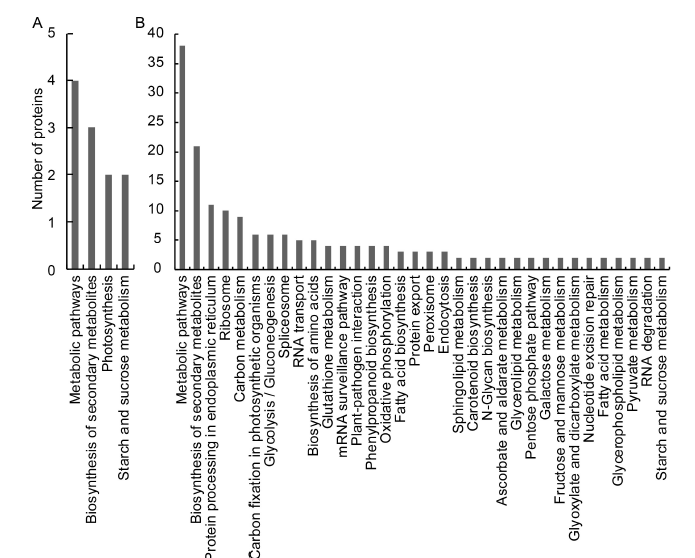

Fig. 4. Metabolic analysis of KEGG (Kyoto Encyclopedia of Genes and Genomes) pathway (matched number more than two) at the three-leaf (A) and tillering (B) stages.

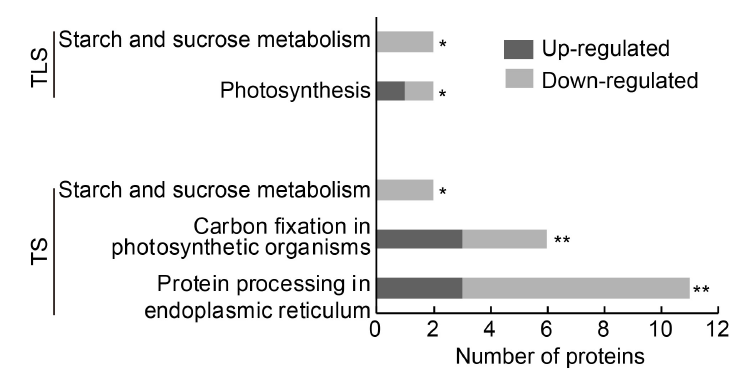

Fig. 5. KEGG (Kyoto Encyclopedia of Genes and Genomes) enrichment at the three-leaf stage (TLS) and tillering stage (TS).* and ** indicate the significant differences at the 0.05 and 0.01 levels by the Tukey’s test, respectively.

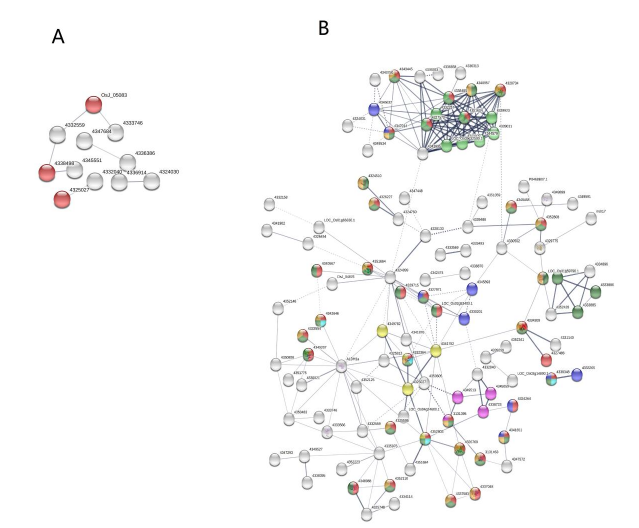

Supplemental Fig. 2. STRING analysis of 36 and 324 differentially expressed proteins following different growth periods after spaceflight, visualizing the presence of three five clusters.A, Three-leaf stage; B, Tillering stages.Red, metabolism; Green, protein synthesis; Blue Protein processing in the endoplasmic reticulum; Yellow, Glycolysis/Gluconeogenesis; Purple, Oxidative phosphorylation. Labels report protein Gene Names.

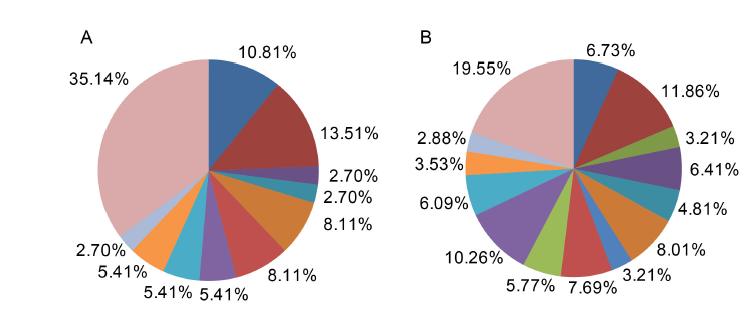

Fig. 6. Functional classification of differentially expressed proteins in leaves at the three-leaf (A) and tillering (B) stages.

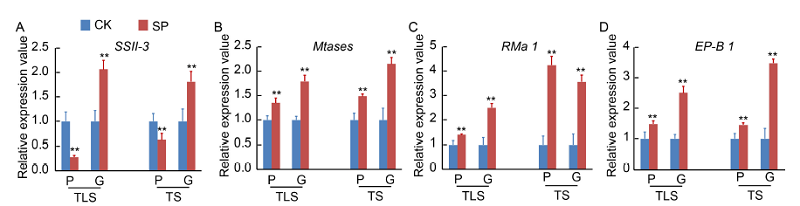

Fig. 7. Comparison between protein abundance and mRNA level.P, Protein; G, Gene; TLS, Three-leaf stage; TS, Tillering stage; CK, Control; SP, Space.Data are represented as Mean ± SE (n = 3). ** indicates significant difference at the 0.01 level by the Tukey’s test.

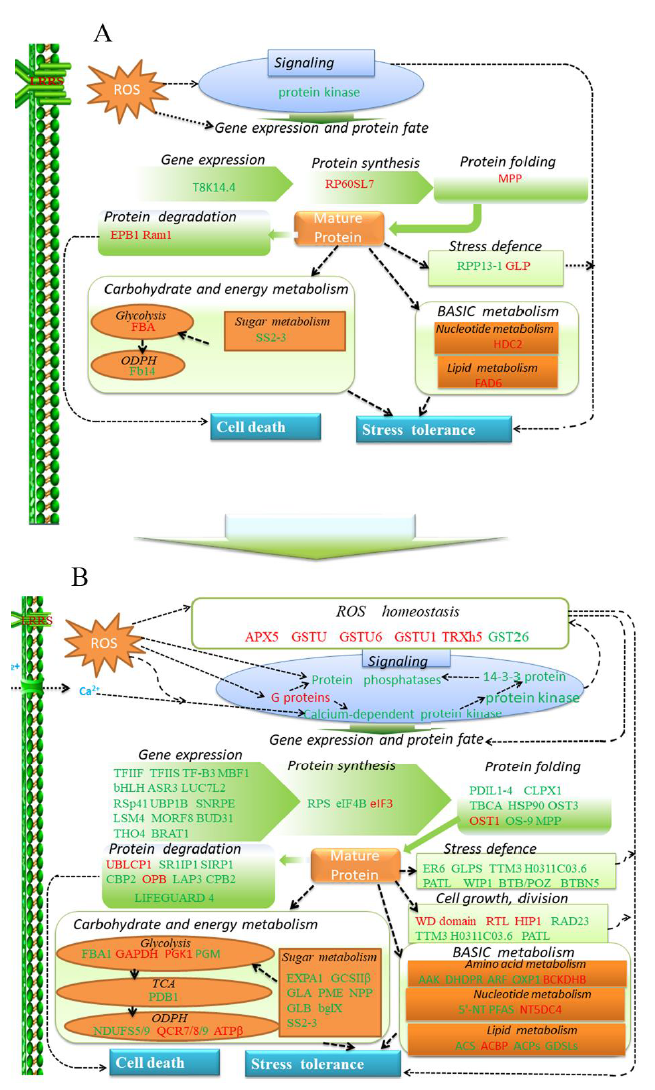

Supplemental Fig. 3. The mechanism of rice response to space environment during different growth and development stages of rice seeds after 12.5 d of space flight.A represents the three-leaf stage; B represents the tilling stage. The increases and decrease are represented in red and green.

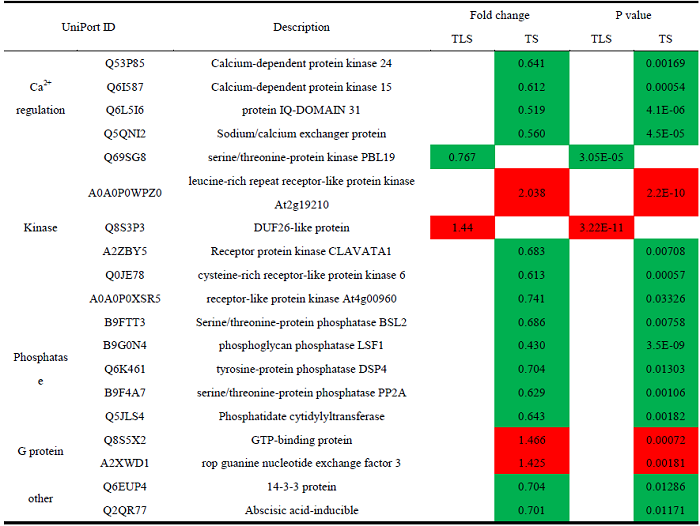

Supplemental Table 2 Changes in protein abundance associated with signal transduction in the three-leaf stage (TLS) and the tillering stage (TS) as identified by iTRAQ.

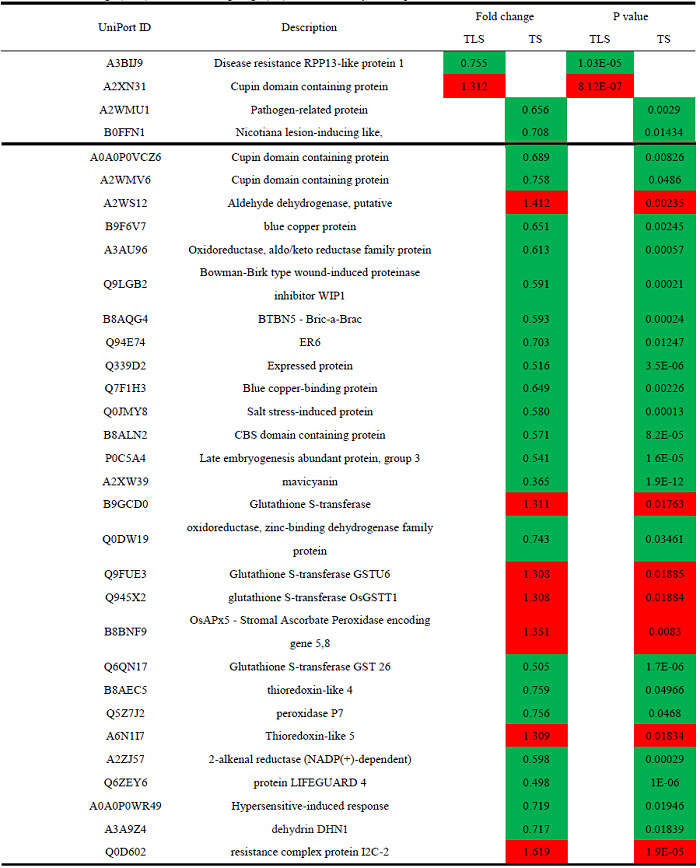

Supplemental Table 3 Changes in protein abundance associated with related to oxidative and stress responses in the three-leaf stage (TLS) and the tillering stage (TS) as identified by iTRAQ.

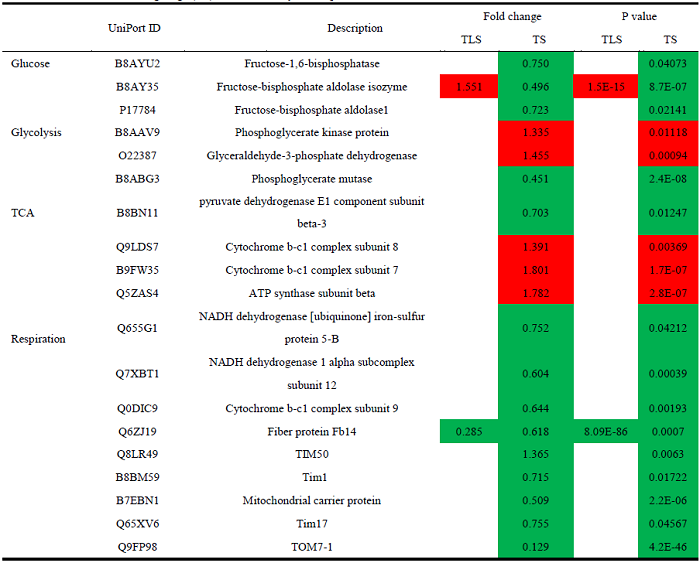

Supplemental Table 4 Changes in protein abundance associated with energy metabolism in the three-leaf stage (TLS) and the tillering stage (TS) as identified by iTRAQ.

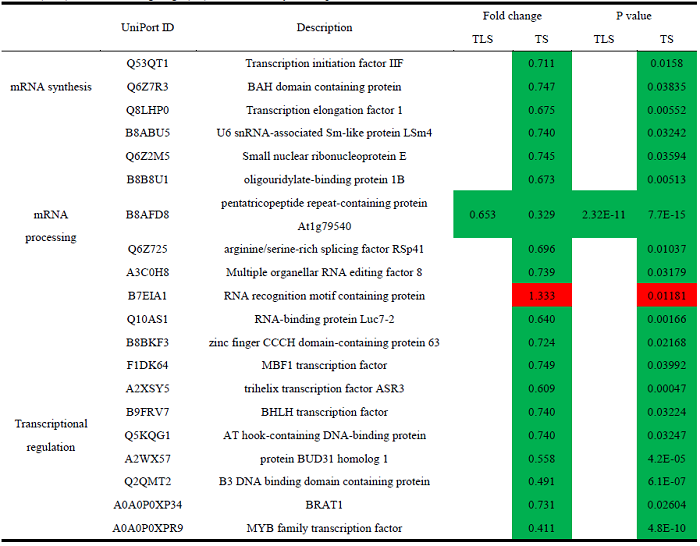

Supplemental Table 5 Changes in protein abundance associated with gene expression regulatory in the three-leaf stage (TLS) and the tillering stage (TS) as identified by iTRAQ.

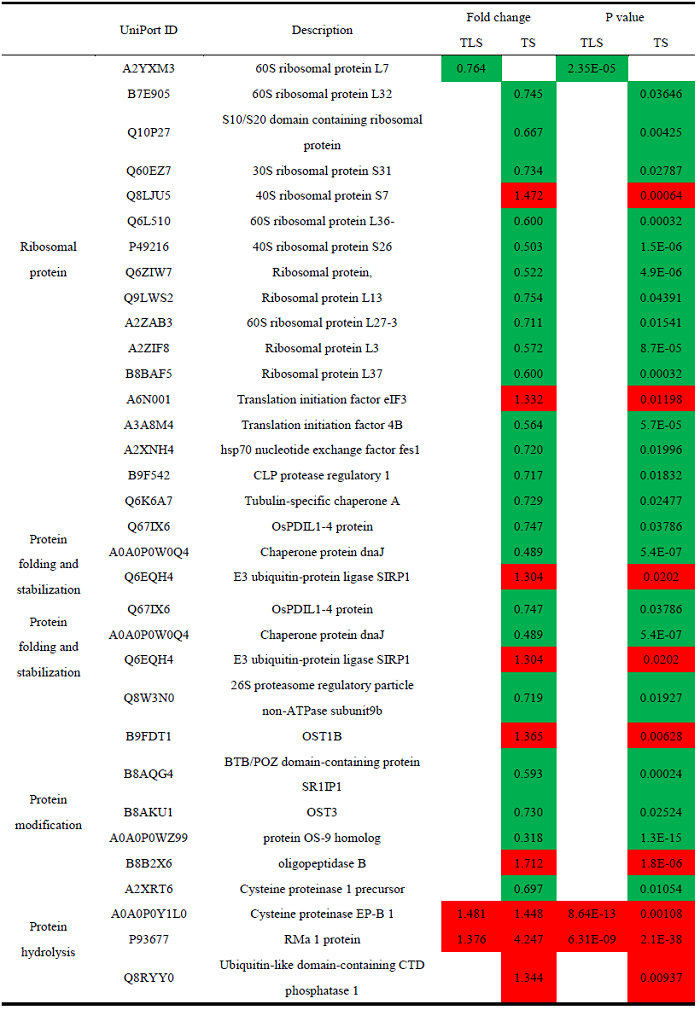

Supplemental Table 6 Changes in protein abundance associated with protein synthesis and processing in the three-leaf stage (TLS) and the tillering stage (TS) as identified by iTRAQ.

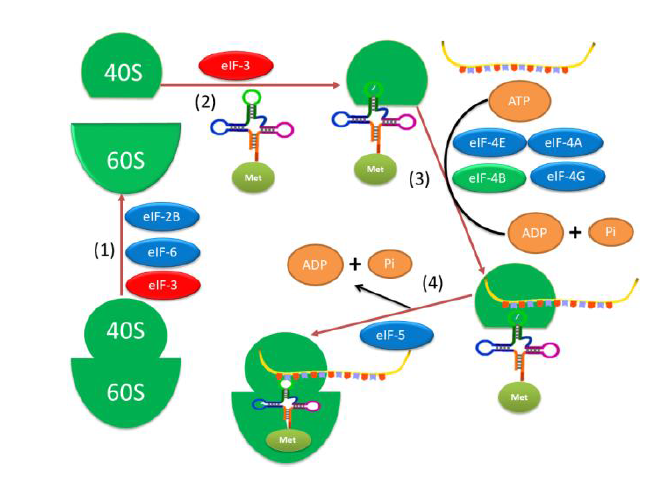

Supplemental Fig. 4. Formation process of eukaryotic translation initiation complex.Red represents the protein, green represents the down-regulated protein, and blue represents the undetected protein.
