Putative Phosphatase UvPsr1 Is Required for Mycelial Growth, Conidiation, Stress Response and Pathogenicity in Ustilaginonidea virens

doi:10.1016/j.rsci.2020.09.009

Abstract

Abstract:

Ustilaginoidea virens is the causal agent of rice false smut, which can be a highly destructive disease of rice. The plasma membrane phosphatase Psr1 proteins, which act as a regulator of the salinity stress response in yeast, are widely distributed across fungi, but their functional characterization is sketchy. In this study, we characterized the functions of Psr1 protein, UvPsr1, in U. virens. Analyses of the ∆Uvpsr1 and its complementation strain showed that UvPsr1 is required for normal mycelial growth, conidiation and tolerance to oxidative, osmotic and cell wall stresses. When rice panicles were inoculated with the ∆Uvpsr1 strains, no symptoms of false smut disease developed, showing that UvPSR1 also contributes to the pathogenicity of the fungus. The deletion mutant of UvPSR1 also appeared to produce a smaller titer of toxic compounds able to inhibit elongation of the germinated seeds. In conclusion, our results indicated that UvPsr1 is a new pathogenic factor of U. virens.

Key words: Psr1, rice false smut disease, pathogenic factor, clavicipitaceae, Ustilaginoidea virens

Meng Xiong, Shuai Meng, Jiehua Qiu, Huanbin Shi, Xiangling Shen, Yanjun Kou. Putative Phosphatase UvPsr1 Is Required for Mycelial Growth, Conidiation, Stress Response and Pathogenicity in Ustilaginonidea virens[J]. Rice Science, 2020, 27(6): 529-536.

Figures/Tables 7

Supplemental Table 1. Primers used in this study.

Primer	Sequence (5′-3′)	Application
UvPSR1-3F	AAAACTGCAGTGCCAAAATTACCCGACGGT	Amplifying UvPSR1 3' flank sequence for gene deletion
UvPSR1-3R	AAAACTGCAGGGTACGGTGCACACGAAGTA	Amplifying UvPSR1 3' flank sequence for gene deletion
UvPSR1-5F	CCGCTCGAGCCCAGAGTTGTAGTCGGCTG	Amplifying UvPSR1 5' flank sequence for gene deletion
UvPSR1-5R	CGGGATCCCCTTTGGAAGTCCCCACCTC	Amplifying UvPSR1 5' flank sequence for gene deletion
UvPSR1-TR	CGGGCTCACTCCTGATTCTT	Transformants screening
p821-3F	CAGCACTCGTCCGAGGGCA
UvPSR1-CF UvPSR1-CR UvPSR1RT-F UvPSR1RT-R	CGGAATTCGCATCGTCCACGAATCTAGCTGTAG GCTCTAGAGCAACAACCTTCGTAATTCCTCGC CGTTGAGATCGAGGGCCATT CCGGAAGAGACGGTGATGTA	Uvpsr1Δ complementation assay Analysis the expression level of UvPSR1 gene of U. virens
β-tubulin F	GGCGTTTACAATGGCACTTC	Analysis the expression level of β-tubulin gene of U. virens
β-tubulin R	CGGAACAGTTGACCAAAAGG
UvPSR1-probeF	CCGCTCGAGCCCAGAGTTGTAGTCGGCTG	Amplification of probe for Southern Blot assay Amplification of neomycin resistance gene to construct the vector pFGL823
UvPSR1-probeR Neo-p823-F Neo-p823-R	CGGGATCCCCTTTGGAAGTCCCCACCTC CTAGTCTAGAGATTAACGCTTACAATTTCCATTCG AAAACTGCAGAGAATAGGAACTTCGGAATAGG

Fig. 1. Identification of UvPsr1 in Ustilaginonidea virens. A, Alignment of Psr1 proteins produced by U. virens (UvPsr1 and UvPsr2) and Saccharomyces cerevisiae (ScPsr1 and ScPsr2). Amino acids in black and gray represent amino acids identity and 50% similairty respectively. B, Phylogeny of the Psr proteins, derived from an alignment of homologous proteins encoded by U. virens (UvPsr1), S. cerevisiae (ScPsr1), Magnaporthe oryzae (MoPsr1), Podospora anserina (PaPsr1) and Fusarium graminearum (FgPsr1). C, Abundance of UvPSR1 transcript following the inoculation of rice panicles with U. virens. Samples were taken at 3, 5, 6, 7 and 9 dpi (days post inoculation). β-tubulin gene served as the reference. Data are shown as Mean ± SD (n = 3).

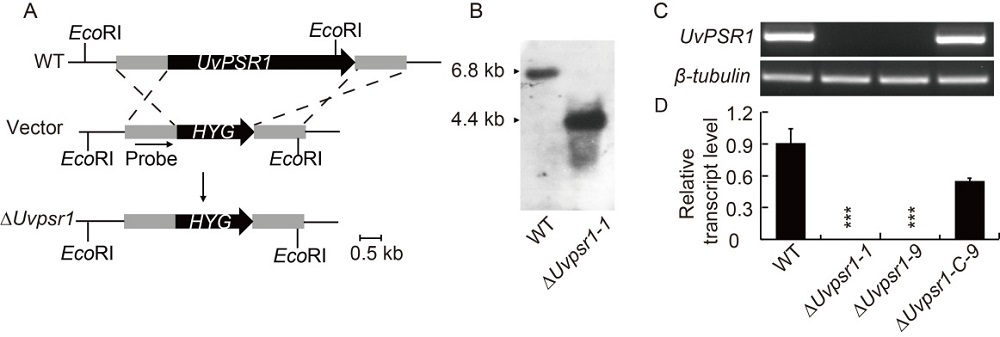

Fig. 2. Targeted gene deletion and complementation of UvPSR1 in U. virens. A, Strategy for constructing a ∆Uvpsr1 strain (WT) involved replacing UvPSR1 with hygromycin phosphotransferase gene cassette (HYG). B, Southern blot assay used to validate the loss of UvPSR1 in the ∆Uvpsr1 deletion mutant. C and D, Abundance of UvPSR1 transcript in mycelia of the WT, ∆Uvpsr1 and ∆Uvpsr1-C strains. No transcript was detected in either the ∆Uvpsr1-1 or ∆Uvpsr1-9 strains. Data are shown as Mean ± SD (n = 3). *** indicates the significant difference at the 0.001 level.

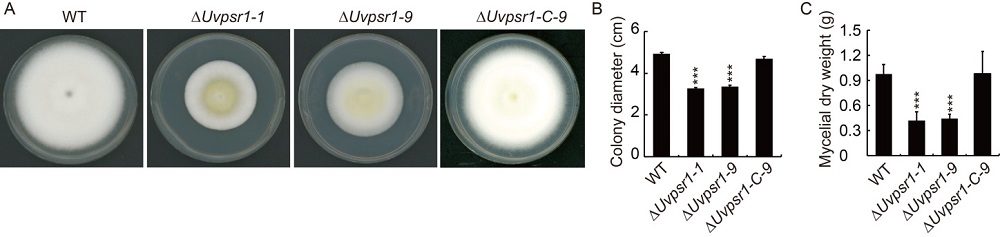

Fig. 3. UvPsr1 is needed for mycelial growth of U. virens. A, Colonies of the WT, ∆Uvpsr1 and ∆Uvpsr1-C strains grown on potato sucrose agar (PSA) in the dark for 15 d. B, Quantification of fungal growth as measured by colony diameter. C, Dry weight of mycelia developed in potato sucrose medium for 7 d. Data are shown as Mean ± SD (n = 3). *** indicates significant difference at the 0.001 level.

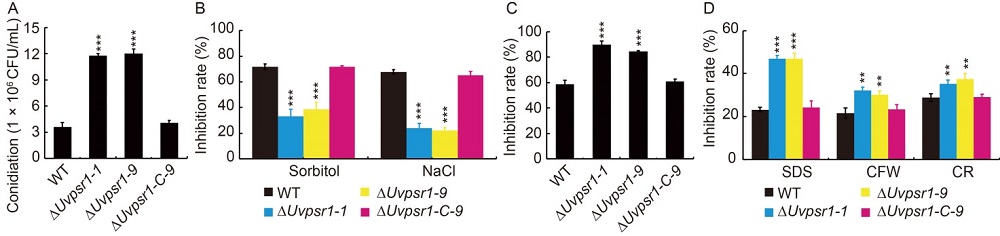

Fig. 4. Effects of UvPSR1 in production of conidia (A), sensitivity to osmosis and salinity stresses (B), tolerance to oxidative stress (C), and tolerance to cell wall disruption induced by SDS (sodium dodecyl sulfate), CFW (calcofluor white stain) and CR (congo red) (D).Data are shown as Mean ± SD (n = 3). ** and *** indicate significant differences at the 0.01 and 0.001 levels, respectively.

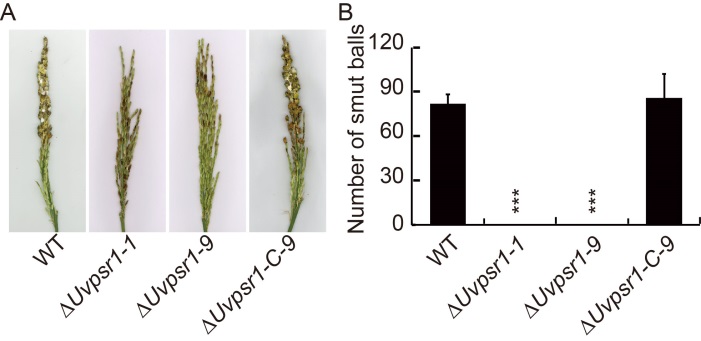

Fig. 5. Pathogenicity of U. virens requires the presence of UvPsr1. A, Disease symptoms on the rice panicle following inoculation at the booting stage with a mixture of mycelia and conidia of either the WT, ∆Uvpsr1 or ∆Uvpsr1-C-9 strains. B, Quantification of pathogenicity as measured by the number of smut balls formed within the panicle. Data are shown as Mean ± SD (n = 3). *** indicates significant difference at the 0.001 level.

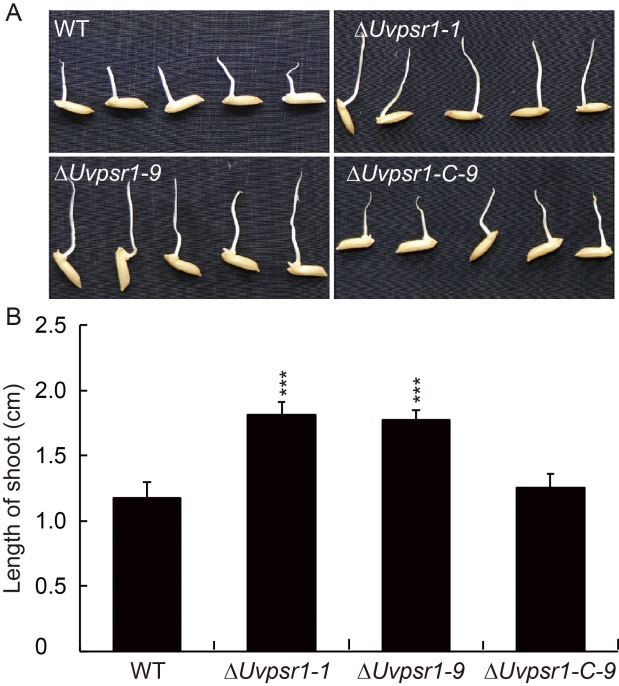

Fig. 6. Culture filtrates of ∆Uvpsr1 mutants showed reduced inhibition of rice seed elongation. A, Grains were germinated in the presence of the filtrate of WT strain, UvPSR1 mutants (∆Uvpsr1-1 and ∆Uvpsr1-9) and complementary (∆Uvpsr1-C-9) strain. B, Quantification of shoot lengths. Data are shown as Mean ± SD (n = 3). *** indicates the significant difference at the 0.001 level.

References 26

[1]	Ashizawa T, Takahashi M, Moriwaki J, Hirayae K.2010. A refined inoculation method to evaluate false smut resistance in rice. J Gen Plant Pathol, 77(1): 10-16.
[2]	Boeckstaens M, Llinares E, van Vooren P, Marini A M.2014. The TORC1 effector kinase Npr1 fine tunes the inherent activity of the Mep2 ammonium transport protein. Nat Commun, 5: 3101.
[3]	Chen X Y, Hai D, Tang J T, Liu H, Huang J B, Luo C X, Hsiang T, Zheng L.2020. UvCom1 is an important regulator required for development and infection in the rice false smut fungus Ustilaginoidea virens. Phytopathology, 110(2): 483-493.
[4]	Chen Y Y, Stabryla L, Wei N.2016. Improved acetic acid resistance in Saccharomyces cerevisiae by overexpression of the WHI2 gene identified through inverse metabolic engineering. Appl Environ Microbiol, 82(7): 2156-2166.
[5]	Fan J, Yang J, Wang Y Q, Li G B, Li Y, Huang F, Wang W M.2016. Current understanding on Villosiclava virens, a unique flower-infecting fungus causing rice false smut disease. Mol Plant Pathol, 17(9): 1321-1330.
[6]	Fan J, Du N, Li L, Li G B, Wang Y Q, Zhou Y F, Hu X H, Liu J, Zhao J Q, Li Y, Huang F, Wang W M.2019. A core effector UV_1261 promotes Ustilaginoidea virens infection via spatiotemporally suppressing plant defense. Phytopathol Res, 1(1): 11.
[7]	Fang A F, Gao H, Zhang N, Zheng X H, Qiu S S, Li Y J, Zhou S, Cui F H, Sun W X.2019. A novel effector gene SCRE2 contributes to full virulence of Ustilaginoidea virens to rice. Front Microbiol, 10: 845.
[8]	Guo W W, Gao Y X, Yu Z M, Xiao Y H, Zhang Z G, Zhang H F.2019. The adenylate cyclase UvAc1 and phosphodiesterase UvPdeH control the intracellular cAMP level, development, and pathogenicity of the rice false smut fungus Ustilaginoidea virens. Fungal Genet Biol, 129: 65-73.
[9]	Kaida D, Yashiroda H, Toh-e A, Kikuchi Y.2002. Yeast Whi2 and Psr1-phosphatase form a complex and regulate STRE-mediated gene expression. Genes Cells, 7(6): 543-552.
[10]	Ladhalakshmi D, Laha G S, Singh R, Karthikeyan A, Mangrauthia S K, Sundaram R M, Thukkaiyannan P, Viraktamath B C.2012. Isolation and characterization of Ustilaginoidea virens and survey of false smut disease of rice in India. Phytoparasitica, 40(2): 171-176.
[11]	Liang Y F, Han Y, Wang C F, Jiang C, Xu J R.2018. Targeted deletion of the USTA and UvSLT2 genes efficiently in Ustilaginoidea virens with the CRISPR-Cas9 system. Front Plant Sci, 9: 699.
[12]	Lin X Y, Bian Y F, Mou R X, Cao Z Y, Cao Z Z, Zhu Z W, Chen M X.2018. Isolation, identification, and characterization of Ustilaginoidea virens from rice false smut balls with high ustilotoxin production potential. J Basic Microbiol, 58(8): 670-678.
[13]	Lv B, Zheng L, Liu H, Tang J T, Hsiang T, Huang J B.2016. Use of random T-DNA mutagenesis in identification of gene UvPRO1, a regulator of conidiation, stress response, and virulence in Ustilaginoidea virens. Front Microbiol, 7: 2086.
[14]	Nessa B, Salam M U, Haque A H M M, Biswas J K, Kabir M S, MacLeod W J, D’Antuono M, Barman H N, Latif M A, Galloway J.2015. Spatial pattern of natural spread of rice false smut Ustilaginoidea virens disease in fields. Am J Agric Biol Sci, 10(2): 63-73.
[15]	Qiu J H, Meng S, Deng Y Z, Huang S W, Kou Y J.2019. Ustilaginoidea virens: A fungus infects rice flower and threats world rice production. Rice Sci, 26(4): 199-206.
[16]	Tang J T, Bai J, Chen X Y, Zheng L, Liu H, Huang J B.2019. Two protein kinases UvPmk1 and UvCDC2 with significant functions in conidiation, stress response and pathogenicity of rice false smut fungus Ustilaginoidea virens. Curr Genet, 66: 409-420.
[17]	Teng X C, Hardwick J M.2019. Whi2: A new player in amino acid sensing. Curr Genet, 65(3): 701-709.
[18]	Timpano H, Tong L C H, Gautier V, Lalucque H, Silar P.2016. The PaPsr1 and PaWhi2 genes are members of the regulatory network that connect stationary phase to mycelium differentiation and reproduction in Podospora anserina. Fungal Genet Biol, 94: 1-10.
[19]	Wang X H, Wang J, Lai D W, Wang W X, Dai J G, Zhou L G, Liu Y.2017. Ustiloxin G, a new cyclopeptide mycotoxin from rice false smut balls. Toxins, 9(2): E54.
[20]	Xie S L, Wang Y F, Wei W, Li C Y, Liu Y, Qu J S, Meng Q H, Lin Y, Yin W X, Yang Y N, Luo C X.2019. The Bax inhibitor UvBI-1, a negative regulator of mycelial growth and conidiation, mediates stress response and is critical for pathogenicity of the rice false smut fungus Ustilaginoidea virens. Curr Genet, 65(5): 1185-1197.
[21]	Yu M N, Yu J J, Hu J K, Huang L, Wang Y H, Yin X L, Nie Y F, Meng X K, Wang W D, Liu Y F.2015. Identification of pathogenicity-related genes in the rice pathogen Ustilaginoidea virens through random insertional mutagenesis. Fungal Genet Biol, 76: 10-19.
[22]	Yun Y Z, Liu Z Y, Yin Y N, Jiang J H, Chen Y, Xu J R, Ma Z H.2015. Functional analysis of the Fusarium graminearum phosphatome. New Phytol, 207(1): 119-134.
[23]	Zhang Y, Zhang K, Fang A F, Han Y Q, Yang J, Xue M F, Bao J D, Hu D W, Zhou B, Sun X Y, Li S J, Wen M, Yao N, Ma L J, Liu Y F, Zhang M, Huang F, Luo C X, Zhou L G, Li J Q, Chen Z Y, Miao J K, Wang S, Lai J S, Xu J R, Hsiang T, Peng Y L, Sun W X.2014. Specific adaptation of Ustilaginoidea virens in occupying host florets revealed by comparative and functional genomics. Nat Commun, 5: 3849.
[24]	Zheng D W, Wang Y, Han Y, Xu J R, Wang C F.2016. UvHOG1 is important for hyphal growth and stress responses in the rice false smut fungus Ustilaginoidea virens. Sci Rep, 6: 24824.
[25]	Zheng M T, Ding H, Huang L, Wang Y H, Yu M N, Zheng R, Yu J J, Liu Y F.2017. Low-affinity iron transport protein Uvt3277 is important for pathogenesis in the rice false smut fungus Ustilaginoidea virens. Curr Genet, 63(1): 131-144.
[26]	Zhou Y X, Yu J J, Pan X Y, Yu M N, Du Y, Qi Z Q, Zhang R S, Song T Q, Yin X L, Liu Y F.2019. Characterization of propiconazole field-resistant isolates of Ustilaginoidea virens. Pestic Biochem Physiol, 153: 144-151.
