Pectin Methylesterases Enhance Root Cell Wall Phosphorus Remobilization in Rice

doi:10.1016/j.rsci.2022.01.006

Abstract

Abstract:

Pectin contributes greatly to cell wall phosphorus (P) remobilization. However, it is currently unclear whether the methylesterification degree of the pectin, which is related to the activity of pectin methylesterases (PMEs), is also involved in this process. Here, we demonstrated that elevated PME activity can facilitate the remobilization of P deposited in the cell wall. P-deficient conditions resulted in the reduction of root cell wall P content. This reduction was more pronounced in Nipponbare than in Kasalath, in company with a significant increment of the PME activity, indicating a possible relationship between elevated PME activity and cell wall P remobilization. This hypothesis was supported by in vitro experiments, as pectin with lower methylesterification degree had higher ability to release inorganic P (Pi) from insoluble FePO₄. Furthermore, among the 35 OsPME members in rice, only the expression of OsPME14 showed a relationship with PME activity. In addition, transgenic rice lines overexpressing OsPME14 had increased PME activity, released more P from the root cell wall, and more resistant to P deficiency. In conclusion, PMEs enhance P remobilization in P-starved rice by increasing PME activity in Nipponbare, which in turn helps to remobilize P from the cell wall, and thus makes more available P.

Key words: cell wall, phosphorus, pectin methylesterase, remobilization, rice

Wu Qi, Tao Ye, Zhang Xiaolong, Dong Xiaoying, Xia Jixing, Shen Renfang, Zhu Xiaofang. Pectin Methylesterases Enhance Root Cell Wall Phosphorus Remobilization in Rice[J]. Rice Science, 2022, 29(2): 179-188.

Figures/Tables 5

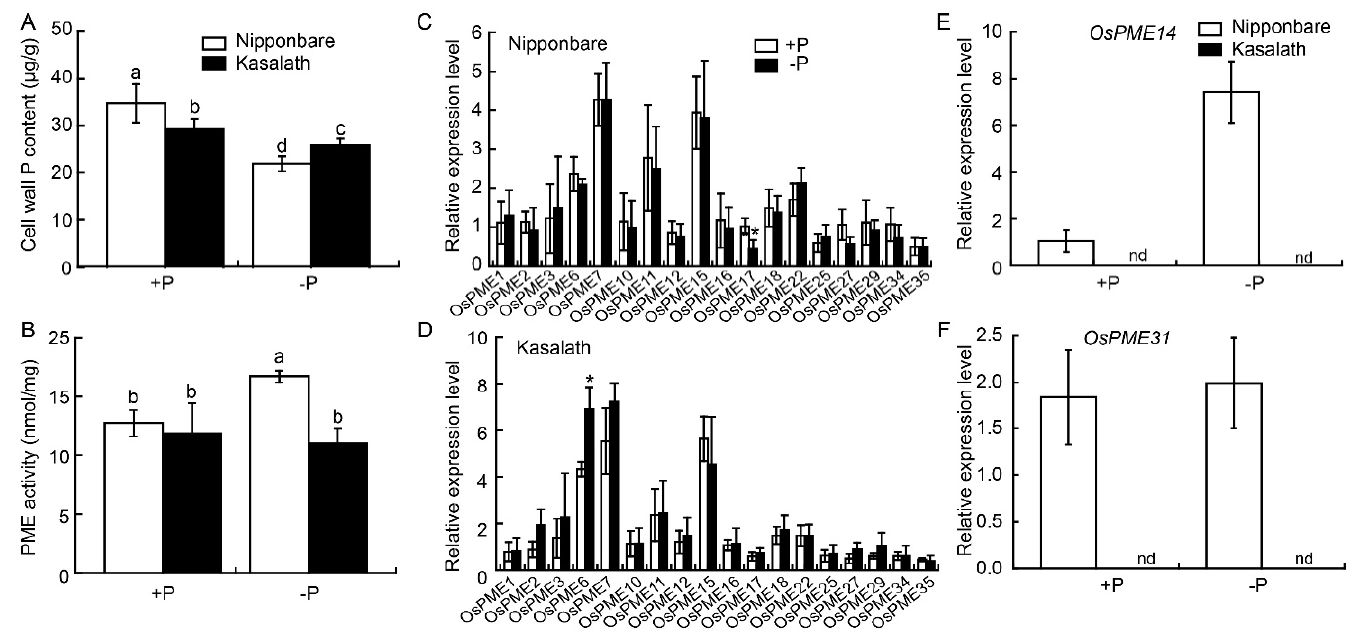

Fig. 1. OsPME14 is responsible for root cell wall P remobilization in rice variety Nipponbare and Kasalath under P-sufficient (+P) and P-deficient (-P) conditions. A and B, Root cell wall P content (A) and pectin methylesterase (PME) activity (B). PME activity refers to units of orange peel PME as defined by the manufacturer (Sigma, USA). Seedlings (2-week-old) were exposed to P-sufficient or P-deficient nutrient solution for one week. Data are Mean ± SD (n = 4). Columns with different lowercase letters are significantly different at P < 0.05. C and D, Quantitative PCR analysis of the expression of OsPME genes in Nipponbare (C) and Kasalath (D). Seedlings (2-week-old) were exposed to P-sufficient or P-deficient nutrient solution for one week. OsActin was used as an internal control. Data are Mean ± SD (n = 4). Columns with asterisks are significantly different at P < 0.05. E and F, Quantitative PCR analysis of the expression of OsPME14 (E) and OsPME31 (F). Seedlings (2-week-old) were exposed to P-sufficient or P-deficient nutrient solution for one week. OsActin was used as an internal control. nd, Not detected. Data are Mean ± SD (n = 4)

Table 1. OsPME genes were classified according to their expression patterns in Nipponbare and Kasalath.

Class	Gene
A ^a	OsPME4, OsPME5, OsPME8, OsPME9, OsPME13, OsPME19, OsPME20, OsPME21, OsPME23, OsPME24, OsPME26, OsPME28, OsPME30, OsPME32, OsPME33
B^b	OsPME14, OsPME31
C^c	OsPME1, OsPME2, OsPME3, OsPME6, OsPME7, OsPME10, OsPME11, OsPME12, OsPME15, OsPME16, OsPME17, OsPME18, OsPME22, OsPME25, OsPME27, OsPME29, OsPME34, OsPME35

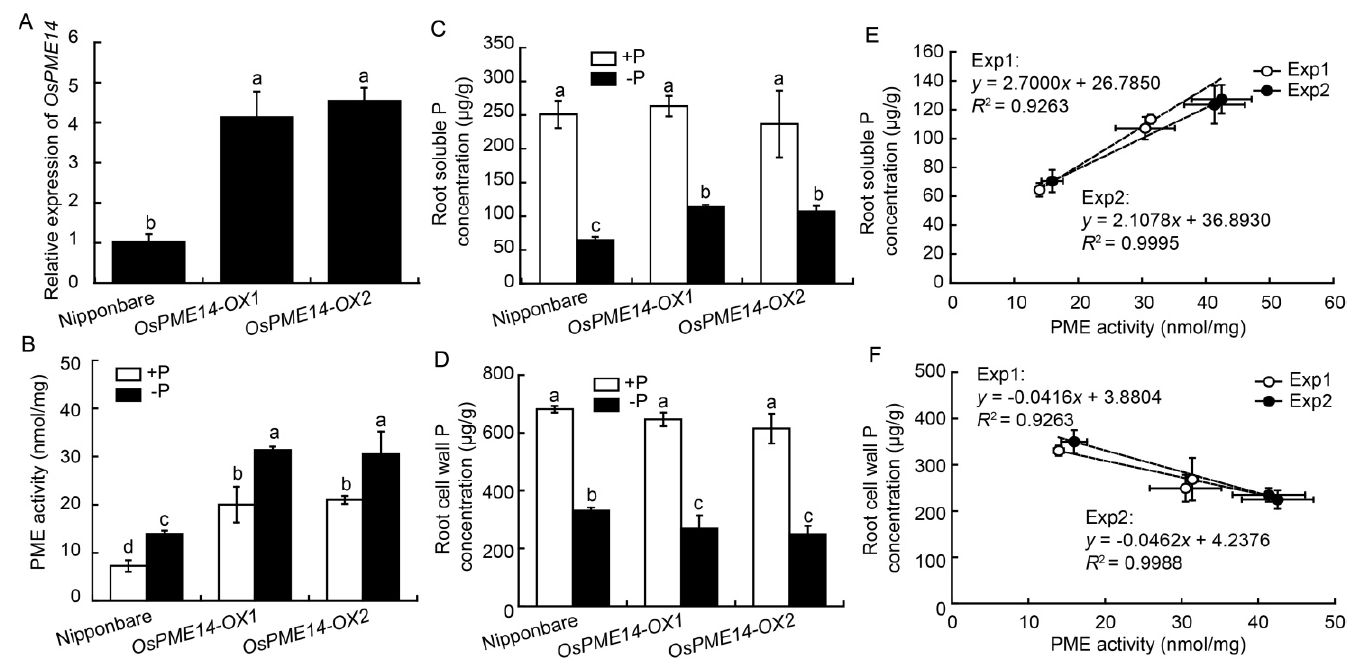

Fig. 2. OsPME14 is necessary for root pectin methylesterase (PME) activity-mediated remobilization of root cell wall P under P-sufficient (+P) and P-deficient (-P) conditions. A and B, Expression of OsPME14 (A) and PME activity (B) in Nipponbare and two independent overexpressing OsPME14 lines OsPME14-OX in the presence or absence of P supply. Seedlings (2-week-old) were exposed to P-sufficient or P-deficient nutrient solution for one week. OsActin was used as an internal control. C and D, Root soluble P concentration (C) and cell wall P concentration (D) in Nipponbare and two independent overexpressing OsPME14 lines OsPME14-OX in the presence or absence of P supply. E and F, PME activity correlates with root soluble P concentration (E) and cell wall P concentration (F) under P deficiency. Two independent experiments (Exp1 and Exp2) were done with 7-d P-deficient treatment, and after that, total roots were subjected to P content analysis, PME activity measurement and cell-wall extraction. In A to D, data are Mean ± SD (n = 4). Columns with different lowercase letters are significantly different at P < 0.05.

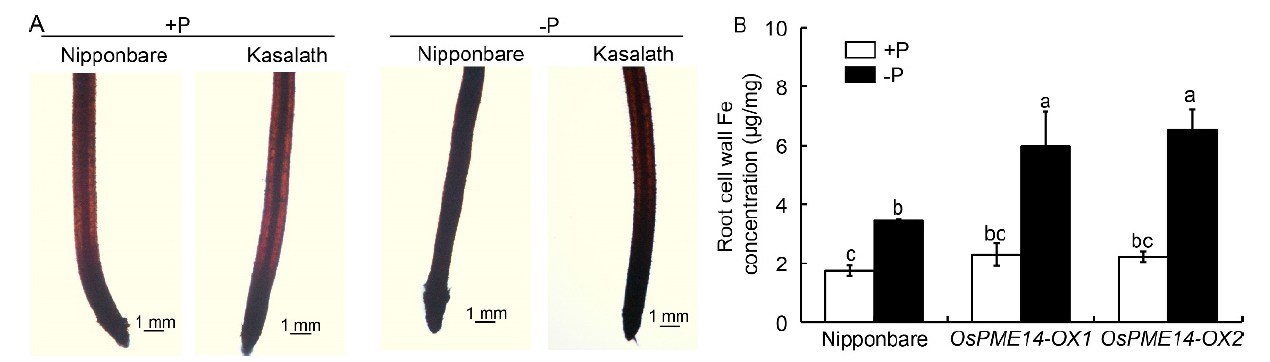

Fig. 3. Perls/diaminobenzidine staining in Nipponbare and Kasalath seedlings for one week (A), and Fe concentration in root cell wall (B) in Nip and two independent overexpressing OsPME14 lines OsPME14-OX under P-sufficient (+P) and P-deficient (-P) conditions. Data in B are Mean ± SD (n = 4). Columns with different lowercase letters are significantly different at P < 0.05.

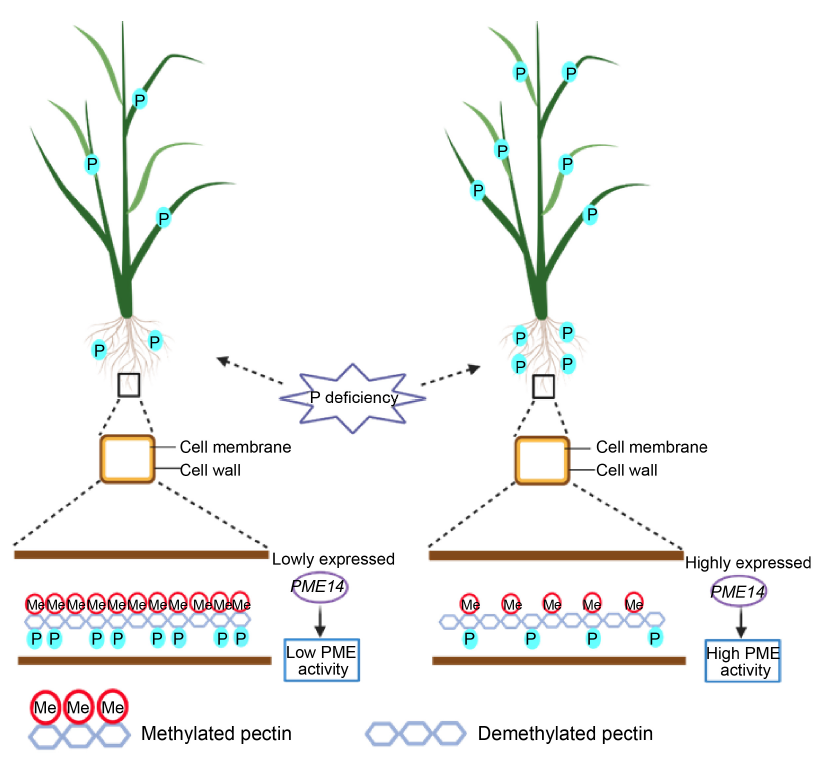

Fig. 4. Proposed working model for OsPME14 regulated cell wall P remobilization in P-deficient condition. P, Phosphoru; PME, Pectin methylesterases; ME, Methylesterase.

References 56

[1]	Ae N, Otani T, Makino T, Tazawa J. 1996. Role of cell wall of groundnut roots in solubilizing sparingly soluble phosphorus in soil. Plant Soil, 186: 197-204.
[2]	An S H, Sohn K H, Choi H W, Hwang I S, Lee S C, Hwang B K. 2008. Pepper pectin methylesterase inhibitor protein CaPMEI1 is required for antifungal activity, basal disease resistance and abiotic stress tolerance. Planta, 228(1): 61-78.
[3]	Bacete L, Mélida H, Miedes E, Molina A. 2018. Plant cell wall-mediated immunity: Cell wall changes trigger disease resistance responses. Plant J, 93: 614-636.
[4]	Bhadouria J, Singh A P, Mehra P, Verma L, Srivastawa R, Parida S K, Giri J. 2017. Identification of purple acid phosphatases in chickpea and potential roles of CaPAP7 in seed phytate accumulation. Sci Rep, 7: 11012. PMID
[5]	Bindraban P S, Dimkpa C O, Pandey R. 2020. Exploring phosphorus fertilizers and fertilization strategies for improved human and environmental health. Biol Fertil Soils, 56: 299-317.
[6]	Bosch M, Cheung A Y, Hepler P K. 2005. Pectin methylesterase: A regulator of pollen tube growth. Plant Physiol, 138(3): 1334-1346.
[7]	Brummell D A, Harpster M H. 2001. Cell wall metabolism in fruit softening and quality and its manipulation in transgenic plants. Plant Mol Biol, 47: 311-339. PMID
[8]	Brundrett M C. 2002. Coevolution of roots and mycorrhizas of land plants. New Phytol, 154(2): 275-304. PMID
[9]	Cosgrove D J. 2005. Growth of the plant cell wall. Nat Rev Mol Cell Biol, 6: 850-861.
[10]	Eticha D, Stass A, Horst W J. 2005. Cell-wall pectin and its degree of methylation in the maize root-apex: Significance for genotypic differences in aluminium resistance. Plant Cell Environ, 28: 1410-1420.
[11]	Feng Z W, Liu X D, Zhu H H, Yao Q. 2020. Responses of arbuscular mycorrhizal symbiosis to abiotic stress: A lipid- centric perspective. Front Plant Sci, 11: 578919.
[12]	Gessa C, Deiana S, Premoli A, Ciurli A. 1997. Redox activity of caffeic acid towards iron (III) complexed in a polygalacturonate network. Plant Soil, 190: 289-299.
[13]	Hammond J P, Broadley M R, White P J. 2004. Genetic responses to phosphorus deficiency. Ann Bot, 94(3): 323-332.
[14]	Hammond J P, Broadley M R, White P J, King G J, Bowen H C, Hayden R, Meacham M C, Mead A, Overs T, Spracklen W P, Greenwood D J. 2009. Shoot yield drives phosphorus use efficiency in Brassica oleracea and correlates with root architecture traits. J Exp Bot, 60(7): 1953-1968. PMID
[15]	Hasegawa K, Kamada S, Takehara S, Takeuchi H, Nakamura A, Satoh S, Iwai H. 2020. Rice putative methyltransferase gene OsPMT16 is required for pistil development involving pectin modification. Front Plant Sci, 11: 475. PMID
[16]	Horst W J, Kollmeier M, Schmohl N, Sivaguru M, Wang Y, Felle H H, Hedrich W R, Schröder W, Staß A. 2007. Significance of the root apoplast for aluminium toxicity and resistance of maize. In: Sattelmacher B, Horst W J. The Apoplast of Higher Plants:Compartment of Storage, Transport and Reactions. Dordrecht, Netherlands: Springer: 49-66.
[17]	Irfan M, Aziz T, Maqsood M A, Bilal H M, Siddique K H M, Xu M G. 2020. Phosphorus (P) use efficiency in rice is linked to tissue-specific biomass and P allocation patterns. Sci Rep, 10(1): 4278.
[18]	Kumar V, Vogelsang L, Schmidt R R, Sharma S S, Seidel T, Dietz K J. 2020. Remodeling of root growth under combined arsenic and hypoxia stress is linked to nutrient deprivation. Front Plant Sci, 11: 569687.
[19]	Li Z G, Zhang R H, Xia S J, Wang L, Liu C, Zhang R Q, Fan Z H, Chen F, Liu Y. 2019. Interactions between N, P and K fertilizers affect the environment and the yield and quality of satsumas. Glob Ecol Conserv, 19: e00663.
[20]	Livak K J, Schmittgen T D. 2001. Analysis of relative gene expression data using real-time quantitative PCR and the 2^-ΔΔCTmethod. Methods, 25(4): 402-408. PMID
[21]	Lynch J P, Brown K M. 2008. Root strategies for phosphorus acquisition. In: White P J, Hammond J P. The Ecophysiology of Plant-Phosphorus Interactions. Dordrecht, Netherlands: Springer: 83-116.
[22]	Marschner H. 1995. Mineral Nutrition of Higher Plants. San Diego, USA: Academic Press: 37.
[23]	Meguro R, Asano Y, Odagiri S, Li C T, Iwatsuki H, Shoumura K. 2007. Nonheme-iron histochemistry for light and electron microscopy: A historical, theoretical and technical review. Arch Histol Cytol, 70(1): 1-19. PMID
[24]	Micheli F. 2001. Pectin methylesterases: Cell wall enzymes with important roles in plant physiology. Trends Plant Sci, 6(9): 414-419. PMID
[25]	Moustacas A M, Nari J, Borel M, Noat G, Ricard J. 1991. Pectin methylesterase, metal ions and plant cell-wall extension: The role of metal ions in plant cell-wall extension. Biochem J, 279(2): 351-354.
[26]	Nagarajah S, Posner A M, Quirk J P. 1970. Competitive adsorption of phosphate with polygalacturonate and other organic anions on kaolinite and oxide surfaces. Nature, 228: 83-85.
[27]	Pammenter N W, Woolhouse H W. 1975. The utilization of P-N compounds by plants: II. The role of extracellular root phosphatases. Ann Bot, 39: 347-361.
[28]	Pelloux J, Rustérucci C, Mellerowicz E J. 2007. New insights into pectin methylesterase structure and function. Trends Plant Sci, 12(6): 267-277. PMID
[29]	Raghothama K G, Karthikeyan A S. 2005. Phosphate acquisition. Plant Soil, 274: 37.
[30]	Roschzttardtz H, Conéjéro G, Curie C, Mari S. 2009. Identification of the endodermal vacuole as the iron storage compartment in the Arabidopsis embryo. Plant Physiol, 151(3): 1329-1338. PMID
[31]	Schmohl N, Horst W J. 2000. Cell wall pectin content modulates aluminium sensitivity of Zea mays (L.) cells grown in suspension culture. Plant Cell Environ, 23(7): 735-742.
[32]	Sen S, Chakraborty R, Kalita P. 2020. Rice: Not just a staple food: A comprehensive review on its phytochemicals and therapeutic potential. Trends Food Sci Technol, 97: 265-285.
[33]	Solecka D, Zebrowski J, Kacperska A. 2008. Are pectins involved in cold acclimation and de-acclimation of winter oil-seed rape plants? Ann Bot, 101(4): 521-530.
[34]	Stacey M G, Patel A, McClain W E, Mathieu M, Remley M, Rogers E E, Gassmann W, Blevins D G, Stacey G. 2008. The Arabidopsis AtOPT3 protein functions in metal homeostasis and movement of iron to developing seeds. Plant Physiol, 146(2): 589-601.
[35]	Touhami D, McDowell R W, Condron L M. 2020. Role of organic anions and phosphatase enzymes in phosphorus acquisition in the rhizospheres of legumes and grasses grown in a low phosphorus pasture soil. Plants, 9: 1185.
[36]	Vance C P, Uhde-Stone C, Allan D L. 2003. Phosphorus acquisition and use: Critical adaptations by plants for securing a nonrenewable resource. New Phytol, 157(3): 423-447.
[37]	Wachananawat B, Kuroha T, Takenaka Y, Kajiura H, Naramoto S, Yokoyama R, Ishizaki K, Nishitani K, Ishimizu T. 2020. Diversity of pectin rhamnogalacturonan I rhamnosyltransferases in glycosyltransferase family 106. Front Plant Sci, 11: 997. PMID
[38]	Waldo G S, Wright E, Wang Z H, Briat J F, Theil E C, Sayers D E. 1995. Formation of the ferritin iron mineral occurs in plastids: An X-ray absorption spectroscopy study. Plant Physiol, 109: 797-802. PMID
[39]	Wei Y M, Han R R, Xie Y H, Jiang C D, Yu Y X. 2021. Recent advances in understanding mechanisms of plant tolerance and response to aluminum toxicity. Sustainability, 13(4): 1782.
[40]	Willats W G, McCartney L, Mackie W, Knox J P. 2001. Pectin: Cell biology and prospects for functional analysis. Plant Mol Biol, 47: 9-27. PMID
[41]	Wormit A, Usadel B. 2018. The multifaceted role of pectin methylesterase inhibitors (PMEIs). Int J Mol Sci, 19(10): 2878.
[42]	Wu H C, Bulgakov V P, Jinn T L. 2018. Pectin methylesterases: Cell wall remodeling proteins are required for plant response to heat stress. Front Plant Sci, 9: 1612.
[43]	Wu J J, Wang C, Zheng L Q, Wang L, Chen Y L, Whelan J, Shou H X. 2011. Ethylene is involved in the regulation of iron homeostasis by regulating the expression of iron-acquisition- related genes in Oryza sativa. J Exp Bot, 62(2): 667-674.
[44]	Xia J X, Yamaji N, Ma J F. 2013. A plasma membrane-localized small peptide is involved in rice aluminum tolerance. Plant J, 76(2): 345-355.
[45]	Yang J L, Zhu X F, Peng Y X, Zheng C, Li G X, Liu Y, Shi Y Z, Zheng S J. 2011. Cell wall hemicellulose contributes significantly to aluminum adsorption and root growth in Arabidopsis. Plant Physiol, 155(4): 1885-1892.
[46]	Yang J L, Chen W W, Chen L Q, Qin C, Jin C W, Shi Y Z, Zheng S J. 2013. The 14-3-3 protein GENERAL REGULATORY FACTOR11 (GRF11) acts downstream of nitric oxide to regulate iron acquisition in Arabidopsis thaliana. New Phytol, 197(3): 815-824.
[47]	Ye Y Q, Jin C W, Fan S K, Mao Q Q, Sun C L, Yu Y, Lin X Y. 2015. Elevation of NO production increases Fe immobilization in the Fe-deficiency roots apoplast by decreasing pectin methylation of cell wall. Sci Rep, 5: 10746.
[48]	Zhang H W, Huang Y, Ye X S, Shi L, Xu F S. 2009. Genotypic differences in phosphorus acquisition and the rhizosphere properties of Brassica napus in response to low phosphorus stress. Plant Soil, 320: 91-102.
[49]	Zhang X L, Wu Q, Tao Y, Zhu X F, Takahashi N, Umeda M, Shen R F, Ma J F. 2021. ANAC044 is associated with P reutilization in P deficient Arabidopsis thaliana root cell wall in an ethylene dependent manner. Environ Exp Bot, 185: 104386.
[50]	Zhang Y P, Wang J K, Wang Y L, Chen Y H, Zhu D F, Chen H Z, Xiang J, Zhang Y K, Liu X J, Zhu Y, Cao W X. 2020. Response of rice starch synthesis to night temperature changes. Chin J Rice Sci, 34(6): 525-538. (in Chinese with English abstract)
[51]	Zhu C Q, Zhu X F, Hu A Y, Wang C, Wang B, Dong X Y, Shen R F. 2016. Differential effects of nitrogen forms on cell wall phosphorus remobilization are mediated by nitric oxide, pectin content, and phosphate transporter expression. Plant Physiol, 171(2): 1407-1417.
[52]	Zhu C Q, Zhu X F, Wang C, Dong X Y, Shen R F. 2018. Nitrate inhibits the remobilization of cell wall phosphorus under phosphorus-starvation conditions in rice (Oryza sativa). Planta, 248: 185-196.
[53]	Zhu C Q, Hu W J, Cao X C, Zhu L F, Kong Y L, Jin Q Y, Shen G X, Wang W P, Zhang H, Zhang J H. 2021. Physiological and proteomic analyses reveal effects of putrescine-alleviated aluminum toxicity in rice roots. Rice Sci, 28(6): 579-593.
[54]	Zhu X F, Lei G J, Jiang T, Liu Y, Li G X, Zheng S J. 2012. Cell wall polysaccharides are involved in P-deficiency-induced Cd exclusion in Arabidopsis thaliana. Planta, 236(4): 989-997.
[55]	Zhu X F, Wang Z W, Wan J X, Sun Y, Wu Y R, Li G X, Shen R F, Zheng S J. 2015. Pectin enhances rice (Oryza sativa) root phosphorus remobilization. J Exp Bot, 66(3): 1017-1024.
[56]	Zhu X F, Zhu C Q, Zhao X S, Zheng S J, Shen R F. 2016. Ethylene is involved in root phosphorus remobilization in rice (Oryza sativa) by regulating cell-wall pectin and enhancing phosphate translocation to shoots. Ann Bot, 118(4): 645-653.
