Mitigating N2O and NO Emissions from Direct-Seeded Rice with Nitrification Inhibitor and Urea Deep Placement

doi:10.1016/j.rsci.2020.03.005

Abstract

Abstract:

Soil-emitted nitrous oxide (N₂O) and nitric oxide (NO) in crop production are harmful nitrogen (N) emissions that may contribute both directly and indirectly to global warming. Application of nitrification inhibitors, such as dicyandiamide (DCD), and urea deep placement (UDP), are considered effective approaches to reduce these emissions. This study investigated the effects of DCD and UDP, compared to urea and potassium nitrate, on emissions, nitrogen use efficiency and grain yields under direct-seeded rice. High-frequency measurements of N₂O and NO emissions were conducted using the automated closed chamber method throughout the crop-growing season and during the ratoon crop. Both UDP and DCD were effective in reducing N₂O emissions by 95% and 73%, respectively. The highest emission factor (1.53% of applied N) was observed in urea, while the lowest was in UDP (0.08%). Emission peaks were mainly associated with fertilization events and appeared within one to two weeks of fertilization. Those emission peaks contributed to 65%-98% of the total seasonal emissions. Residual effects of fertilizer treatments on the N₂O emissions from the ratoon crop were not significant; however, the urea treatment contributed 2%, whereas UDP contributed to 44% of the total annual emissions. On the other hand, cumulative NO emissions were not significant in either the rice or ratoon crops. UDP and DCD increased grain yields by 16%-19% and N recovery efficiency by 30%-40% over urea. The results suggested that the use of DCD and UDP could mitigate N₂O emissions and increase grain yields and nitrogen use efficiency under direct-seeded rice condition.

Key words: dicyandiamide, direct-seeded rice, nitric oxide, nitrification inhibitor, nitrogen use efficiency, nitrous oxide

Kanta Gaihre Yam, Singh Upendra, D. Bible Wendie, Fugice Jr Job, Sanabria Joaquin. Mitigating N₂O and NO Emissions from Direct-Seeded Rice with Nitrification Inhibitor and Urea Deep Placement[J]. Rice Science, 2020, 27(5): 434-444.

Figures/Tables 6

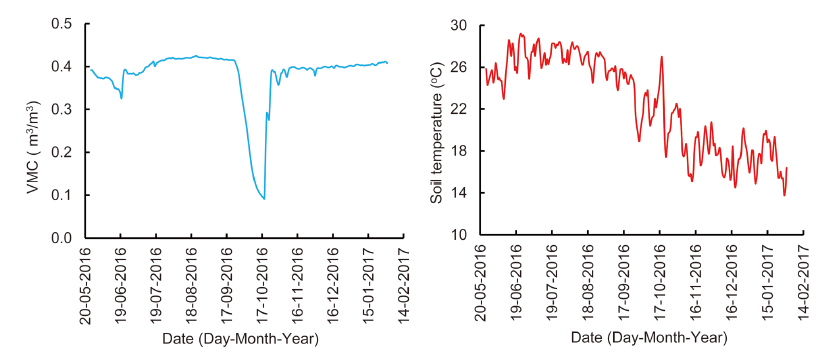

Fig. 1. Daily average of volumetric soil moisture content (VMC) and soil temperature at different fertilizer treatments during rice and ratoon-growing season.

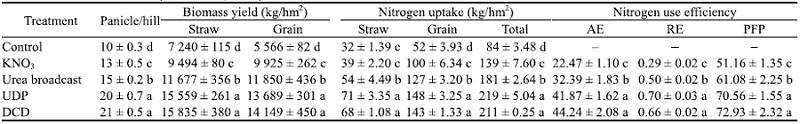

Table 1 Pairwise mean comparison of panicle, biomass yield, nitrogen uptake and nitrogen use efficiency of rice under different nitrogen fertilizer treatments (Mean ± SE, n = 3).

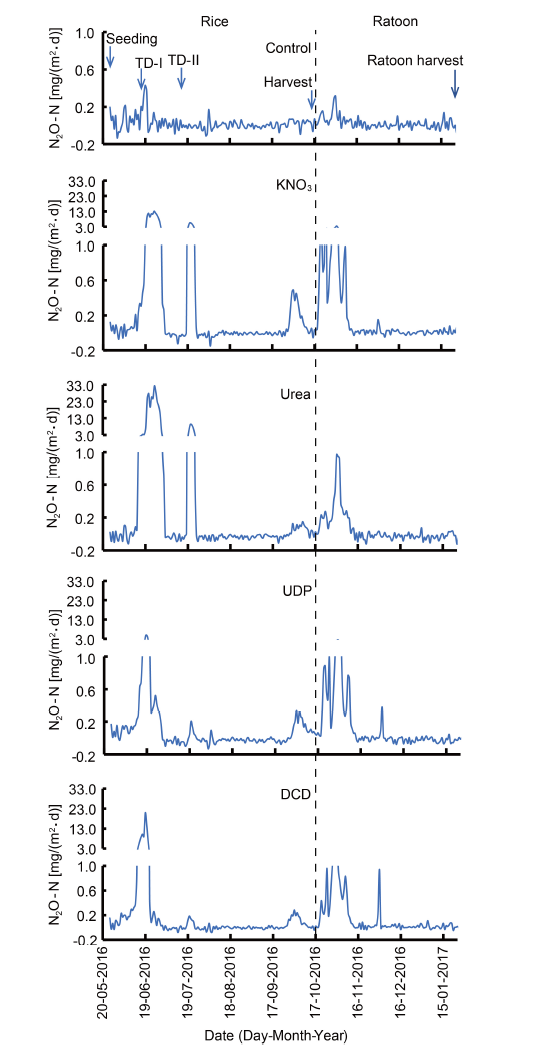

Fig. 2. Seasonal variations of N2O fluxes under different fertilizer treatments during rice and ratoon-growing season.TD-I and TD-II represent the first and second topdressing, respectively (n = 3). KNO3, Potassium nitrate; UDP, Urea deep placement; DCD, Urea dicyandiamide.

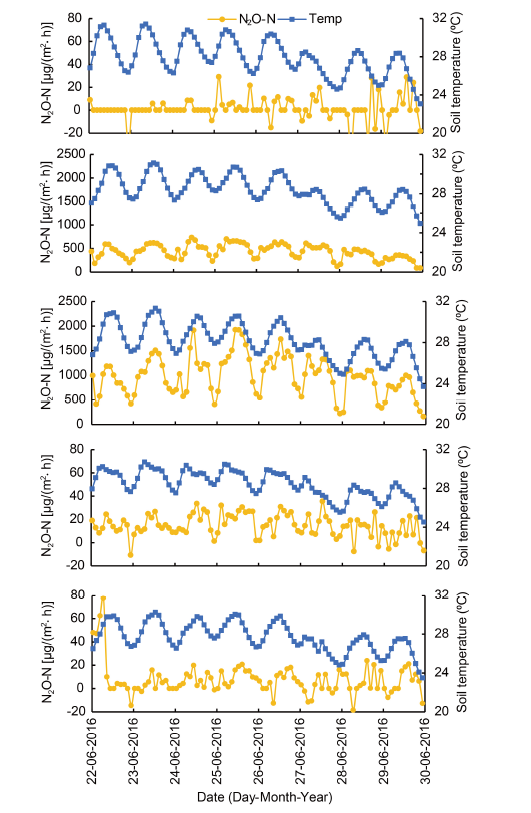

Fig. 3. Diel variations in N2O-N emissions and soil temperature after first topdressing of N fertilizers (n = 3).UDP, Urea deep placement; DCD, Urea dicyandiamide; KNO3, Potassium nitrate; Temp, Temperature.

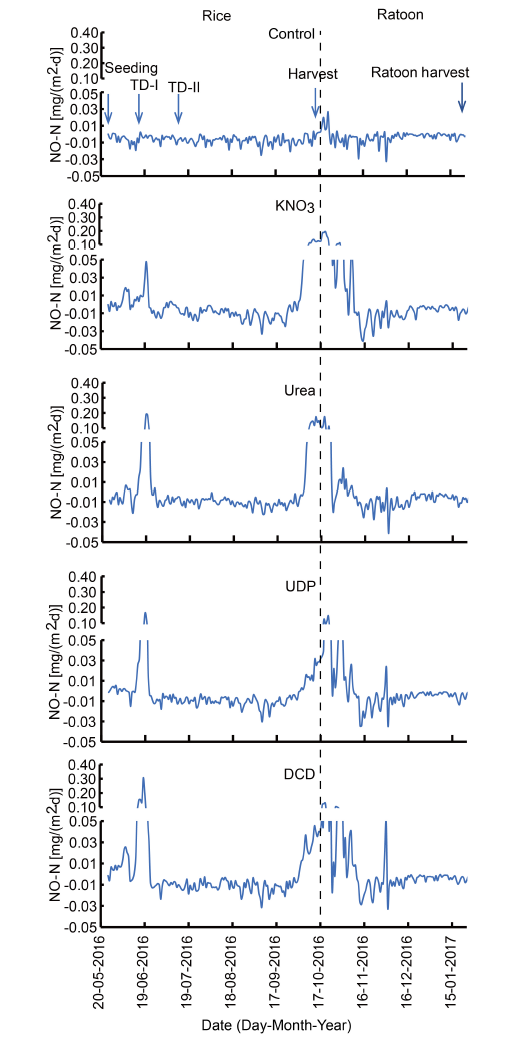

Fig. 4. Seasonal variations of NO fluxes under different fertilizer treatments during rice and ratoon-growing season.TD-I and TD-II represent the first and the second topdressing, respectively (n = 3). KNO3, Potassium nitrate; UDP, Urea deep placement; DCD, Urea dicyandiamide.

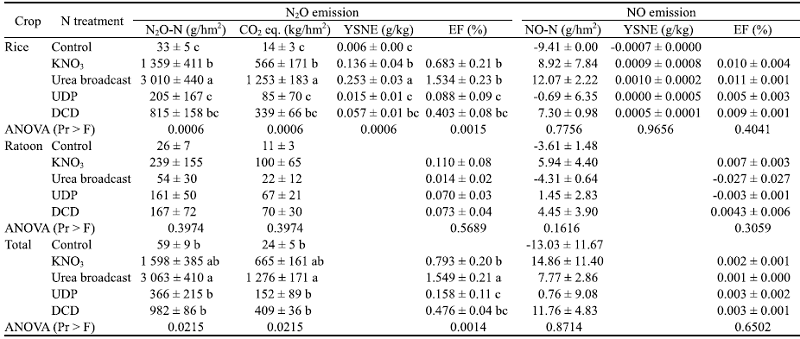

Table 2 Seasonal N2O and NO emissions and direct emission factors (EF) at all N fertilizer treatments (Mean ± SE, n = 3).

References 39

[1]	Akiyama H, Yagi K, Yan X Y.2005. Direct N2O emissions from rice paddy fields: Summary of available data. Glob Biogeochem Cycles, 19(1): GB1005.
[2]	Akiyama H, Yan X Y, Yagi K.2010. Evaluation of effectiveness of enhanced-efficiency fertilizers as mitigation options for N2O and NO emissions from agricultural soils: Meta-analysis. Glob Change Biol, 16(6): 1837-1846.
[3]	Bouwman A F, Boumans L J M, Batjes N H.2002. Emissions of N2O and NO from fertilized fields: Summary of available measurement data. Glob Biogeochem Cycles, 16(4): 1058.
[4]	Buresh R J, Reddy K R, van Kessel C. 2008. Nitrogen transformation in submerged soils. In: Schepers J S, Raun W R. Nitrogen in Agricultural Systems. Agronomy Monograph 49. Madison, USA: American Society of Agronomy: 401-436.
[5]	Firestone M K, Davidson E A.1989. Microbiological basis of NO and N2O production and consumption in soil. In: Andreae M O, Schimel D S. Exchange of Trace Gases Between Terrestrial Ecosystems and the Atmosphere. John Wiley and Sons, Chichester: 7-21.
[6]	Gaihre Y K, Singh U, Islam S M M, Huda A, Islam M R, Satter M A, Sanabria J, Islam Md R, Shah A L.2015. Impacts of urea deep placement on nitrous oxide and nitric oxide emissions from rice fields in Bangladesh. Geoderma, 259/260: 370-379.
[7]	Gaihre Y K, Singh U, Islam S M M, Huda A, Islam M R, Sanabria J, Satter M A, Islam Md R, Biswas J C, Jahiruddin M, Jahan Md S.2017. Nitrous oxide and nitric oxide emissions and nitrogen use efficiency as affected by nitrogen placement in lowland rice fields. Nutr Cycl Agroecosys, 110: 277-291.
[8]	Gaihre Y K, Bible W D, Singh U, Sanabria J.2019. Quantifying nitric oxide emissions under rice-wheat cropping systems. Environ Poll, 250: 856-862.
[9]	Hosen Y, Paisanchareoen K, Tsuruta H.2002. Effects of deep application of urea on NO and N2O emissions from an Andisol. Nutr Cycl Agroecosys, 63: 197-206.
[10]	Hou A X, Tsuruta H, McCreary M A, Hosen Y.2010. Effect of urea placement on the time-depth profiles of NO, N2O and mineral nitrogen concentrations in an Andisol during a Chinese cabbage growing season. Soil Sci Plant Nutr, 56(6): 861-869.
[11]	Hou A X, Chen G X, Wang Z P, van Cleemput O, Patrick Jr W H.2000. Methane and nitrous oxide emission from a rice field in relation to soil redox and microbial processes. Soil Sci Soc Am J, 64(6): 2180-2186.
[12]	Huang Y, Li D J.2014. Soil nitric oxide emissions from terrestrial ecosystems in China: A synthesis of modeling and measurements. Sci Rep, 4: 7406.
[13]	Huda A, Gaihre Y K, Islam M R, Singh U, Islam Md R, Sanabria J, Satter M A, Afroz H, Halder A, Jahiruddin M.2016. Floodwater ammonium, nitrogen use efficiency and rice yields with fertilizer deep placement and alternate wetting and drying under tipple rice cropping systems. Nutr Cycl Agroecosyst, 104: 53-66.
[14]	IPCC.2014. Climate change 2014: Synthesis report. Contribution of Working Groups I, II and III to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change. Geneva, Switzerland: IPCC
[15]	Islam S M M, Gaihre Y K, Biswas J C, Jahan Md S, Singh U, Adhikary S K, Satter M A, Saleque M A.2017. Different nitrogen rates and methods of application for dry season rice cultivation with alternate wetting and drying irrigation: Fate of nitrogen and grain yield. Agric Water Manag, 196: 144-153.
[16]	Kapoor V, Singh U, Patil S K, Magre H, Shrivastava L K, Mishra V N, Das R O, Samadhiya V K, Sanabria J, Diamond R.2008. Rice growth, grain yield, and floodwater nutrient dynamics as affected by nutrient placement method and rate. Agron J, 100(3): 526-536.
[17]	Kim D G, Hernandez-Ramirez G, Giltrap D.2013. Linear and nonlinear dependency of direct nitrous oxide emissions on fertilizer nitrogen input: A meta-analysis. Agric Ecosyst Environ, 168: 53-65.
[18]	Kumar U, Jain M C, Pathak H, Kumar S, Majumdar D.2000. Nitrous oxide emission from different fertilizers and its mitigation by nitrification inhibitors in irrigated rice. Biol Fert Soils, 23(6): 474-478.
[19]	Lan T, Han Y, Roelcke M, Nieder R, Cai Z C.2013. Effects of the nitrification inhibitor dicyandiamide (DCD) on gross N transformation rates and mitigating N2O emission in paddy soils. Soil Biol Biochem, 67: 174-182.
[20]	Laville P, Lehuger S, Loubet B, Chaumartin F, Cellier P.2011. Effect of management, climate and soil conditions on N2O and NO emissions from an arable crop rotation using high temporal resolution measurements. Agric Forest Meteorol, 151(2): 228-240.
[21]	Li T Y, Zhang W F, Yin J, Chadwick D, Norse D, Lu Y L, Liu X J, Chen X P, Zhang F S, Powlson D, Dou Z X.2018. Enhanced- efficiency fertilizers are not a panacea for resolving the nitrogen problem. Glob Change Biol, 24(2): e511-e521.
[22]	Linquist B A, Liu L J, van Kessel C, van Groenigen K J.2013. Enhanced efficiency nitrogen fertilizers for rice systems: Meta-analysis of yield and nitrogen uptake. Field Crops Res, 154: 246-254.
[23]	Liu S W, Zhang Y J, Lin F, Zhang L, Zou J W.2014. Methane and nitrous oxide emissions from direct-seeded and seedling-transplanted rice paddies in southeast China. Plant Soil, 374: 285-297.
[24]	Majumdar D, Kumar S, Pathak H, Jain M C, Kumar U.2000. Reducing nitrous oxide emissions from an irrigated rice field of North India with nitrification inhibitors. Agric Ecosyst Environ, 81(3): 163-169.
[25]	Mishra A K, Khanal A R, Pede V O.2017. Is direct seeded rice a boon for economic performance? Empirical evidence from India. Food Policy, 73: 10-18.
[26]	Pang X B, Mu Y J, Lee X Q, Fang S X, Yuan J, Huang D K.2009. Nitric oxides and nitrous oxide fluxes from typical vegetables cropland in China: Effects of canopy, soil properties and field management. Atmospheric Environ, 43(16): 2571-2578.
[27]	Ravishankara A R, Daniel J S, Portmann R W.2009. Nitrous oxide (N2O): The dominant ozone-depleting substance emitted in the 21st Century. Science, 326: 123-125.
[28]	Recio J, Vallejo A, Le-Noe J, Garnier J, Garcia-Marco S, Alvarez J M, Sanz-Cobena A.2018. The effect of nitrification inhibitors on NH3 and N2O emissions in highly N fertilized irrigated Mediterranean cropping system. Sci Total Environ, 636: 427-436.
[29]	Rochette P, Angers D A, Chantigny M H, Gasser M O, MacDonald J D, Pelster D E, Bertrand N.2013. Ammonia volatilization and nitrogen retention: How deep to incorporate urea? J Environ Qual, 42: 1635-1642.
[30]	Sander B O, Samson M, Buresh R J.2014. Methane and nitrous oxide emissions from flooded rice fields as affected by water and straw management between rice crops. Geoderma, 235/236: 355-362.
[31]	Scheer C, Rowlings D, Firrell M, Deuter P, Morris S, Riches D, Porter I, Grace P.2017. Nitrification inhibitors can increase post-harvest nitrous oxide emissions in an intensive vegetable production system. Sci Rep, 7: 43677.
[32]	Singh U, Cassman K G, Ladha J K, Bronson K F. 1995. Innovative nitrogen management strategies for lowland rice systems. In: Fragile Lives in Fragile Ecosystems: Proceedings of the International Rice Research Conference. Manila, the Philippines: International Rice Research Institute: 229-254.
[33]	Tian D, Zhang Y Y, Zhou Y Z, Mu Y J, Liu J F, Zhang C L, Liu P F.2017. Effect of nitrification inhibitors on mitigating N2O and NO emissions from an agricultural field under drip fertigation in the North China plain. Sci Total Environ, 598: 87-96.
[34]	Tian Z, Wang J J, Liu S, Zhang Z Q, Dodla S K, Myers G.2015. Application effects of coated urea and urease and nitrification inhibitors on ammonia and greenhouse gas emissions from a subtropical cotton field of the Mississippi delta region. Sci Total Environ, 533: 329-338.
[35]	van Kessel C, Venterea R, Six J, Adviento-Borbe M A, Linquist B, van Groenigen K J.2013. Climate, duration, and N placement determine N2O emissions in reduced tillage systems: a meta-analysis. Glob Change Biol, 19(1): 33-44.
[36]	Venterea R T, Halvorson A D, Kitchen N, Liebig M A, Cavigelli M A, Grosso S J D, Motavalli P P, Nelson K A, Spokas K A, Singh B P, Stewart C E, Ranaivoson A, Strock J, Collins H.2012. Challenges and opportunities for mitigating nitrous oxide emissions from fertilized cropping systems. Front Ecol Environ, 10(10): 562-570.
[37]	Yang M, Fang Y T, Sun D, Shi Y L.2016. Efficiency of two nitrification inhibitors (dicyandiamide and 3,4-dimethypyrazole phosphate) on soil nitrogen transformations and plant productivity: A meta-analysis. Sci Rep, 6: 22075.
[38]	Yao T, Chen Q, Peng S B, Wang W Q, Nie L X.2016. Lower global warming potential and higher yield of wet direct-seeded rice in Central China. Agron Sustain Dev, 36: 24.
[39]	Yao Z S, Zheng X H, Zhang Y N, Liu C Y, Wang R, Lin S, Zuo Q, Butterbach-Bahl K.2017. Urea deep placement reduces yield- scaled greenhouse gas (CH4 and N2O) and NO emissions from a ground cover rice production system. Sci Rep, 7: 11415.
